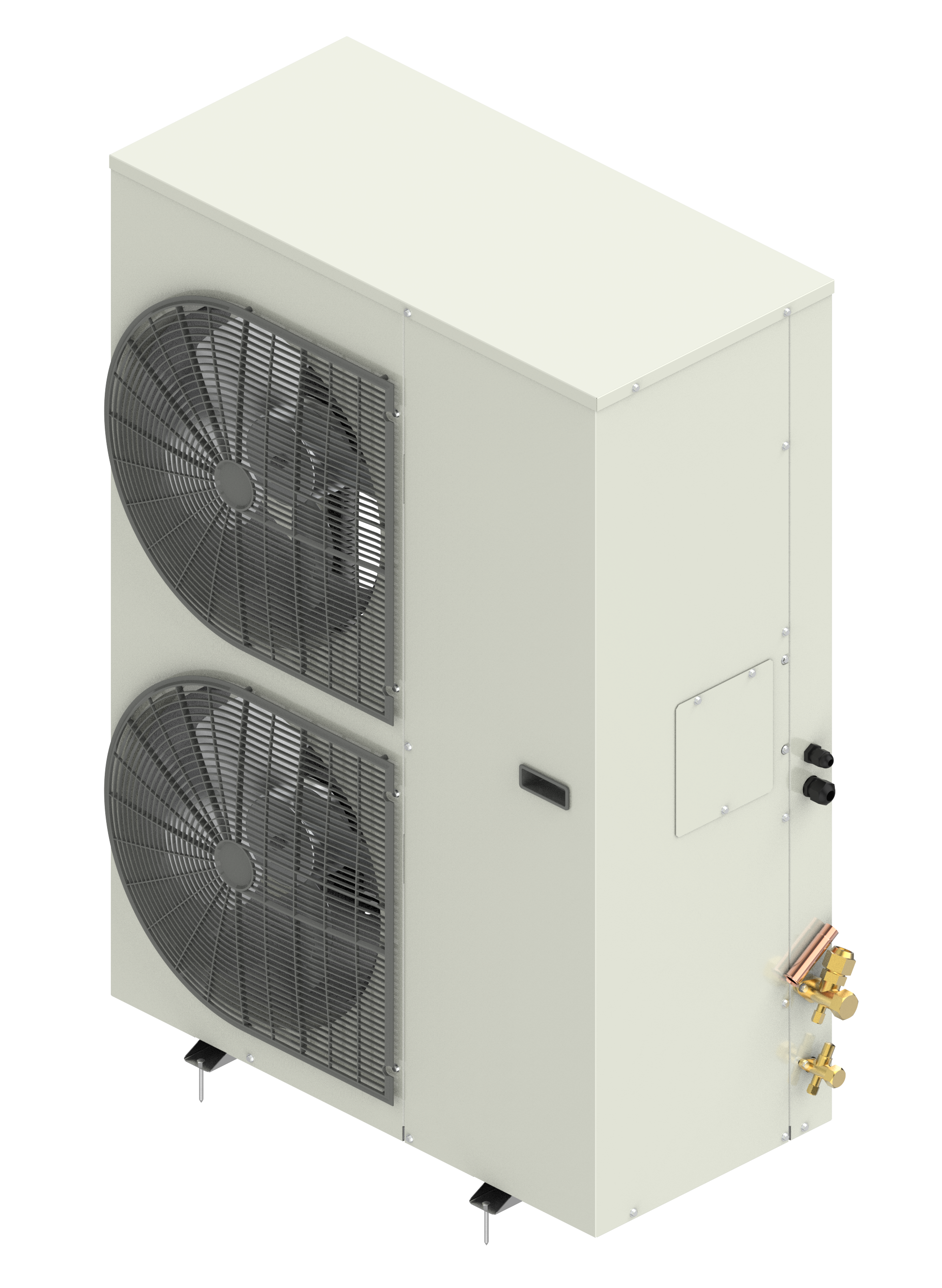

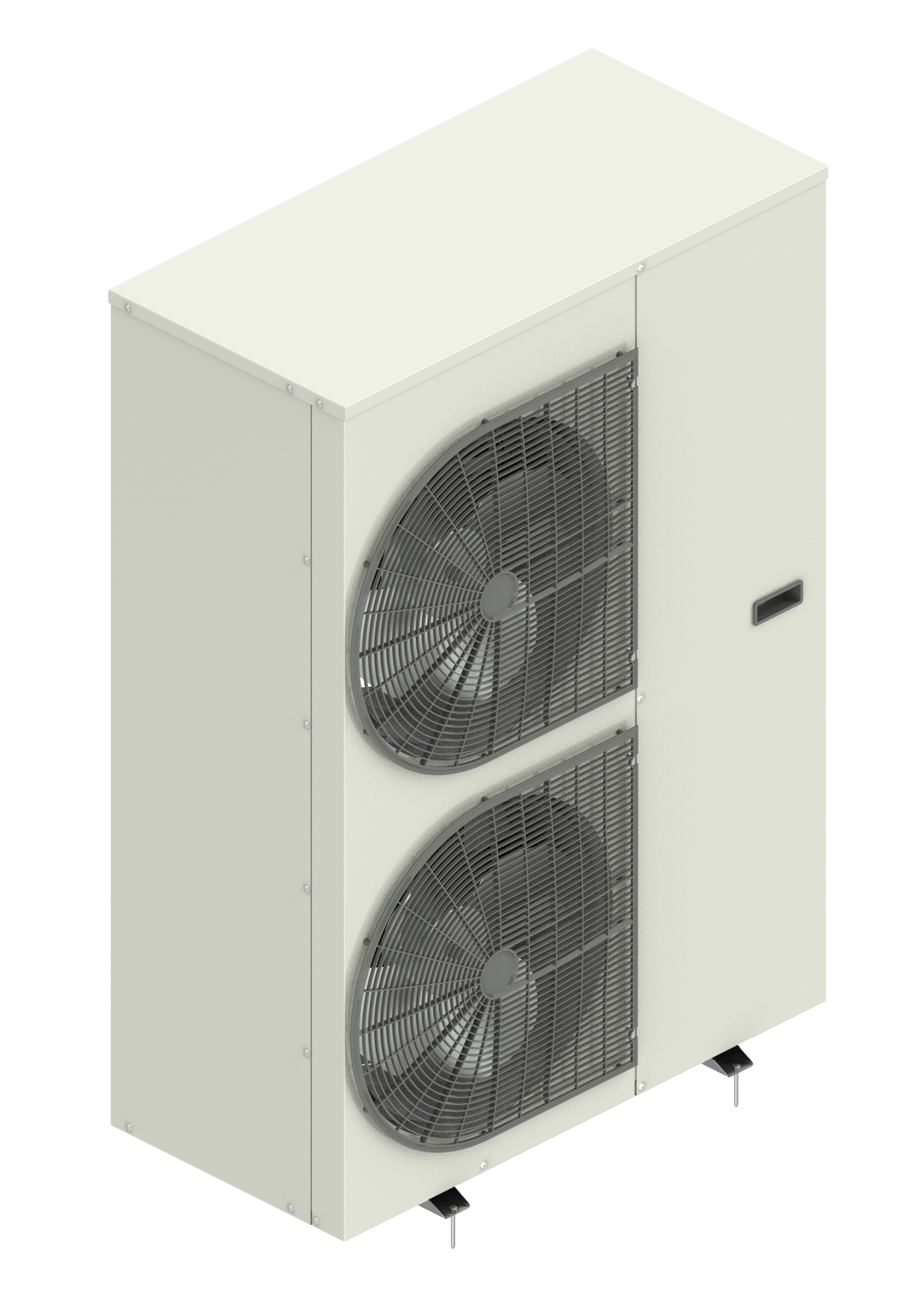

115F0676

Part Number: 115F0676
115F0676
Manufacturer
Danfoss
Part number
115F0676
Category

Product Information

Extended Description

115F0676 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R134a; R513A; R22; R448A; R449A, Compressor power supply [V]: 220/3/60
Gross weight
127 Kilogram
Net weight
117 Kilogram
Volume
0.77 Cubic meter
Air flow @ 60Hz [mÂł/h]
7200 mÂł/h
Applications
MBP
Compressor model
MLZ038-2
Compressor power supply [V]
220/3/60
Condenser type
C4
Contain batteries
No
Description
HPUS038D20Q
Electrical code
Q
Family
Optyma™ Slim Pack
Fan current @ 60Hz [A]
1.94 A
Fan diameter [mm]
450 mm
Fan power consumption @ 60Hz [W]
130 W
Fan power output @ 60Hz [W]
260 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
200 V
Model number
HPUS038D20Q
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
2
Phase
3
Product group
Condensing Units
Product Name Description
Package unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R22,R404A,R448A,R449A,R452A,R513A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Technology
Scroll
Type
Optyma™ Slim Pack D20
Version
D20
119-7401E
Fan system, Fan motor
120Z5034
Lubricant, 320HV
191U13942E
Fan system, Fan blade
193U0592E
Condenser, C4
118U3985E
Fan system, Fan grill
120Z0585
Electrical component, Motor protection module
014L0174
SGP 16 N, Sight glass, Flare, 16.00 mm, Flare, 16.00 mm
023Z5045
Hermetic filter drier, DML, 16 cu.in., Steel
061F6067
Cartridge pressure switch, ACB, 26.50 bar, 20.50 bar
Convenience Store_CU Brochure Optyma™ Slim Pack - 60Hz & Optyma™ INVERTER – 50Hz / 60Hz Instructions - Optyma™ Slim Pack OP-HPMP/HPZP/HPUS/LPZP/LPZS - LAM Condensers HPZP050 & HPZP064 & HPMP050 & HPMP064 & LPUS013 & LPUS015 & LPUS018 & HPUS026 & HPUS030 & HPUS038 D20 HPZP050 & HPZP064 & HPMP050 & HPMP064 & LPUS013 & LPUS015 & LPUS018 & HPUS026 & HPUS030 & HPUS038 D20 HPUS026 HPUS030 HPUS038 HPMP/HPZP050 HPMP/HPZP064 D20 Optyma Slim pack LAM family HPZP050 & HPZP064 & HPMP050 & HPMP064 & LPUS013 & LPUS015 & LPUS018 & HPUS026 & HPUS030 & HPUS038 D20
