115F0868

Part Number: 115F0868
115F0868
Manufacturer
Danfoss
Part number
115F0868
Category

Product Information

Extended Description

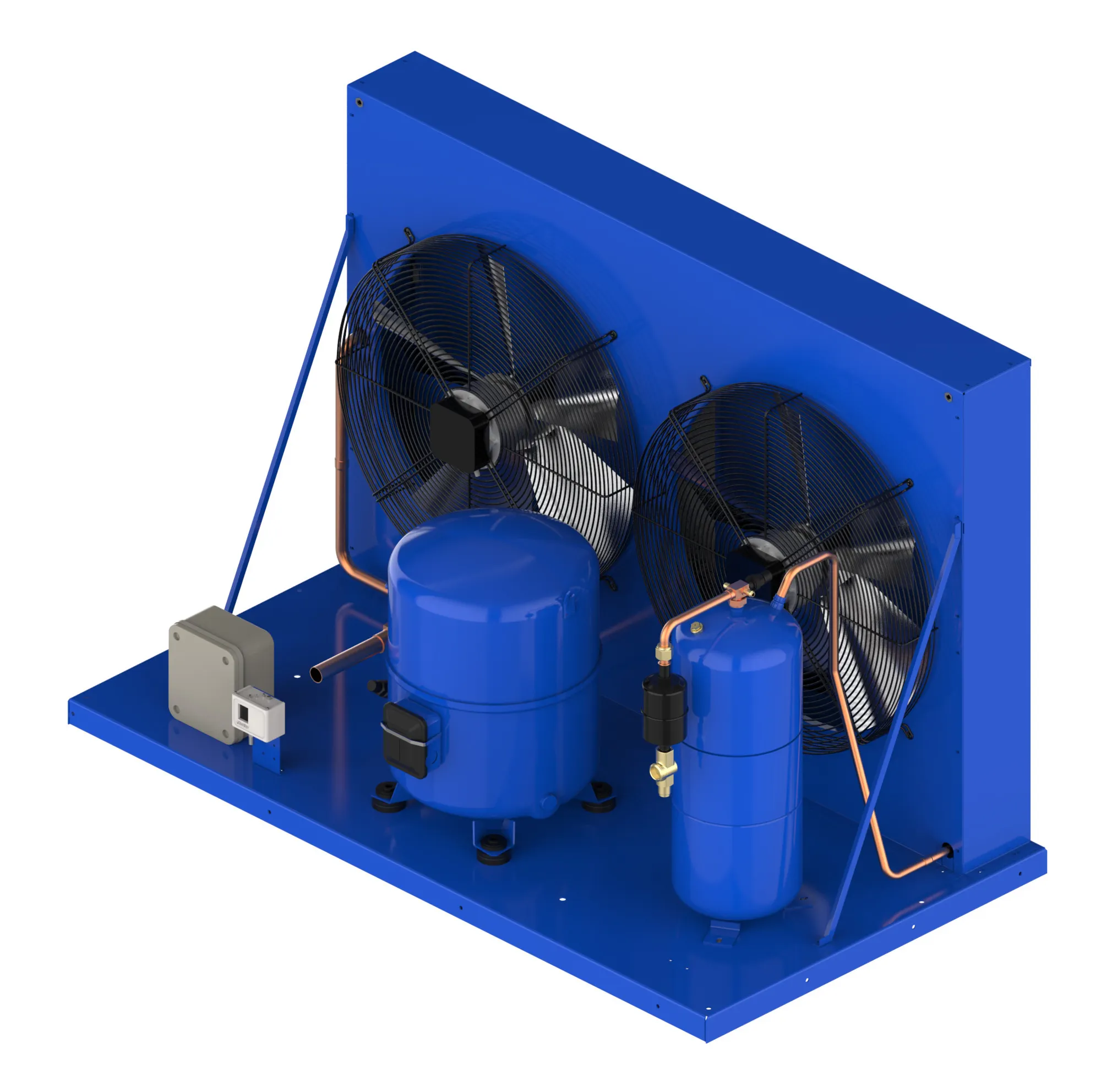

115F0868 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R22, Compressor power supply [V]: 400/3/50
Gross weight
243 Kilogram
Net weight
225 Kilogram
Volume
1544.4 Liter
Air flow @ 60Hz [m³/h]
13980 m³/h
Applications
MBP
Compressor model
MT125-4
Compressor power supply [V]
400/3/50
Condenser type
Q8
Contain batteries
No
Description
OP-HGM125D20E
Electrical code
E
Family
Optyma™
Fan current @ 50Hz [A]
3.5 A
Fan diameter [mm]
600 mm
Fan power consumption @ 50Hz [W]
500 W
Fan power consumption @ 60Hz [W]
600 W
Fan power supply [V/Ph/Hz]
230/1/50
Frequency [Hz]
50/60 Hz
High value of nominal voltage at 50Hz [V]
415 V
High value of nominal voltage at 60Hz [V]
460 V
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
460 V
Model number
OP-HGM125D20E
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
2
Phase
3
Product group
Condensing Units
Product Name Description
Bare unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R22
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ D20
Version
D20
118U6015
Tank, Receiver
120Z0459
Crankcase heater, PTC heater
191U006610
Tank, Accumulator
191U007810
Tank, Oil separator
191U127867
Connector, Kit housing
191U9907
Miscellaneous, Filter
193U8025E
Condenser, Q8
6804503V04
Connector, Service valve
6804506V02
Connector, Service valve
7754001
Lubricant, 160P
Condensing unit OPTYMA™ Lighter and more compact, fast installation and simple maintenance Lighter and more compact Fast installation and easy maintenance OPTYMA™ Condensing Units - 50HZ Condensing Unit Optyma™ Condensers HGM/Z125 & HGM/Z144 & HGM/Z160 D20 HGM/Z125 & HGM/Z144 & HGM/Z160 D20 HGM/Z100 D20 Condensing Unit - Optyma Commercial 1 - BR HGM/Z125 & HGM/Z144 & HGM/Z160 D20 HGM/Z125 & HGM/Z144 & HGM/Z160 D20 HGM/Z125 & HGM/Z144 & HGM/Z160 D20 HGM/Z125 & HGM/Z144 & HGM/Z160 D20 HGM/Z125 & HGM/Z144 & HGM/Z160 D20
