115F0871

Part Number: 115F0871
115F0871
Manufacturer
Danfoss
Part number
115F0871
Category

Product Information

Extended Description

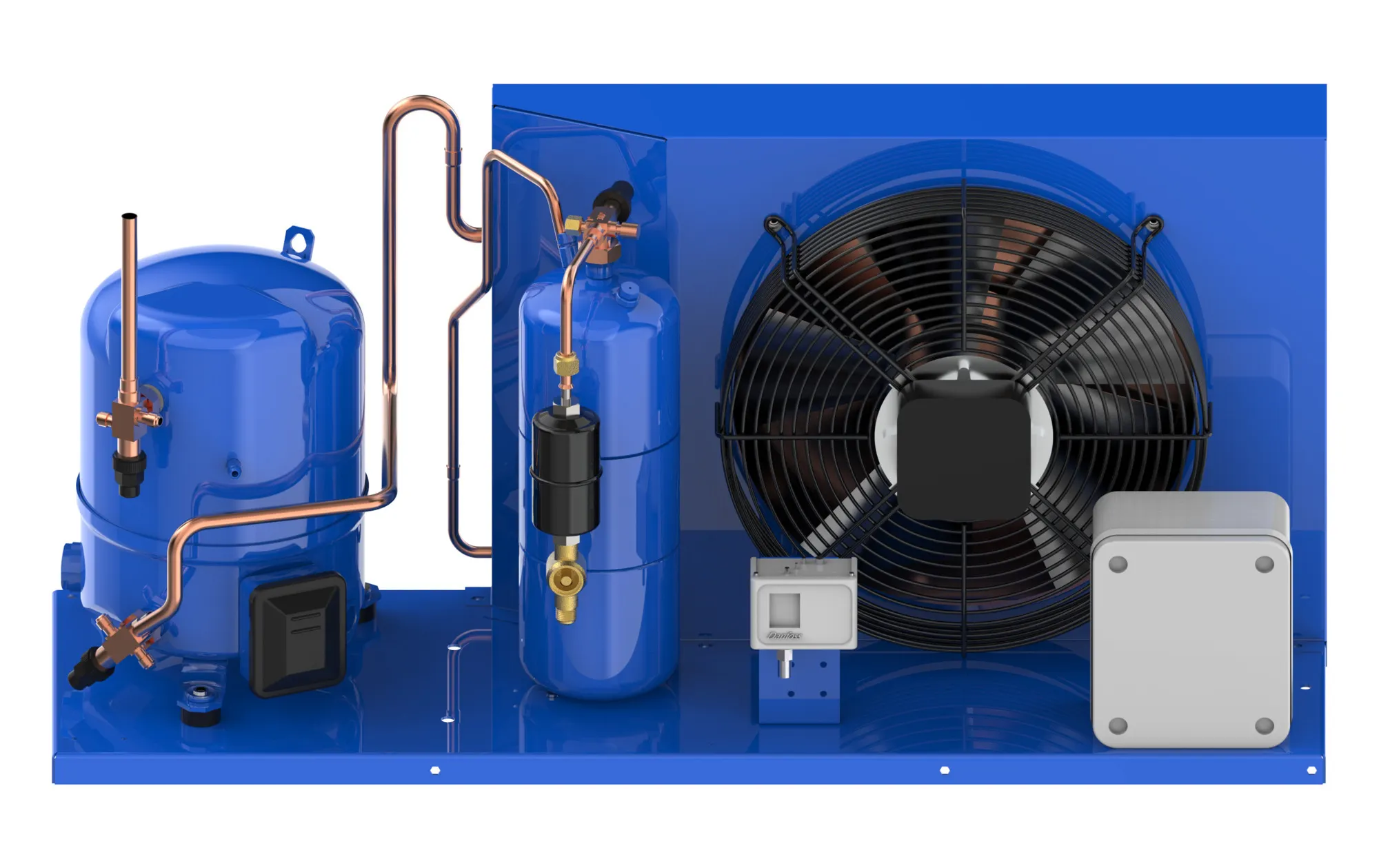

115F0871 Danfoss: Segment usage: High Back Pressure; Medium Back Pressure, Refrigerants: R404A; R407C; R452A; R134a; R513A; R448A; R449A, Compressor power supply [V]: 230/1/50
Gross weight
55 Kilogram
Net weight
50 Kilogram
Volume
263.56 Liter
Air flow @ 60Hz [m³/h]
2400 m³/h
Applications
HBP,MBP
Compressor model
MTZ019-5
Compressor power supply [V]
230/1/50
Condenser type
D8
Contain batteries
No
Description
OP-HJZ019D20G
Electrical code
G
Family
Optyma™
Fan current @ 50Hz [A]
1.1 A
Fan diameter [mm]
355 mm
Fan power consumption @ 50Hz [W]
200 W
Fan power consumption @ 60Hz [W]
240 W
Fan power supply [V/Ph/Hz]
230/1/50
Frequency [Hz]
50 Hz
High value of nominal voltage at 60Hz [V]
240 V
Low value of voltage range at 60Hz [V]
220 V
Model number
OP-HJZ019D20G
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
1
Phase
1
Product group
Condensing Units
Product Name Description
Bare unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R404A,R407C,R448A,R449A,R452A,R513A
Segment usage
Medium Back Pressure,High Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ D20
Version
D20
118U600908
Tank, Receiver
119-8453A
Electrical component, Starting relay
120Z0459
Crankcase heater, PTC heater
120Z0638
Lubricant, 175PZ
191U006010
Tank, Accumulator
191U007610
Tank, Oil separator
191U127367
Connector, Kit housing
191U9905
Miscellaneous, Filter
6804500V01
Connector, Service valve
6804501V06
Connector, Service valve
Condensing unit OPTYMA™ Lighter and more compact, fast installation and simple maintenance Lighter and more compact Fast installation and easy maintenance OPTYMA™ Condensing Units - 50HZ Condensing Unit Optyma™ Condensers HJM/Z019 & HJM/Z022 & LJZ048 & LJZ068 D20 HJM/Z019 D20 Condensing Unit - Optyma Commercial 1 - BR HJM/Z019 & HJM/Z022 & LJZ048 & LJZ068 D20 HJM/Z019 & HJM/Z022 & LJZ048 & LJZ068 D20 HJM/Z019 & HJM/Z022 & LJZ048 & LJZ068 D20 HJM/Z019 & HJM/Z022 & LJZ048 & LJZ068 D20 HJM/Z019 & HJM/Z022 & LJZ048 & LJZ068 D20 HJM/Z019 & HJM/Z022 & LJZ048 & LJZ068 D20 HJM/Z019 & HJM/Z022 & LJZ048 & LJZ068 D20
