115F0888

Part Number: 115F0888
115F0888
Manufacturer
Danfoss
Part number
115F0888
Category

Product Information

Extended Description

115F0888 Danfoss: Segment usage: High Back Pressure; Medium Back Pressure, Refrigerants: R404A; R452A; R134a; R513A; R448A; R449A, Compressor power supply [V]: 400/3/50
Gross weight
153 Kilogram
Net weight
144 Kilogram
Volume
1544.4 Liter
Air flow @ 60Hz [m³/h]
8800 m³/h
Applications
HBP,MBP
Compressor model
MTZ100-4
Compressor power supply [V]
400/3/50
Condenser type
N8
Contain batteries
No
Description
OP-HGZ100D20E
Electrical code
E
Family
Optyma™
Fan current @ 50Hz [A]
2.6 A
Fan diameter [mm]
457 mm
Fan power consumption @ 50Hz [W]
375 W
Fan power consumption @ 60Hz [W]
450 W
Fan power supply [V/Ph/Hz]
230/1/50
Frequency [Hz]
50/60 Hz
High value of nominal voltage at 50Hz [V]
415 V
High value of nominal voltage at 60Hz [V]
460 V
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
460 V
Model number
OP-HGZ100D20E
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
2
Phase
3
Product group
Condensing Units
Product Name Description
Bare unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R404A,R448A,R449A,R452A,R513A
Segment usage
Medium Back Pressure,High Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ D20
Version
D20
118U6014
Tank, Receiver
120Z0459
Crankcase heater, PTC heater
120Z0638
Lubricant, 175PZ
191U006410
Tank, Accumulator
191U007710
Tank, Oil separator
191U0645E
Condenser, G7
191U127767
Connector, Kit housing
191U9907
Miscellaneous, Filter
6804503V04
Connector, Service valve
6804506V02
Connector, Service valve

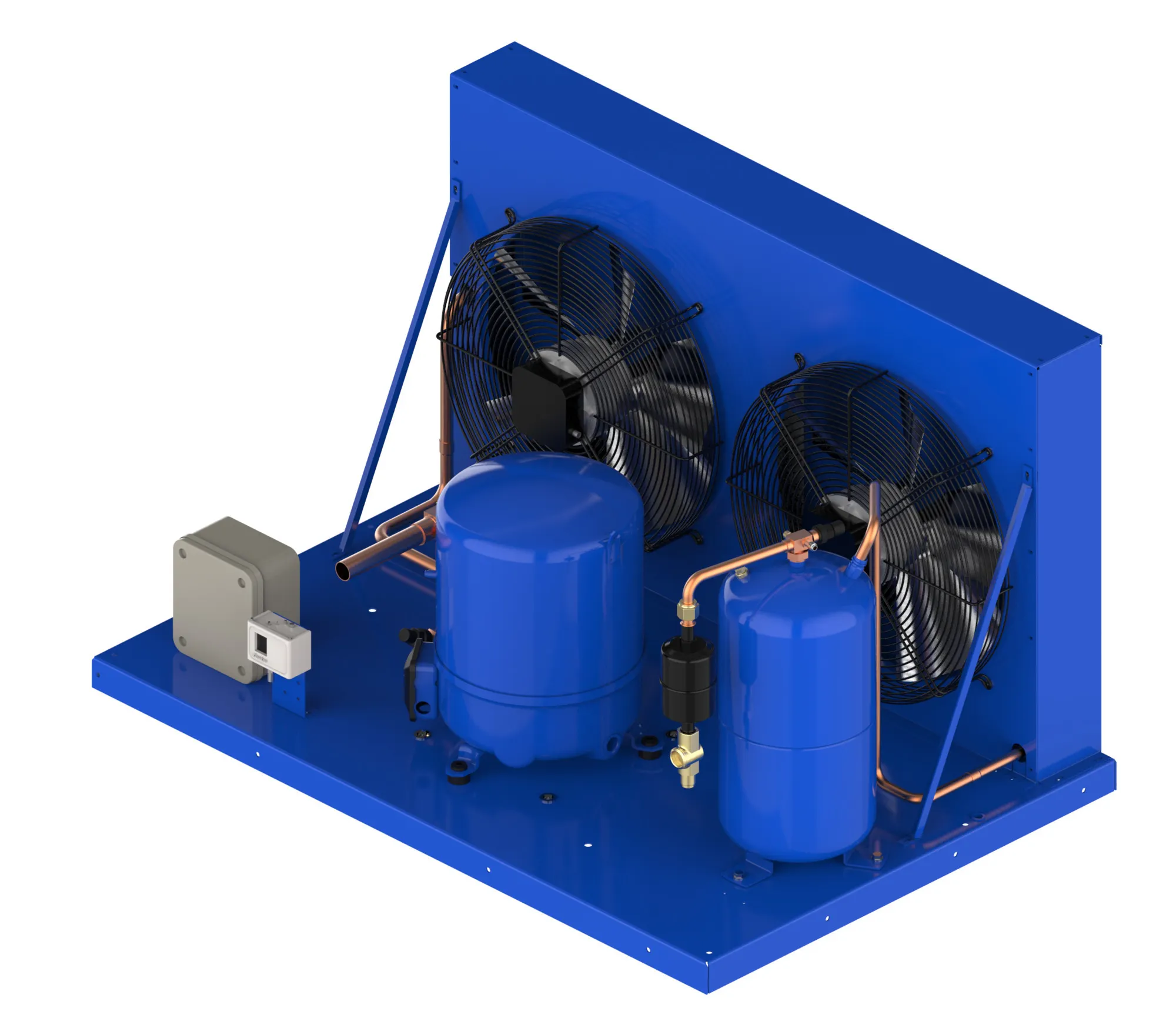

Condensing unit OPTYMA™ Lighter and more compact, fast installation and simple maintenance Lighter and more compact Fast installation and easy maintenance OPTYMA™ Condensing Units - 50HZ Condensing Unit Optyma™ Condensers HGM/Z072 & HGM/Z080 & HGM/Z100 D20 HGM/Z072 & HGM/Z080 & HGM/Z100 D20 HGM/Z100 D20 Condensing Unit - Optyma Commercial 1 - BR HGM/Z072 & HGM/Z080 & HGM/Z100 D20 HGM/Z072 & HGM/Z080 & HGM/Z100 D20 HGM/Z072 & HGM/Z080 & HGM/Z100 D20 HGM/Z072 & HGM/Z080 & HGM/Z100 D20 HGM/Z072 & HGM/Z080 & HGM/Z100 D20
