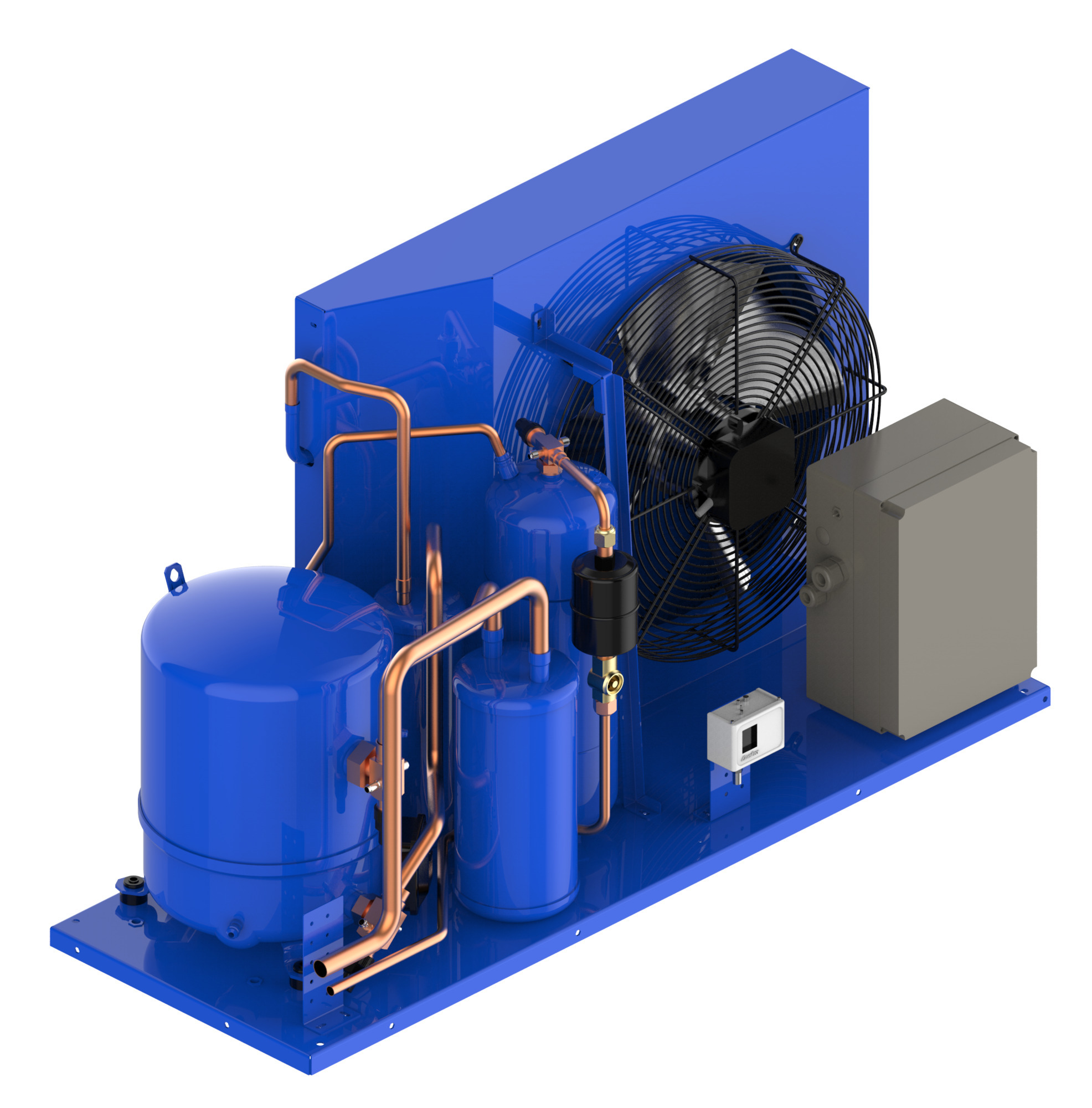

115F0896

Part Number: 115F0896
115F0896
Manufacturer
Danfoss
Part number
115F0896
Category

Product Information

Extended Description

115F0896 Danfoss: Segment usage: Low Back Pressure, Refrigerants: R404A; R452A, Compressor power supply [V]: 400/3/50
Gross weight
115 Kilogram
Net weight
102 Kilogram
Air flow @ 60Hz [mÂł/h]
6300 mÂł/h
Applications
LBP
Capacity control
Fixed speed
Compressor model
NTZ136-4
Compressor power supply [V]
400/3/50
Condenser type
J8
Contain batteries
No
Description
OP-LJZ136D49E
Electrical code
E
Family
Optyma™
Fan current @ 50Hz [A]
2.6 A
Fan diameter [mm]
457 mm
Fan power consumption @ 50Hz [W]
375 W
Fan power consumption @ 60Hz [W]
450 W
Fan power supply [V/Ph/Hz]
230/1/50
Frequency [Hz]
50/60 Hz
High value of nominal voltage at 50Hz [V]
415 V
High value of nominal voltage at 60Hz [V]
460 V
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
460 V
Model number
OP-LJZ136D49E
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Bare unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R404A,R452A
Segment usage
Low Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ D49
Version
D49
118U601108
Tank, Receiver
120Z0459
Crankcase heater, PTC heater
120Z0638
Lubricant, 175PZ
191U006310
Tank, Accumulator
191U007710
Tank, Oil separator
191U0644E
Condenser, J8
191U127667
Connector, Kit housing
191U9907
Miscellaneous, Filter
6804501V06
Connector, Service valve
6804502V09
Connector, Service valve
Condensing unit OPTYMA™ Lighter and more compact, fast installation and simple maintenance Lighter and more compact Fast installation and easy maintenance OPTYMA™ Condensing Units - 50HZ Optyma™ Semi-Hermetic Cool down with high efficiency for the better food conservation Condensing Unit Optyma™ Condensers HJM/Z040 & HJM/Z044 & HJM/Z050 & HJM/Z056 & HJM/Z064 & LJZ108 & LJZ136 D49 HJM/Z040 & HJM/Z044 & HJM/Z050 & HJM/Z056 & HJM/Z064 & LJZ108 & LJZ136 D49 Condensing Unit - Optyma Commercial 1 - BR HJM/Z040 & HJM/Z044 & HJM/Z050 & HJM/Z056 & HJM/Z064 & LJZ108 & LJZ136 D49 HJM/Z040 & HJM/Z044 & HJM/Z050 & HJM/Z056 & HJM/Z064 & LJZ108 & LJZ136 D49 HJM/Z040 & HJM/Z044 & HJM/Z050 & HJM/Z056 & HJM/Z064 & LJZ108 & LJZ136 D49 HJM/Z040 & HJM/Z044 & HJM/Z050 & HJM/Z056 & HJM/Z064 & LJZ108 & LJZ136 D49 HJM/Z040 & HJM/Z044 & HJM/Z050 & HJM/Z056 & HJM/Z064 & LJZ108 & LJZ136 D49
