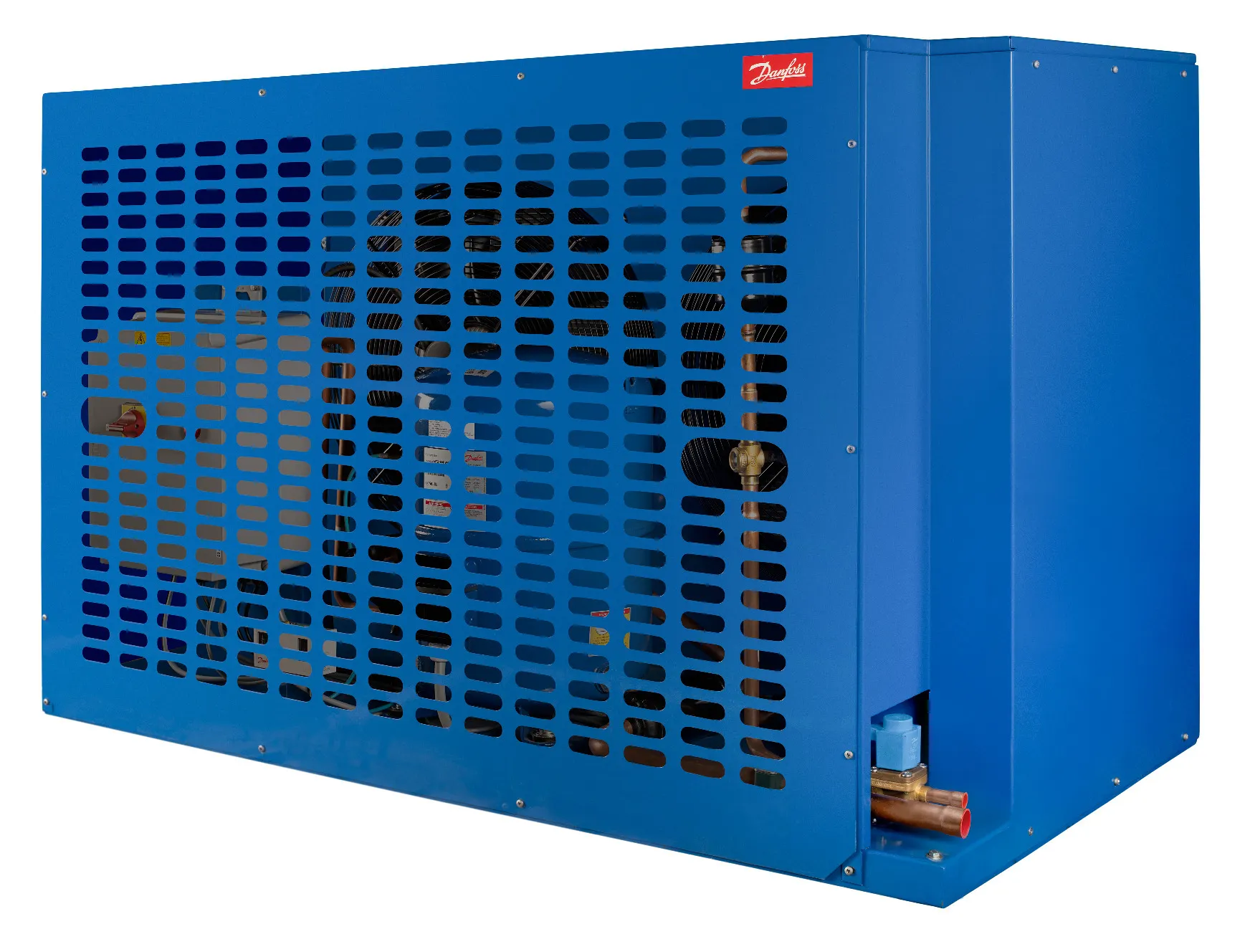

115F0904
Part Number: 115F0904
Product Information
Extended Description
115F0904 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A, Compressor power supply [V]: 400/3/50
Gross weight
262 Kilogram
Net weight
244 Kilogram
Air flow @ 60Hz [mÂł/h]
13980 mÂł/h
Applications
HBP,MBP
Compressor model
MTZ144-4
Compressor power supply [V]
400/3/50
Condenser type
Q8
Contain batteries
No
Description
OP-HGZ144D48E
Electrical code
E
Family
Optyma™
Fan current @ 50Hz [A]
3.5 A
Fan diameter [mm]
600 mm
Fan power consumption @ 50Hz [W]
500 W
Fan power supply [V/Ph/Hz]
230/1/50
Frequency [Hz]
50/60 Hz
High value of nominal voltage at 50Hz [V]
415 V
High value of nominal voltage at 60Hz [V]
460 V
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
460 V
Model number
OP-HGZ144D48E
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
2
Phase
3
Product group
Condensing Units
Product Name Description
Bare unit
Refrigerants
R404A
Segment usage
Medium Back Pressure
Technology
Reciprocating
Type
Optyma™ D48
Version
D48
120Z0638
Lubricant, 175PZ
MTZ144-4VI
Reciprocating compressor, MTZ144HV4AVE
6804506V02
Connector, Service valve
193U8025E
Condenser, Q8
119-8255
Fan system, Fan motor
191U007810
Tank, Oil separator
191U127867
Connector, Kit housing
120Z0459
Crankcase heater, PTC heater
191U9907
Miscellaneous, Filter
6804503V04
Connector, Service valve
