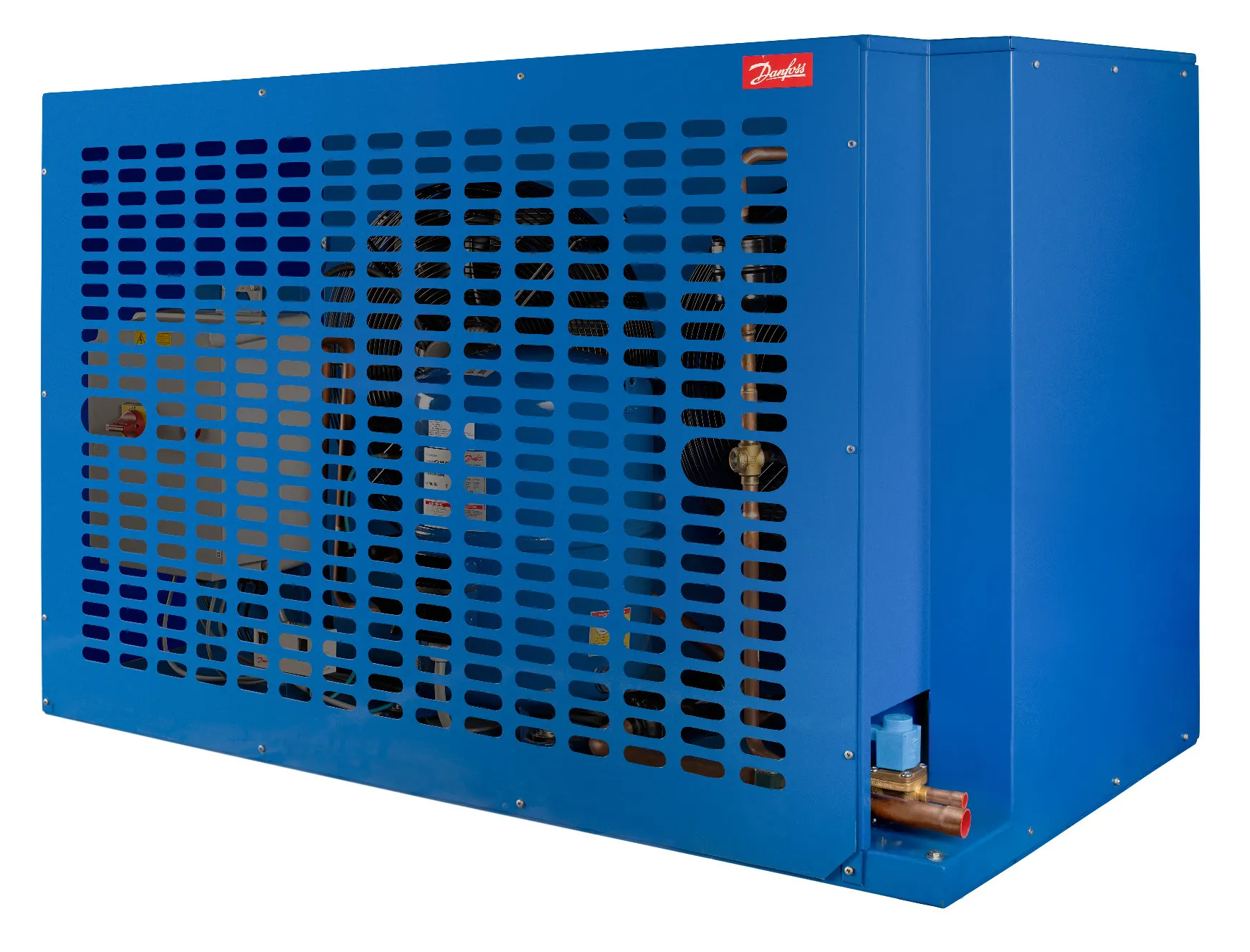

115F0905
Part Number: 115F0905
Product Information
Extended Description
115F0905 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A, Compressor power supply [V]: 400/3/50
Gross weight
262 Kilogram
Net weight
244 Kilogram
Air flow @ 60Hz [mÂł/h]
13980 mÂł/h
Applications
HBP,MBP
Compressor model
MTZ160-4
Compressor power supply [V]
400/3/50
Condenser type
Q8
Contain batteries
No
Description
OP-HGZ160D48E
Electrical code
E
Family
Optyma™
Fan current @ 50Hz [A]
3.5 A
Fan diameter [mm]
600 mm
Fan power consumption @ 50Hz [W]
500 W
Fan power supply [V/Ph/Hz]
230/1/50
Frequency [Hz]
50/60 Hz
High value of nominal voltage at 50Hz [V]
415 V
High value of nominal voltage at 60Hz [V]
460 V
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
460 V
Model number
OP-HGZ160D48E
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
2
Phase
3
Product group
Condensing Units
Product Name Description
Bare unit
Refrigerants
R404A
Segment usage
Medium Back Pressure
Technology
Reciprocating
Type
Optyma™ D48
Version
D48
118U6015
Tank, Receiver
119-8255
Fan system, Fan motor
120Z0638
Lubricant, 175PZ
120Z0459
Crankcase heater, PTC heater
191U127867
Connector, Kit housing
6804506V02
Connector, Service valve
6804503V04
Connector, Service valve
191U007810
Tank, Oil separator
193U8025E
Condenser, Q8
191U9907
Miscellaneous, Filter
