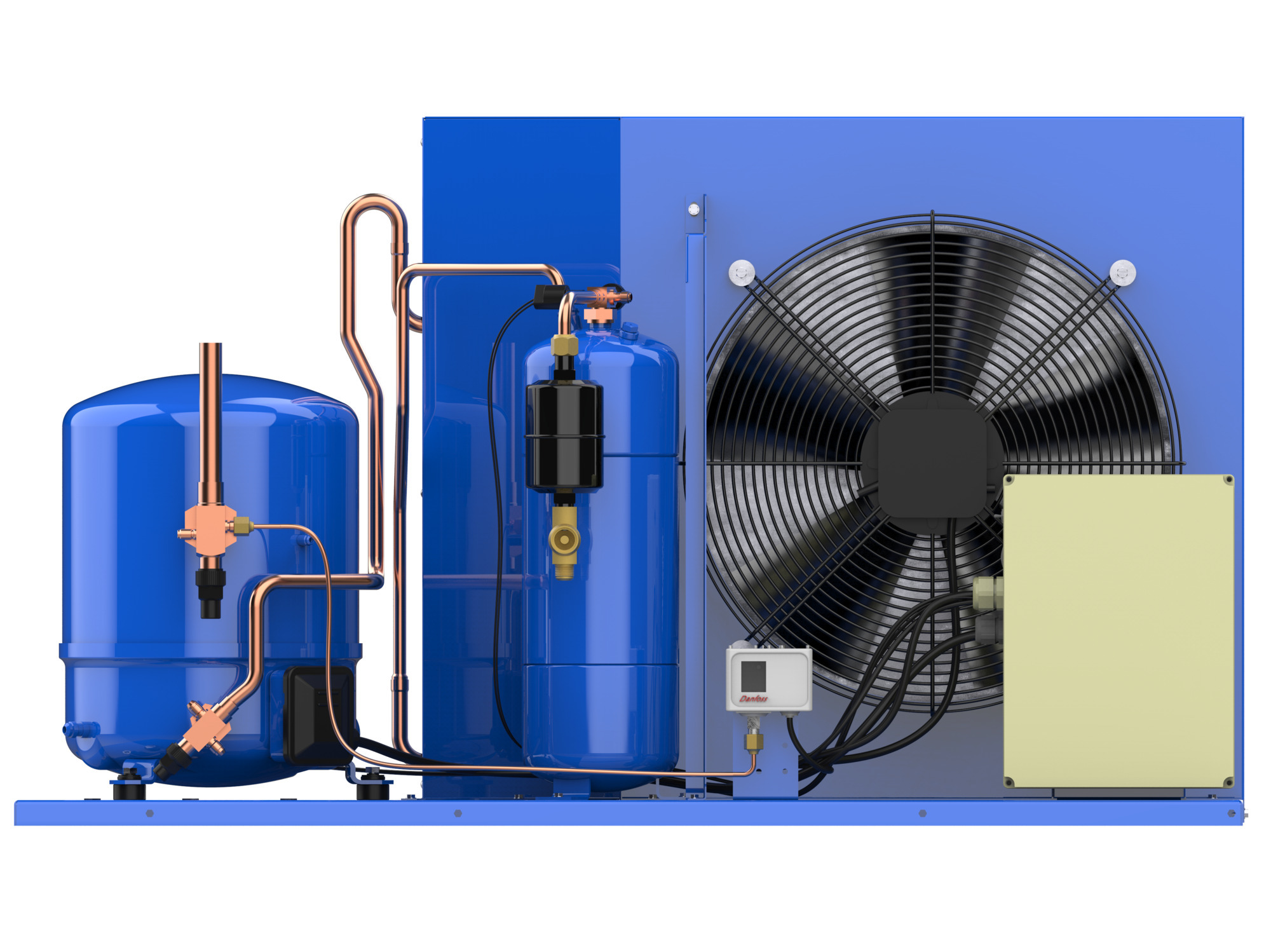

115N0298

Part Number: 115N0298
115N0298
Manufacturer
Danfoss
Part number
115N0298
Category

Product Information

Extended Description

115N0298 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R134a; R513A; R448A; R449A, Compressor power supply [V]: 230/3/60
Gross weight
107 Kilogram
Net weight
94 Kilogram
Volume
343.362 Liter
Air flow @ 60Hz [mÂł/h]
6300 mÂł/h
Applications
HBP,MBP
Compressor model
MTZ050-3
Compressor power supply [V]
230/3/60
Condenser type
J8
Contain batteries
No
Description
OP-HJZ050D39Q
Electrical code
Q
Family
Optyma™
Fan current @ 60Hz [A]
2.6 A
Fan diameter [mm]
457 mm
Fan power consumption @ 60Hz [W]
889 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
200 V
Model number
OP-HJZ050D39Q
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Bare unit
Refrigerants
R134a,R404A,R448A,R449A,R452A,R513A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ D39
Version
D39
118U601108
Tank, Receiver
120Z0459
Crankcase heater, PTC heater
120Z0638
Lubricant, 175PZ
191U006310
Tank, Accumulator
191U007710
Tank, Oil separator
191U0644E
Condenser, J8
191U127667
Connector, Kit housing
191U9907
Miscellaneous, Filter
6804501V06
Connector, Service valve
6804502V09
Connector, Service valve
Lighter and more compact Fast installation and easy maintenance OPTYMA™ Condensing Units - 50HZ Optyma™ Semi-Hermetic Cool down with high efficiency for the better food conservation Condensers HJZ050D39N - 115N0297 - 115N0298 Condensing Unit - Optyma Commercial - BR Condensing Unit - Optyma Commercial 2 - BR HJZ050D39N - 115N0297 - 115N0298 Condensing Unit - Optyma Commercial 1 - BR HJZ050D39N - 115N0297 - 115N0298 HJZ050D39N - 115N0297 - 115N0298
