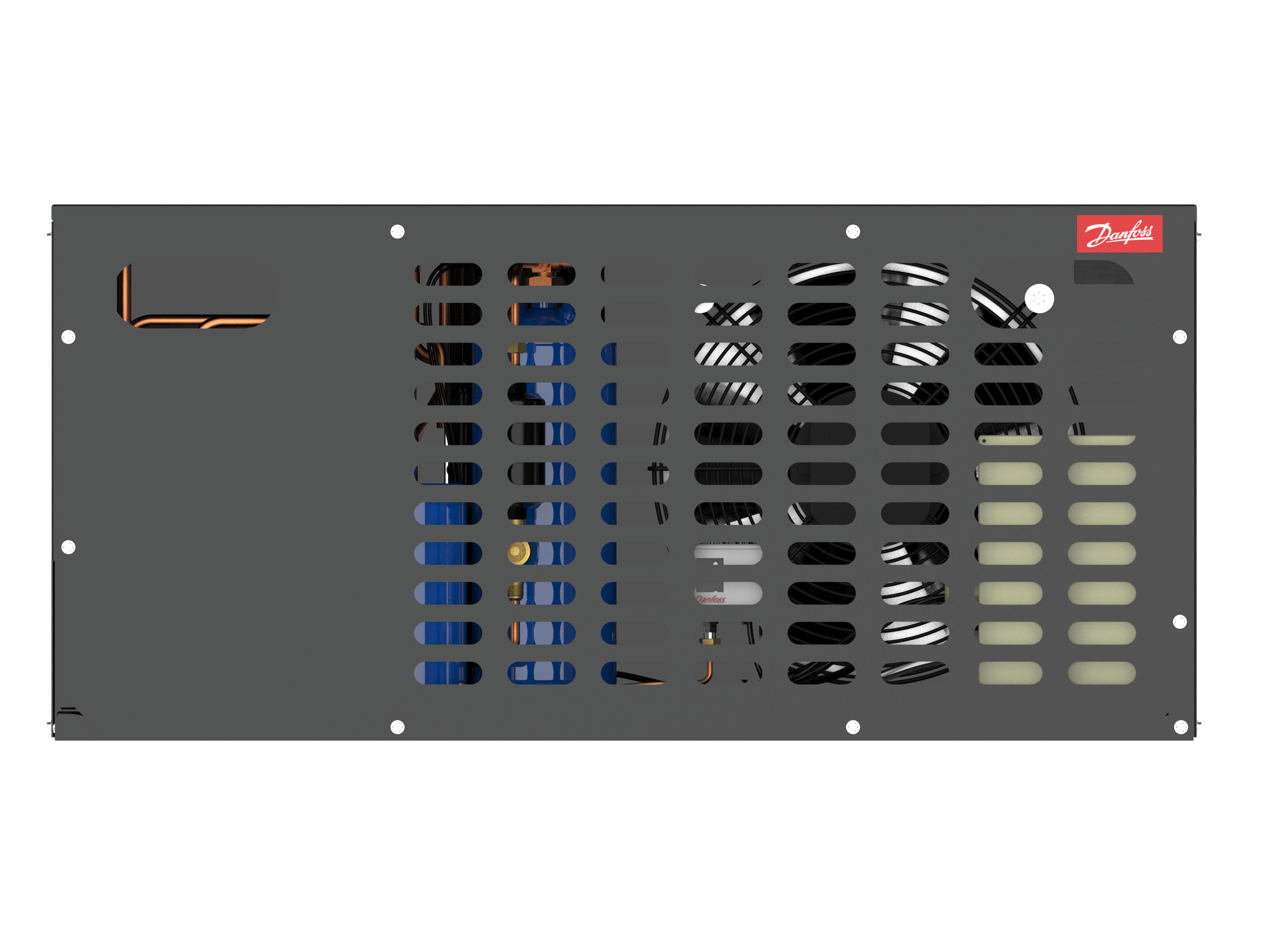

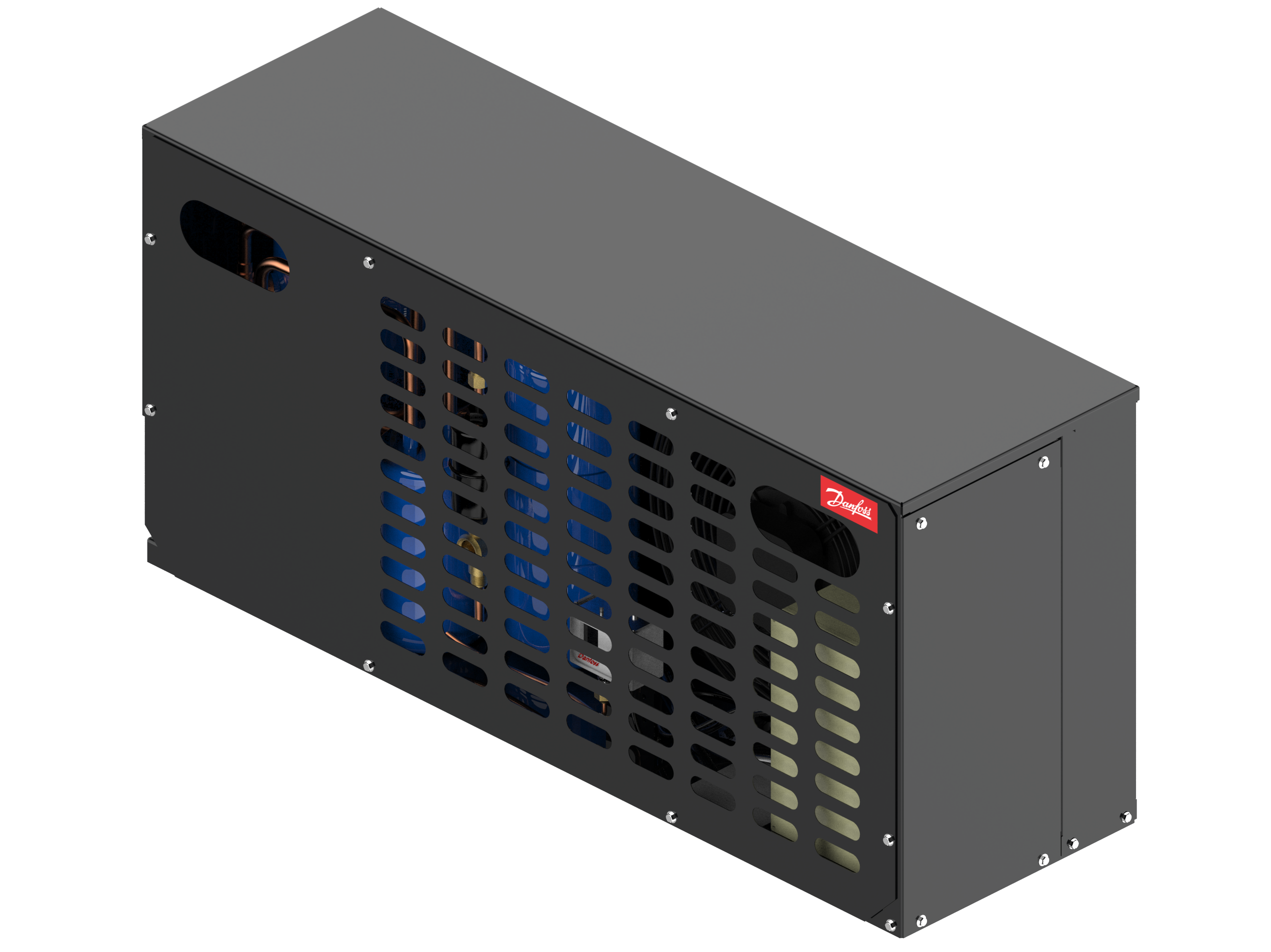

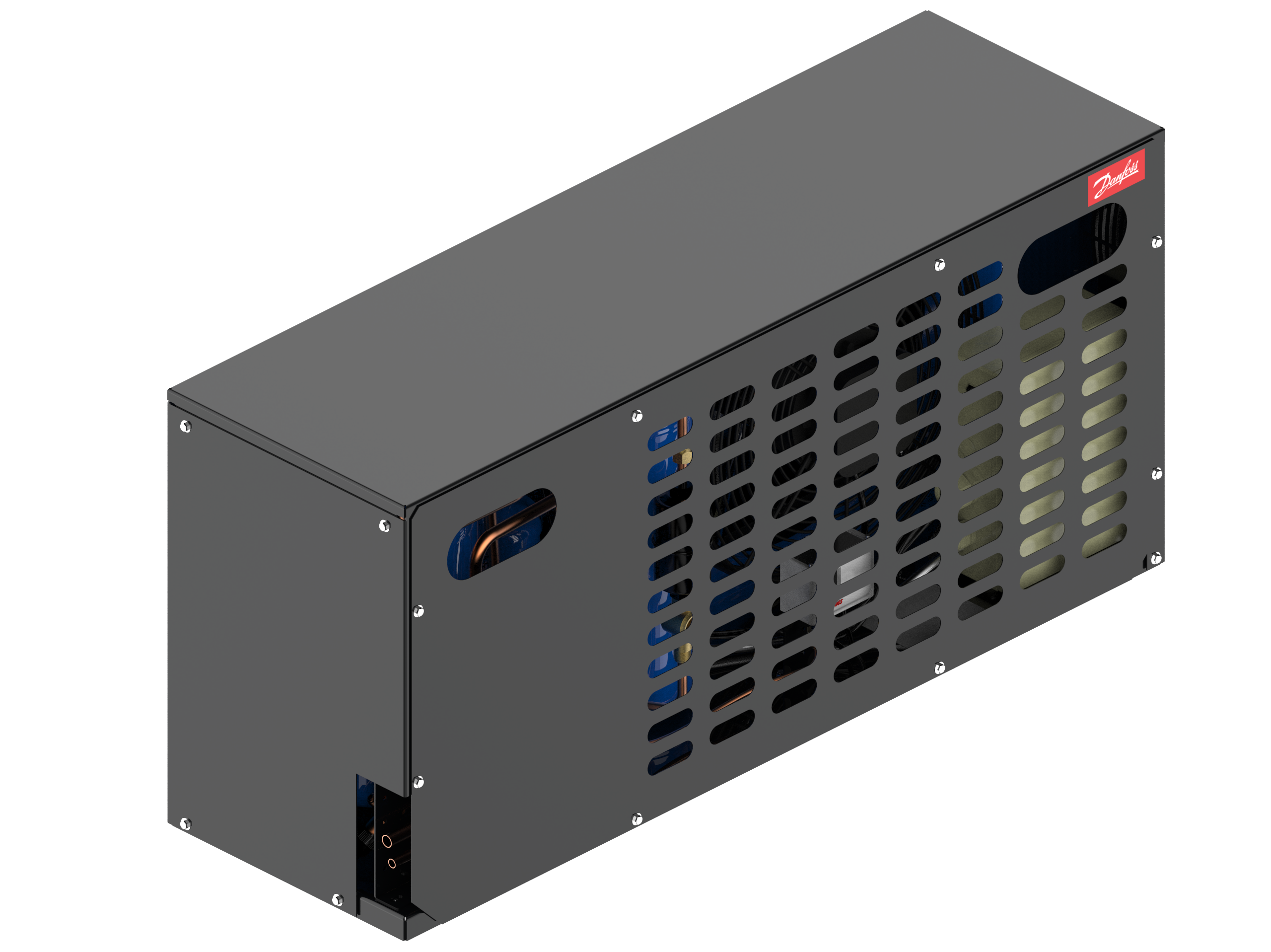

115N0327
Part Number: 115N0327
Product Information
Extended Description
115N0327 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R134a; R513A; R448A; R449A, Compressor power supply [V]: 230/1/60
Gross weight
75 Kilogram
Net weight
66 Kilogram
Volume
143.53 Liter
Air flow @ 60Hz [mÂł/h]
2400 mÂł/h
Applications
HBP,MBP
Compressor model
MTZ019-1
Compressor power supply [V]
230/1/60
Condenser type
D8
Contain batteries
No
Description
OP-HJZ019D40N
Electrical code
N
Family
Optyma™
Fan current @ 60Hz [A]
1.1 A
Fan diameter [mm]
355 mm
Fan power consumption @ 60Hz [W]
285 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
208 V
Model number
OP-HJZ019D40N
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
1
Phase
1
Product group
Condensing Units
Product Name Description
Bare unit
Refrigerants
R134a,R404A,R448A,R449A,R452A,R513A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ D40
Version
D40
118U600908
Tank, Receiver
119-8453A
Electrical component, Starting relay
120Z0459
Crankcase heater, PTC heater
120Z0638
Lubricant, 175PZ
191U006010
Tank, Accumulator
191U007610
Tank, Oil separator
191U127367
Connector, Kit housing
191U9905
Miscellaneous, Filter
193U8024E
Condenser, D8
6804500V01
Connector, Service valve
