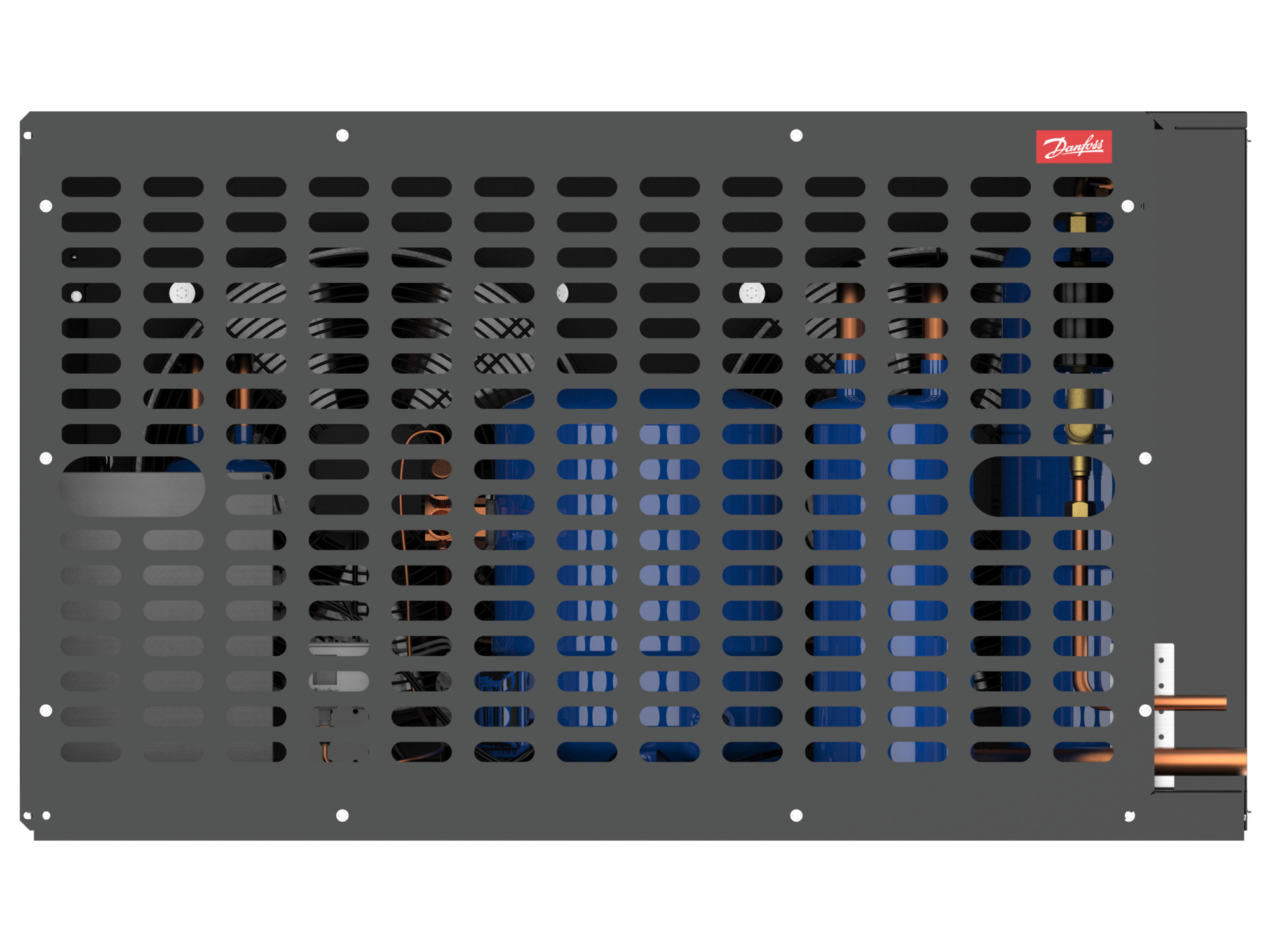

115N0656
Part Number: 115N0656
Product Information
Extended Description
115N0656 Danfoss: Segment usage: Medium Back Pressure, Refrigerants: R404A; R452A; R134a; R513A; R448A; R449A, Compressor power supply [V]: 230/1/60
Gross weight
173 Kilogram
Net weight
158 Kilogram
Volume
686.4 Liter
Applications
HBP,MBP
Compressor model
MTZ064-1
Compressor power supply [V]
230/1/60
Condenser type
N8
Contain batteries
No
Description
OP-HGZ064D40N
Electrical code
N
Family
Optyma™
Fan current @ 60Hz [A]
3.6 A
Fan diameter [mm]
457 mm
Fan power consumption @ 60Hz [W]
450 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
208 V
Model number
OP-HGZ064D40N
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
2
Phase
1
Product group
Condensing Units
Product Name Description
Bare unit
Refrigerants
R134a,R404A,R448A,R449A,R452A,R513A
Segment usage
Medium Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ D40
Version
D40
118U6014
Tank, Receiver
119-8453A
Electrical component, Starting relay
120Z0459
Crankcase heater, PTC heater
120Z0638
Lubricant, 175PZ
191U006410
Tank, Accumulator
191U007710
Tank, Oil separator
191U0645E
Condenser, G7
191U127767
Connector, Kit housing
191U9907
Miscellaneous, Filter
6804503V04
Connector, Service valve
