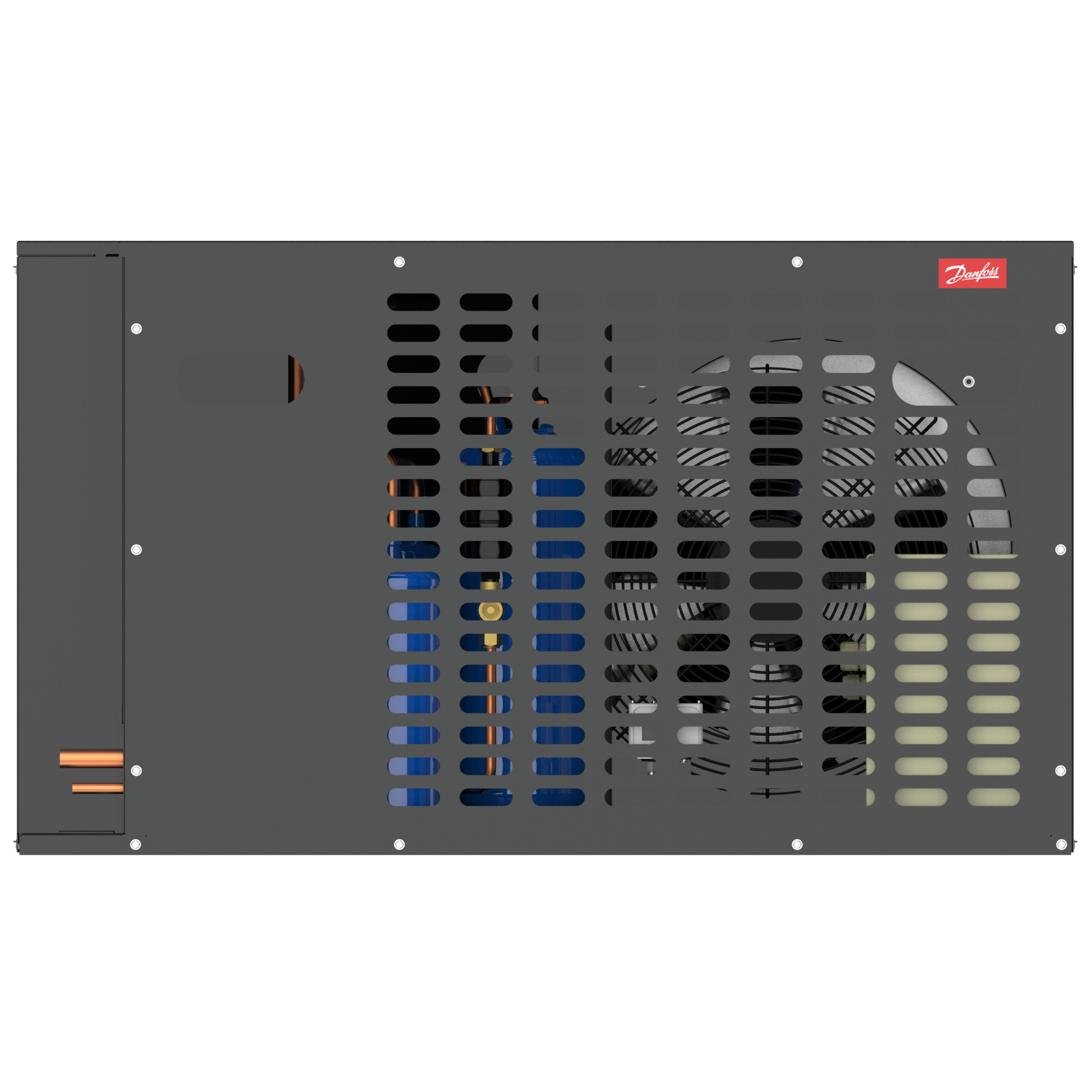

115N0688
Part Number: 115N0688
Product Information
Extended Description
115N0688 Danfoss: Segment usage: Low Back Pressure, Refrigerants: R404A; R452A, Compressor power supply [V]: 230/1/60
Gross weight
124 Kilogram
Net weight
111 Kilogram
Volume
343.362 Liter
Air flow @ 60Hz [mÂł/h]
6300 mÂł/h
Applications
LBP
Compressor model
NTZ108-1
Compressor power supply [V]
230/1/60
Condenser type
J8
Contain batteries
No
Description
OP-LJZ108D40N
Electrical code
N
Family
Optyma™
Fan current @ 60Hz [A]
3.6 A
Fan diameter [mm]
457 mm
Fan power consumption @ 60Hz [W]
450 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
208 V
Model number
OP-LJZ108D40N
No. of phases (compressor)
1
No. of phases (fan)
1
Number of fans
1
Phase
1
Product group
Condensing Units
Product Name Description
Bare unit
Refrigerants
R404A,R452A
Segment usage
Low Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ D40
Version
D40
118U601108
Tank, Receiver
119-8453A
Electrical component, Starting relay
120F0296
Reciprocating compressor, NTZ108A1LR1B
120Z0459
Crankcase heater, PTC heater
120Z0638
Lubricant, 175PZ
191U006310
Tank, Accumulator
191U007710
Tank, Oil separator
191U0644E
Condenser, J8
191U127667
Connector, Kit housing
191U9907
Miscellaneous, Filter
