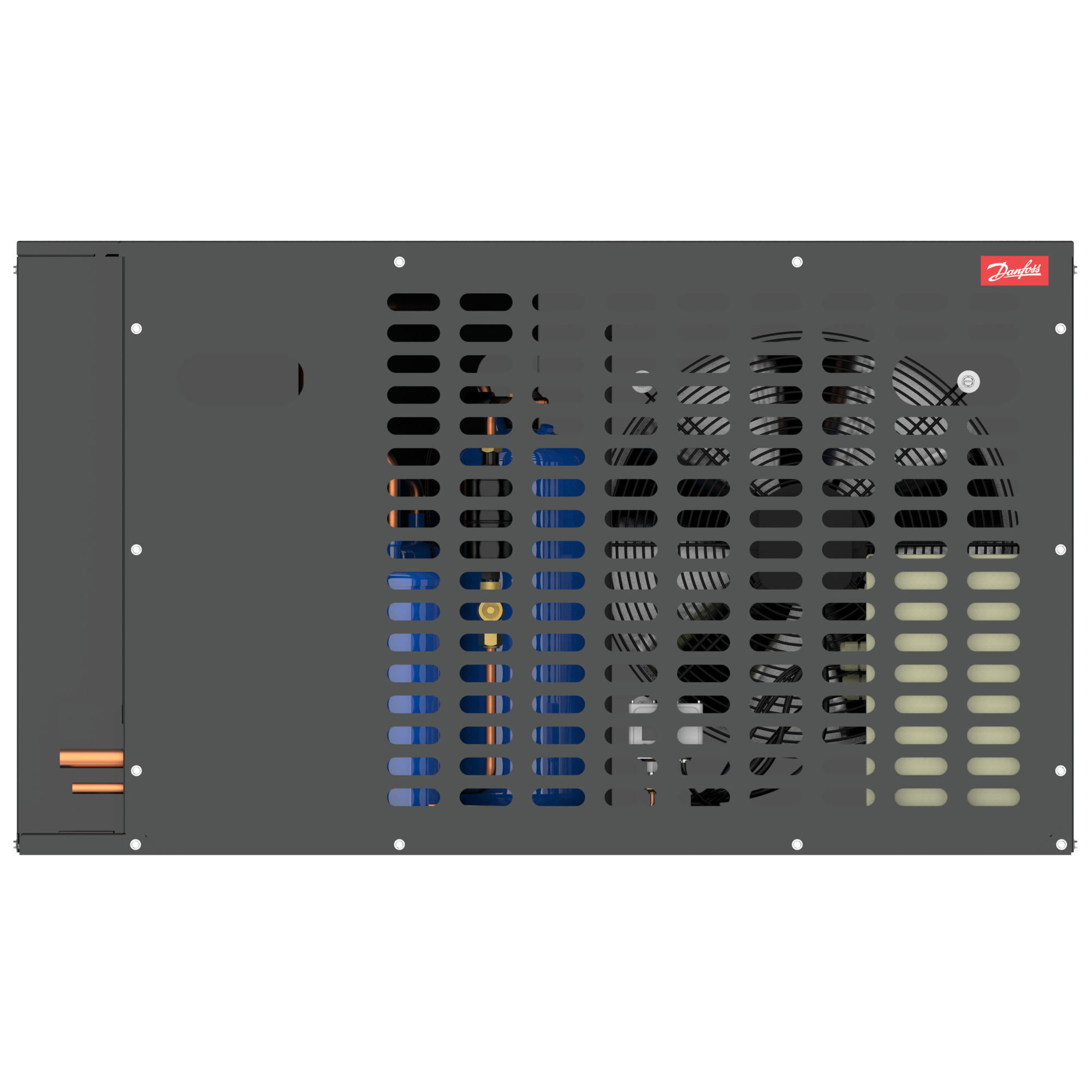

115N0705

Part Number: 115N0705
115N0705
Manufacturer
Danfoss
Part number
115N0705
Category

Product Information

Extended Description

115N0705 Danfoss: Segment usage: Low Back Pressure, Refrigerants: R404A; R452A, Compressor power supply [V]: 230/3/60
Gross weight
135 Kilogram
Net weight
122 Kilogram
Volume
343.362 Liter
Applications
LBP
Compressor model
NTZ136-3
Compressor power supply [V]
230/3/60
Condenser type
J8
Contain batteries
No
Description
OP-LJZ136D40Q
Electrical code
Q
Family
Optyma™
Fan current @ 60Hz [A]
3.6 A
Fan diameter [mm]
457 mm
Fan power consumption @ 60Hz [W]
450 W
Fan power supply [V/Ph/Hz]
230/1/60
Frequency [Hz]
60 Hz
High value of nominal voltage at 60Hz [V]
230 V
Low value of voltage range at 60Hz [V]
200 V
Model number
OP-LJZ136D40Q
No. of phases (compressor)
3
No. of phases (fan)
1
Number of fans
1
Phase
3
Product group
Condensing Units
Product Name Description
Bare unit
Refrigerants
R404A,R452A
Segment usage
Low Back Pressure
Speed Platform
Fixed-speed
Technology
Reciprocating
Type
Optyma™ D40
Version
D40
118U601108
Tank, Receiver
120F0283
Reciprocating compressor, NTZ136A3LR1B
120Z0459
Crankcase heater, PTC heater
120Z0638
Lubricant, 175PZ
191U006310
Tank, Accumulator
191U007710
Tank, Oil separator
191U0644E
Condenser, J8
191U127667
Connector, Kit housing
191U9907
Miscellaneous, Filter
6804501V06
Connector, Service valve
Catalogue - OptymaTM Condensing Units Lightweight and compact solution - LAM - 60 Hz Condensing Unit Optyma™ Condensers OP-LJZ108D40Q OP-LJZ136D40N/Q - 115N0348 OP-LJZ108D40Q OP-LJZ136D40N/Q - 115N0348 OP-LJZ108D40Q OP-LJZ136D40N/Q - 115N0348 OP-LJZ108D40Q OP-LJZ136D40N/Q - 115N0348 Condensing Unit - Optyma Commercial 1 - BR
