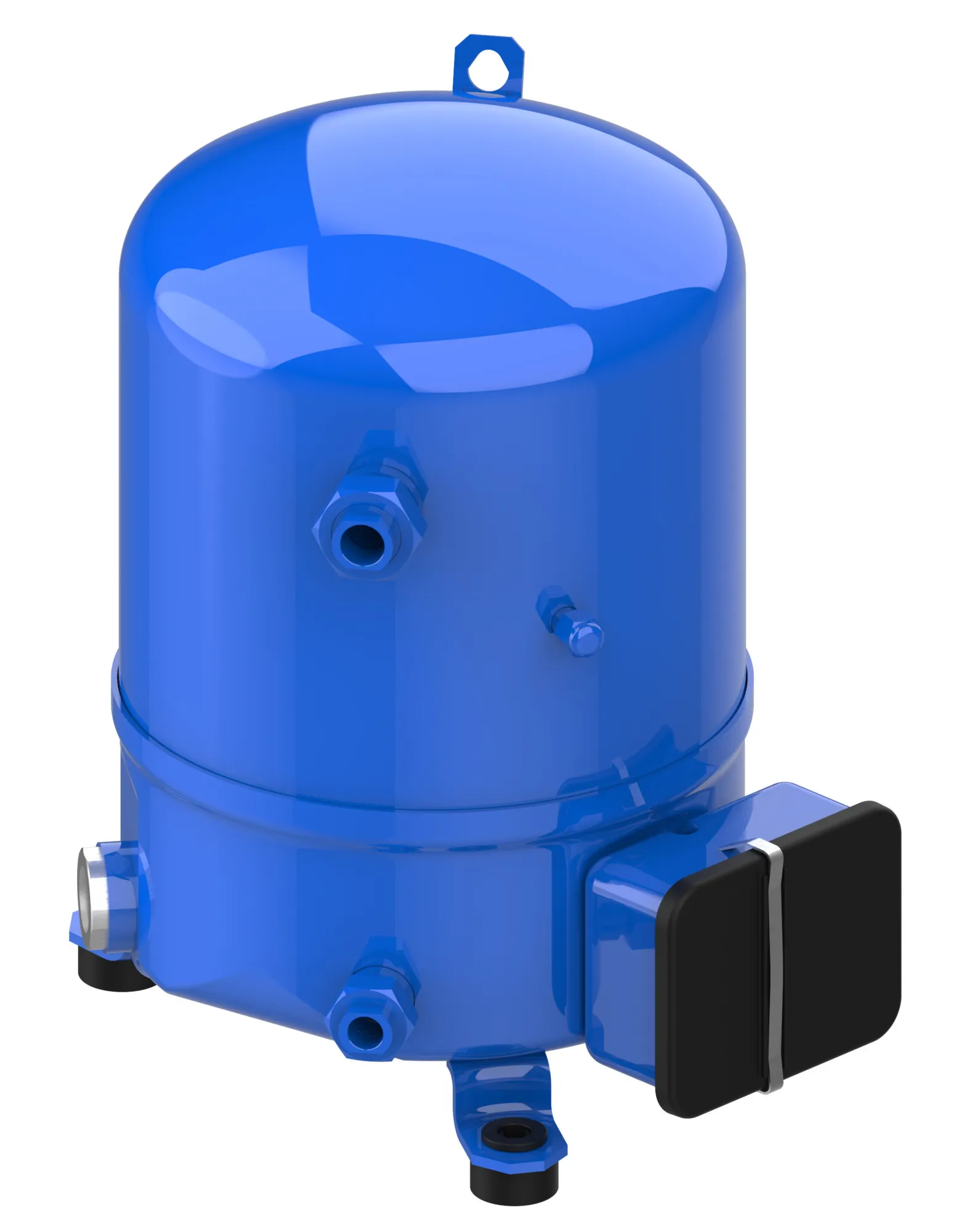

120B0001

Part Number: 120B0001
120B0001
Manufacturer
Danfoss
Part number
120B0001
Category

Product Information

Extended Description

120B0001 Danfoss: Refrigerants: R404A; R407C; R134a, Segment usage: Refrigeration MT, Compressor power supply [V]: 380-480/3/50-60, Packing format: Single pack
Gross weight
27.88 Kilogram
Net weight
26 Kilogram
Volume
37.73 Liter
EAN
5702428666176
Brand technique
Reciprocating compressor
Capacity control
Inverter
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
380-480/3/50-60
Configuration code
Single
Connection type
Rotolock
Contain batteries
No
Cylinder
1
Description
VTZ038-G
Diameter [mm]
224 mm
Discharge connection height [mm]
67 mm
Discharge connection pipe size [in]
1/2 in
Discharge connection size [in]
1 in
Drawing number
8501042a
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(c)
Factory HP [bar]
25 bar
Factory LP [bar]
25 bar
Family
VTZ
Fitting remark
(shipped with rotolock version only)
Fitting sleeve
ODF
Fitting standard
Rotolock
Frequency [Hz]
35 - 90
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
0.3 L
High value of nominal voltage at 50Hz [V]
480 V
High value of nominal voltage at 60Hz [V]
480 V
High value of voltage range at 50Hz [V]
480 V
High value of voltage range at 60Hz [V]
480 V
IP protection class
IP54 (with cable gland)
Low Side TS Max
50 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
7.5 L
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
380 V
Low value of voltage range at 50Hz [V]
380 V
Low value of voltage range at 60Hz [V]
380 V
LRA
30.5 A
Max pressure (PS) - high side
29.4 bar
Max pressure (PS) - low side
22.6 bar
MMT
9.2 A
Model number
VTZ038AGNR1A
Motor protection
Motor protection by frequency converter
Mounting torque [Nm]
15 N-m
Network power supply [V/Ph/Hz]
380-415/3/50 460/3/60
Number of starts per hour [Max]
12
Oil charge [L]
0.95 L
Oil equalization
3/8'' flare SAE
Oil equalization torque [Nm]
30 N-m
Oil reference
160PZ
Packaging height [mm]
385 mm
Packaging length [mm]
330 mm
Packaging width [mm]
295 mm
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Screw 4.8 mm
Product group
Hermetic compressors
Product Name Description
Reciprocating compressor VTZ
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
2.5 kg
Refrigerants
R134a,R404A,R407C
RLA
7.35 A
SCIP dossier no.
5a332c1b-1d1b-4998-8115-d0929877ecb4
Segment usage
Refrigeration MT
Shipped fittings
Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil
Initial oil charge
Suction connection height [mm]
263 mm
Suction connection material
-
Suction connection pipe size [in]
5/8 in
Suction connection size [in]
1 1/4 in
Swept volume [cm3]
38.12 cm=C2=B3
Technology
Reciprocating
Test dif [bar] [Max]
30 bar
Test HP [bar] [Max]
30 bar
Test LP [bar] [Max]
25 bar
Torque earth [Nm]
4 N-m
Torque power [Nm]
3 N-m
Total height [mm]
356 mm
Type
VTZ038
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
12,18
Viscosity [cP]
32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
3.37 Ohm
7703005
Connector, Valve set
7773106
Crankcase heater, Belt heater
8156019
Connector, Sight glass
8156145
Connector, Gasket
120Z0638
Lubricant, 175PZ
7773013
Crankcase heater, Belt heater
8168033
Connector, Rotolock service valve
120Z0459
Crankcase heater, PTC heater
120Z0639
Lubricant, 175PZ
8168031
Connector, Rotolock service valve
8153011
Connector, Solder sleeve
131B3547
Frequency converter, CD302
120Z0575
Acoustic hood, Reciprocating
120Z0149
Electrical component, Terminal box cover
8173230
Electrical component, T block
131B3543
Frequency converter, CD302
131B3544
Frequency converter, CD302
8156009
Connector, Gasket
8153007
Connector, Solder sleeve
8156001
Mounting, Compressor kit
