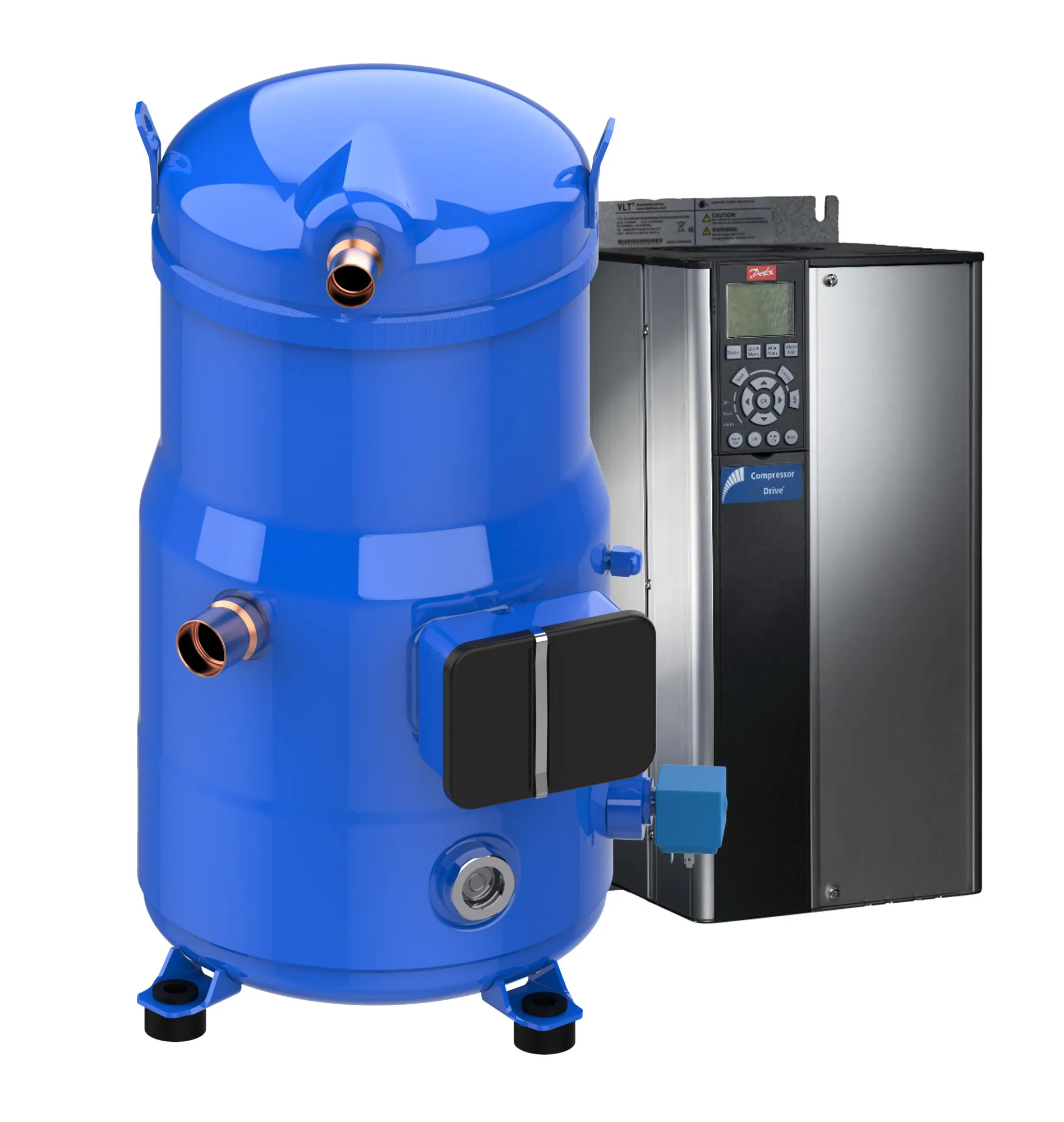

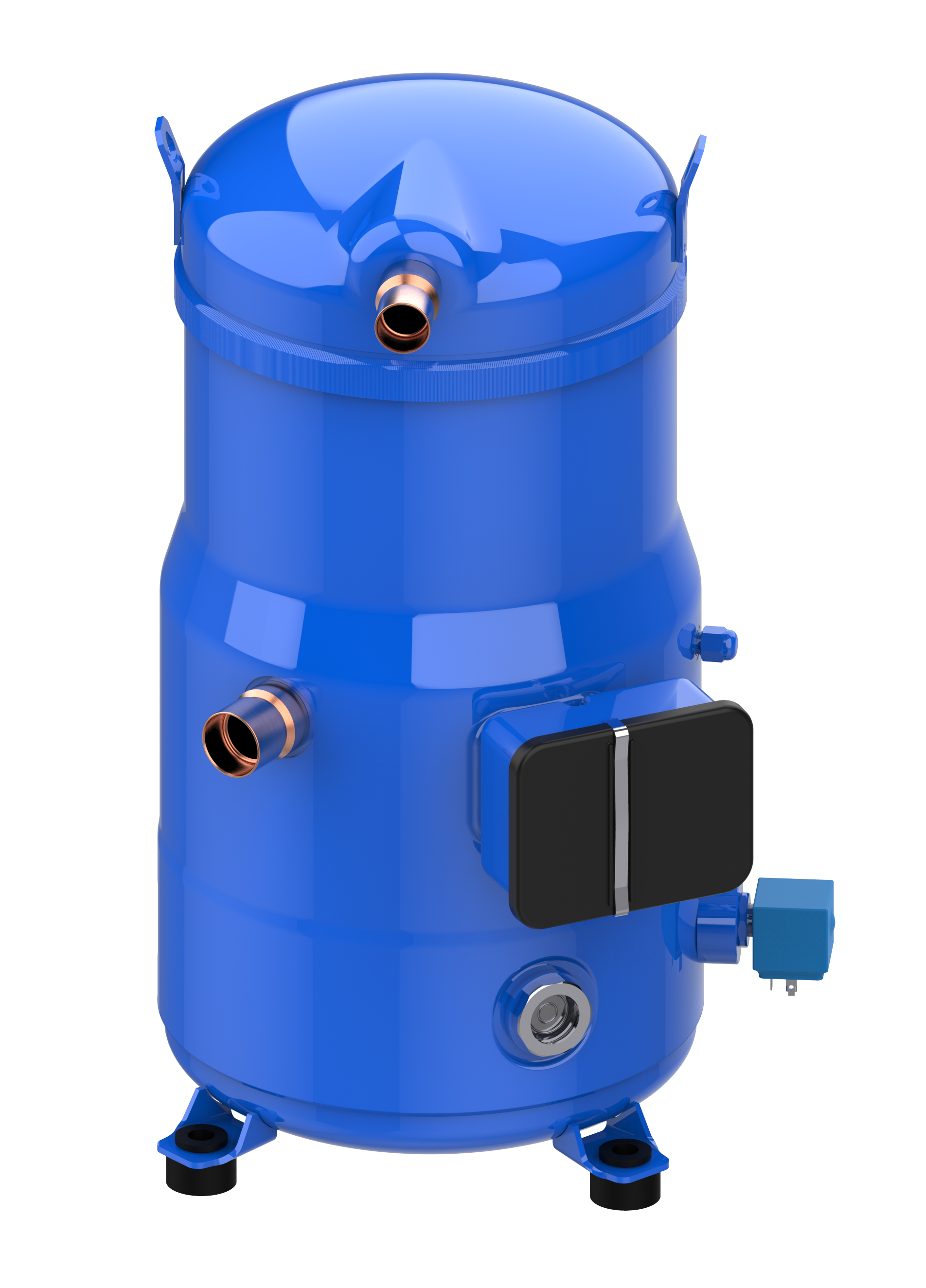

120G0001

Part Number: 120G0001
120G0001
Manufacturer
Danfoss
Part number
120G0001
Category

Product Information

Extended Description

120G0001 Danfoss: Refrigerants: R410A, Segment usage: Air conditioning, Compressor power supply [V]: 380-480/3/50-60, Packing format: Single pack
Gross weight
59.75 Kilogram
Net weight
59.02 Kilogram
Volume
0.23 Cubic meter
EAN
5702428803373
Approval
CE,UL,UKCA
Brand technique
Scroll compressor
Capacity control
Inverter
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
380-480/3/50-60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
VSH088-G
Diameter [mm]
243 mm
Discharge connection height [mm]
451 mm
Discharge connection pipe size [in]
7/8 in
Discharge connection size [in]
7/8 in
Drawing number
8560025d
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Family
VSH
Fitting standard
ODF
Frequency [Hz]
30 - 90
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
0.7 L
High value of nominal voltage at 50Hz [V]
480 V
High value of nominal voltage at 60Hz [V]
480 V
High value of voltage range at 50Hz [V]
528 V
High value of voltage range at 60Hz [V]
528 V
IP protection class
IP54 (with cable gland)
Low Side TS Max
55 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
11.7 L
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
380 V
Low value of voltage range at 50Hz [V]
342 V
Low value of voltage range at 60Hz [V]
342 V
LRA
159 A
Max pressure (PS) - high side
48.7 bar
Max pressure (PS) - low side
33.3 bar
MMT
37.4 A
Model number
VSH088AGANB
Motor protection
Motor protection by frequency converter
Mounting torque [Nm]
15 N-m
Network power supply [V/Ph/Hz]
380-415/3/50 460/3/60
Number of starts per hour [Max]
12
Oil charge [L]
3.3 L
Oil equalization
1-3/4'' Rotolock
Oil level switch port
No
Oil reference
160SZ
Oil type
POE
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Screw 4.8 mm
Product group
Hermetic compressors
Product Name Description
Scroll compressor VSH
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
5.9 kg
Refrigerants
R410A
RLA
29.9 A
Rotational speed at 50Hz [rpm]
3000 rpm
Rotational speed at 60Hz [rpm]
3600 rpm
SCIP dossier no.
c887e2a1-dfd8-4045-b0c8-0c53bb23f54e
SCIP dossier product name
VSH088-117
Segment usage
Air conditioning
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil
Initial oil charge
Suction connection height [mm]
235 mm
Suction connection material
-
Suction connection pipe size [in]
1 1/8 in
Suction connection size [in]
1 1/8 in
Swept volume [cm3]
88.4 cm=C2=B3
Technology
Scroll
Test dif [bar] [Max]
37 bar
Test HP [bar] [Max]
45 bar
Test LP [bar] [Max]
33.3 bar
Torque earth [Nm]
4 N-m
Torque power [Nm]
3 N-m
Total height [mm]
485 mm
Type
VSH088
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
32 cP
120Z0159
Electrical component, Temperature sensor
120Z0389
Crankcase heater, Surface sump heater
120Z0158
Electrical component, Temperature sensor
120Z0390
Crankcase heater, Surface sump heater
8168030
Connector, Rotolock service valve
7773107
Crankcase heater, Belt heater
120Z0157
Electrical component, Temperature sensor
120Z0388
Crankcase heater, Surface sump heater
120Z0391
Crankcase heater, Surface sump heater
120Z0038
Crankcase heater, Belt heater
131H9078
Frequency converter, CDS302
131H9091
Frequency converter, CDS302
8156009
Connector, Gasket
8156132
Connector, Gasket
7750009
Electrical component, Discharge thermostat kit
8153004
Connector, Solder sleeve
120Z0152
Acoustic hood, Scroll
120Z0125
Connector, Solder sleeve adapter set
120Z0144
Electrical component, Solenoid valve
120Z0143
Electrical component, Solenoid valve
