120G0204

Part Number: 120G0204
120G0204
Manufacturer
Danfoss
Part number
120G0204
Category

Product Information

Extended Description

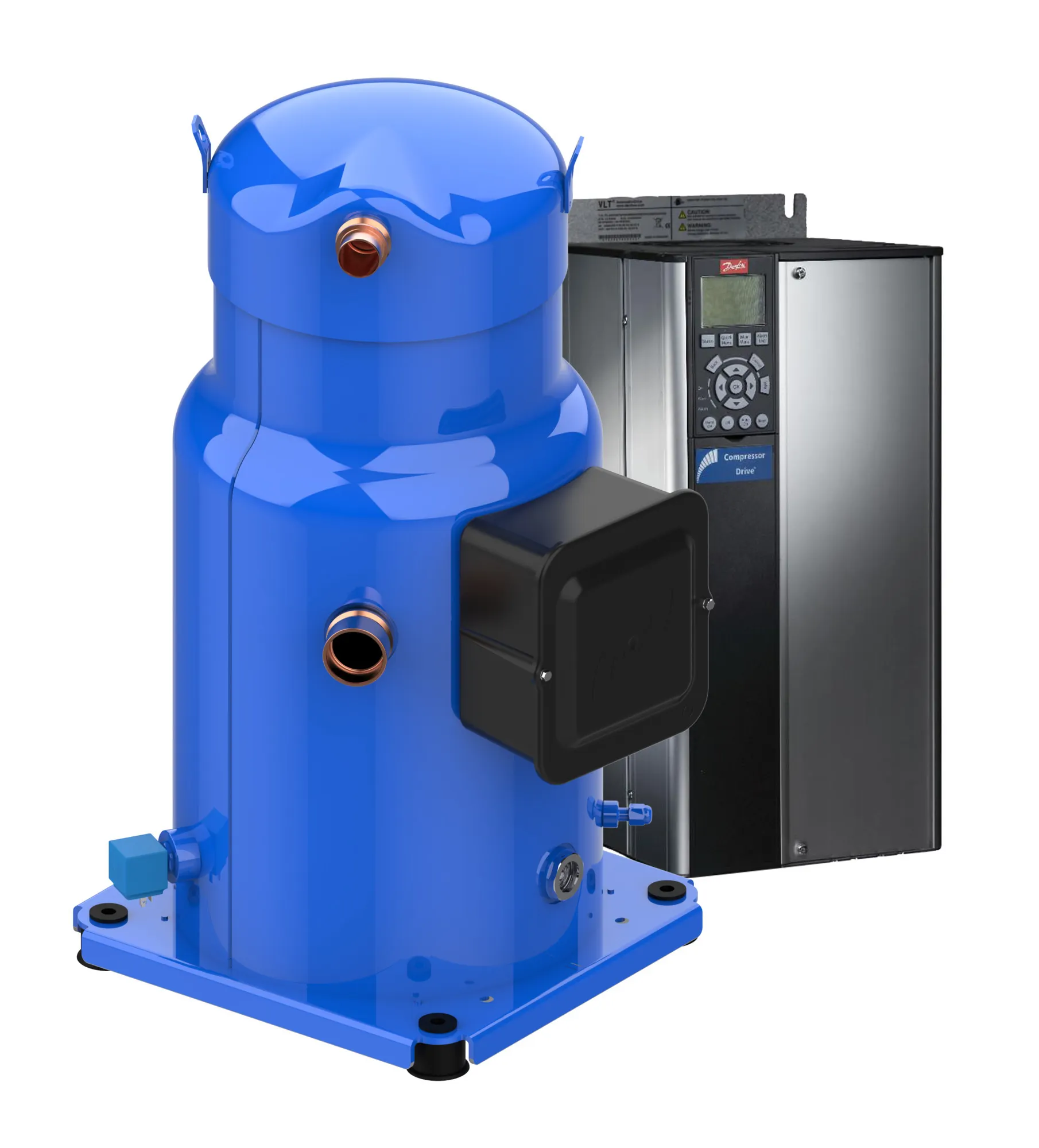

120G0204 Danfoss: Refrigerants: R410A, Segment usage: Air conditioning, Compressor power supply [V]: 525-600/3/50-60, Packing format: Single pack
Gross weight
117.86 Kilogram
Net weight
107.144 Kilogram
Volume
0.3 Cubic meter
EAN
5702424543761
Approval
CE,UL,UKCA
Brand technique
Scroll compressor
Capacity control
Inverter
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
525-600/3/50-60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
VZH170CH
Diameter [mm]
318 mm
Discharge connection height [mm]
645 mm
Discharge connection pipe size [in]
1 1/8 in
Discharge connection size [in]
1 1/8 in
Drawing number
8551186b
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Family
VZH
Fitting standard
ODF
Frequency [Hz]
15 - 100
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
2.9 L
High value of nominal voltage at 50Hz [V]
575 V
High value of nominal voltage at 60Hz [V]
575 V
High value of voltage range at 50Hz [V]
660 V
High value of voltage range at 60Hz [V]
660 V
IP protection class
IP54 (with cable gland)
Low Side TS Max
51 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
29.9 L
Low value of nominal voltage at 50Hz [V]
575 V
Low value of nominal voltage at 60Hz [V]
575 V
Low value of voltage range at 50Hz [V]
473 V
Low value of voltage range at 60Hz [V]
473 V
Max pressure (PS) - high side
48.7 bar
Max pressure (PS) - low side
30.2 bar
MMT
76.3 A
Model number
VZH170CHANA
Motor protection
Motor protection by frequency converter
Mounting torque [Nm]
21 N-m
Network power supply [V/Ph/Hz]
500/3/50 575/3/60
Number of starts per hour [Max]
12
Oil charge [L]
7.7 L
Oil equalization
1-3/4'' Rotolock
Oil level switch port
No
Oil reference
160SZ
Oil type
POE
Packaging height [mm]
765 mm
Packaging length [mm]
450 mm
Packaging weight [Kg]
112 kg
Packaging width [mm]
515 mm
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Screw 4.8 mm
Product group
Hermetic compressors
Product Name Description
Scroll compressor VZH
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
13 kg
Refrigerants
R410A
RLA
61 A
Rotational speed at 50Hz [rpm]
3000 rpm
Rotational speed at 60Hz [rpm]
3600 rpm
SCIP dossier no.
8ec73357-17d6-4fd2-a789-2017b3fc0840
SCIP dossier product name
VZH170
Segment usage
Air conditioning
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil
Initial oil charge
Suction connection height [mm]
329 mm
Suction connection material
-
Suction connection pipe size [in]
1 5/8 in
Suction connection size [in]
1 5/8 in
Swept volume [cm3]
170.2 cm=C2=B3
Technology
Scroll
Test dif [bar] [Max]
37 bar
Test HP [bar] [Max]
45 bar
Test LP [bar] [Max]
30 bar
Torque earth [Nm]
2 N-m
Torque power [Nm]
3 N-m
Total height [mm]
687 mm
Type
VZH170
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
0.05 Ohm
120Z0364
Connector, Rotolock adapter
8156129
Connector, Gasket
120Z0360
Crankcase heater, Surface sump heater
120Z0379
Crankcase heater, Surface sump heater
8156019
Connector, Sight glass
120Z0432
Connector, Rotolock adapter
120Z0326
Frequency converter, LCP
7773108
Crankcase heater, Belt heater
7773118
Crankcase heater, Belt heater
120Z0378
Crankcase heater, Surface sump heater
120Z0538
Electrical component, Terminal box
120Z0145
Connector, Valve
120Z0522
Electrical component, Solenoid valve
120Z0158
Electrical component, Temperature sensor
8153004
Connector, Solder sleeve
8156133
Connector, Gasket
120Z0562
Electrical component, Oil Level sensor
8153006
Connector, Solder sleeve
7765028
Connector, Solder sleeve adapter set
120Z0561
Electrical component, Oil Level sensor
