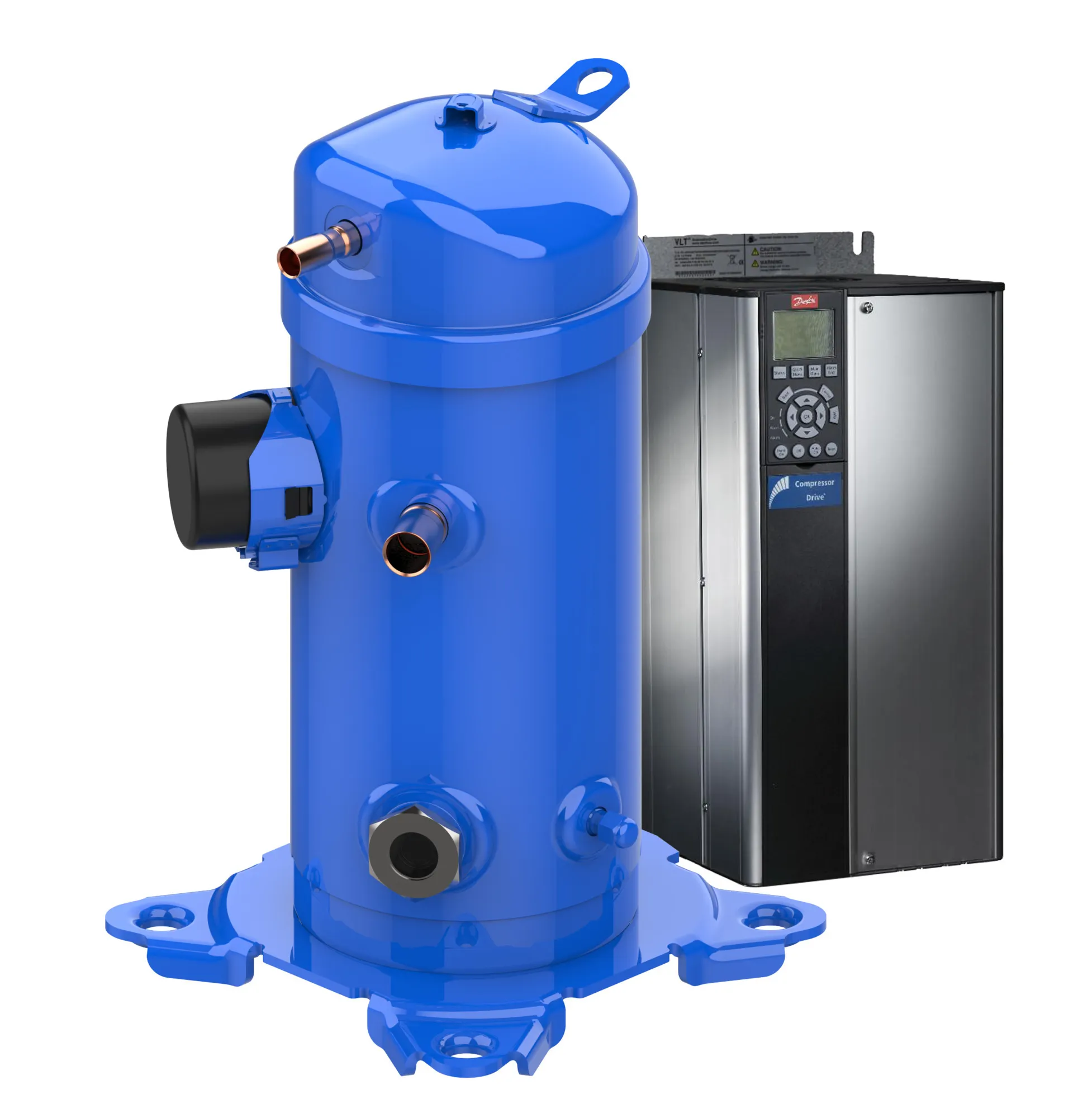

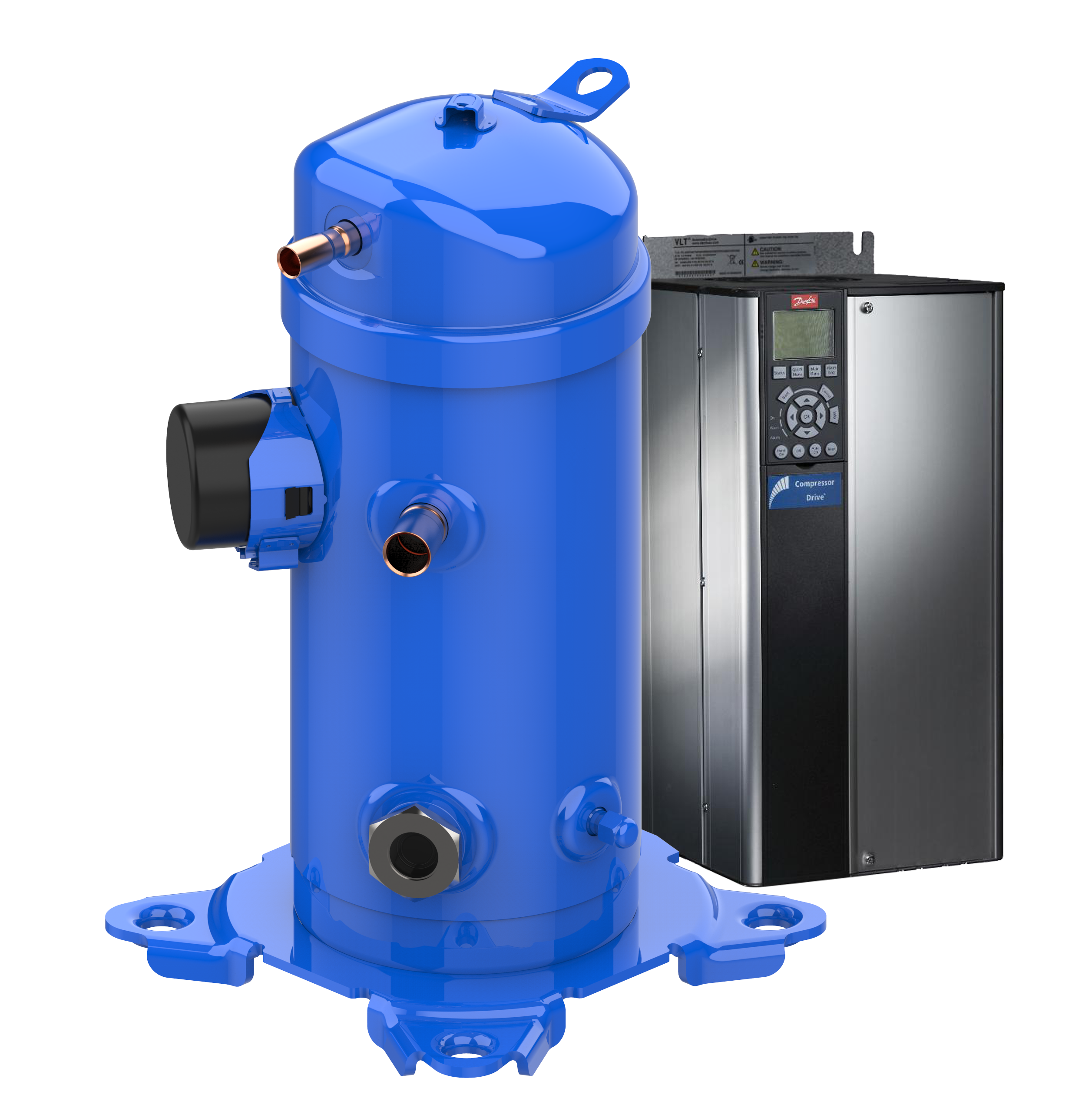

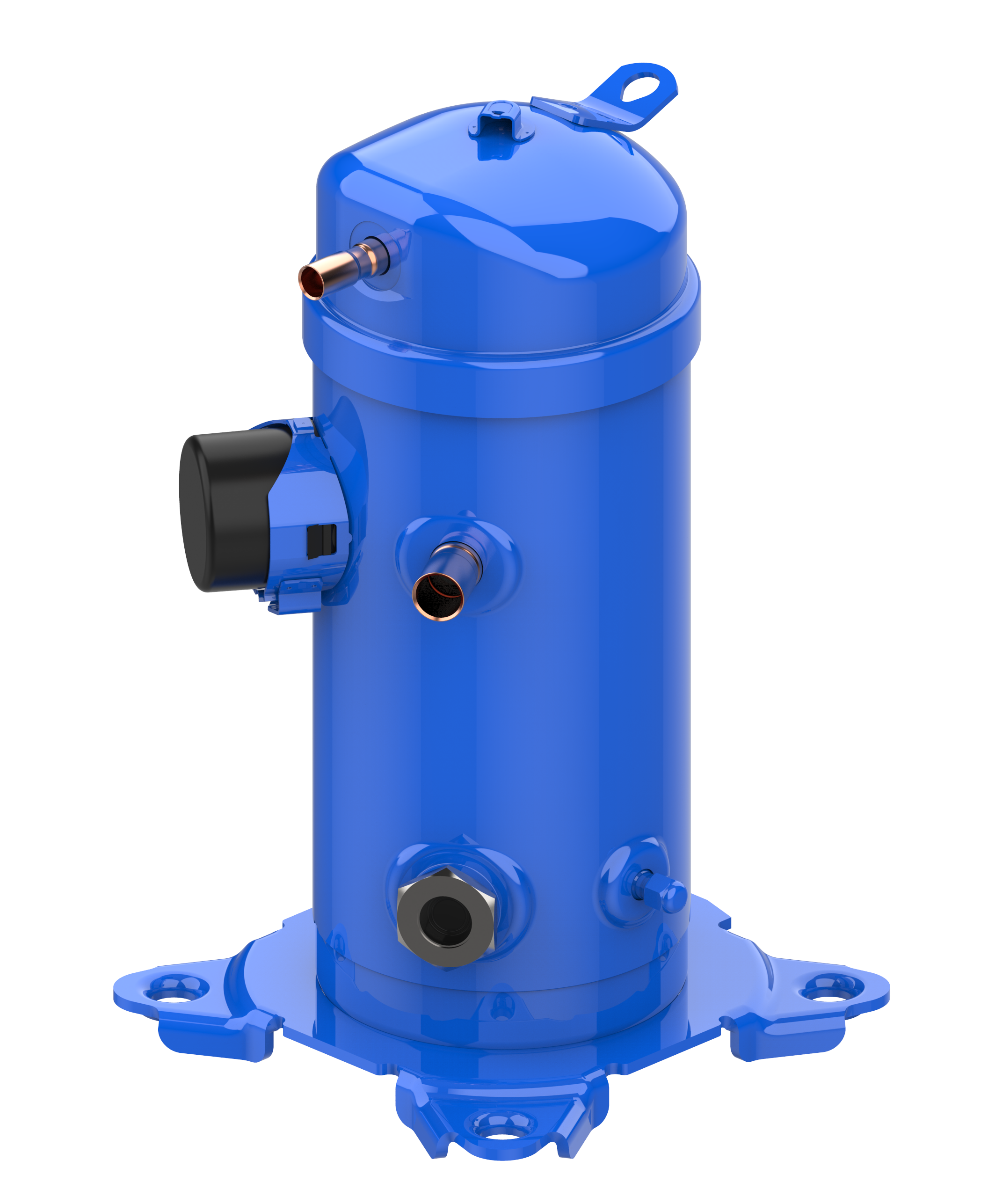

120G0355

Part Number: 120G0355
120G0355
Manufacturer
Danfoss
Part number
120G0355
Category

Product Information

Extended Description

120G0355 Danfoss: Refrigerants: R452B; R410A; R454B, Segment usage: Air conditioning, Compressor power supply [V]: 380-480/3/50-60, Packing format: Single pack
Gross weight
30 Kilogram
Net weight
27 Kilogram
Volume
0.336 Cubic meter
EAN
5702424659257
Approval
CE,UL,UKCA
Brand technique
Scroll compressor
Capacity control
Inverter
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
380-480/3/50-60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
VZH035CGM
Diameter [mm]
164 mm
Discharge connection angle [=C2=B0]
90 =C2=B0
Discharge connection comments
Rubber plug
Discharge connection height [mm]
378 mm
Discharge connection material
Copper
Discharge connection pipe size [in]
1/2 in
Discharge connection size [in]
1/2 in
Drawing number
8590076
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Family
VZH
Fitting standard
ODF
Frequency [Hz]
15 - 100
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
0.5 L
High value of nominal voltage at 50Hz [V]
480 V
High value of nominal voltage at 60Hz [V]
480 V
High value of voltage range at 50Hz [V]
528 V
High value of voltage range at 60Hz [V]
528 V
IP protection class
IP22
Liquid injection
No
Low Side TS Max
55 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
3.2 L
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
380 V
Low value of voltage range at 50Hz [V]
342 V
Low value of voltage range at 60Hz [V]
342 V
Max pressure (PS) - high side
45 bar
Max pressure (PS) - low side
33.3 bar
Maximum Operating Current [MOC]
12.4 A
Model number
VZH035CGAMB
Motor protection
Motor protection by frequency converter
Mounting torque [Nm]
11 N-m
Network power supply [V/Ph/Hz]
380-415/3/50 460/3/60
Number of starts per hour [Max]
12
Oil charge [L]
1.41 L
Oil equalization
1-3/4'' Rotolock
Oil level switch port
No
Oil reference
POE46-RL46HB
Oil type
POE
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Spade
Product group
Hermetic compressors
Product Name Description
Scroll compressor VZH
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
3.6 kg
Refrigerants
R410A,R452B,R454B
Rotational speed at 50Hz [rpm]
3000 rpm
Rotational speed at 60Hz [rpm]
3600 rpm
SCIP dossier no.
deb70449-6157-4db7-8763-870ef07e3ff5
SCIP dossier product name
VZH028-044 / VLZ028-044
Segment usage
Air conditioning
Suction connection angle [=C2=B0]
90 =C2=B0
Suction connection height [mm]
249 mm
Suction connection material
Copper
Suction connection pipe size [in]
3/4 in
Suction connection size [in]
3/4 in
Swept volume [cm3]
34.9 cm=C2=B3
Technology
Scroll
Torque earth [Nm]
2 N-m
Total height [mm]
421 mm
Type
VZH035M
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
46 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
0.71 Ohms
120Z0890
Crankcase heater, Belt heater
120Z0893
Crankcase heater, Belt heater
120Z0895
Crankcase heater, Belt heater
8156019
Connector, Sight glass
8156129
Connector, Gasket
120Z0126
Connector, Solder sleeve adapter set
120Z0560
Electrical component, Oil Level sensor
120Z0648
Lubricant, 215PZ
120Z0126
Connector, Solder sleeve adapter set
120Z0366
Connector, Rotolock adapter
120Z5015
Electrical component, Terminal box
120Z0326
Frequency converter, LCP
120Z0581
Frequency converter, LCP
120Z0582
Frequency converter, Decoupling
120Z0617
Frequency converter, LCP
120Z0803
Electrical component, Oil Level sensor
120Z0804
Electrical component, Oil Level sensor
120Z5083
Acoustic hood, Scroll
