120H0001

Part Number: 120H0001
120H0001
Manufacturer
Danfoss
Part number
120H0001
Category

Product Information

Extended Description

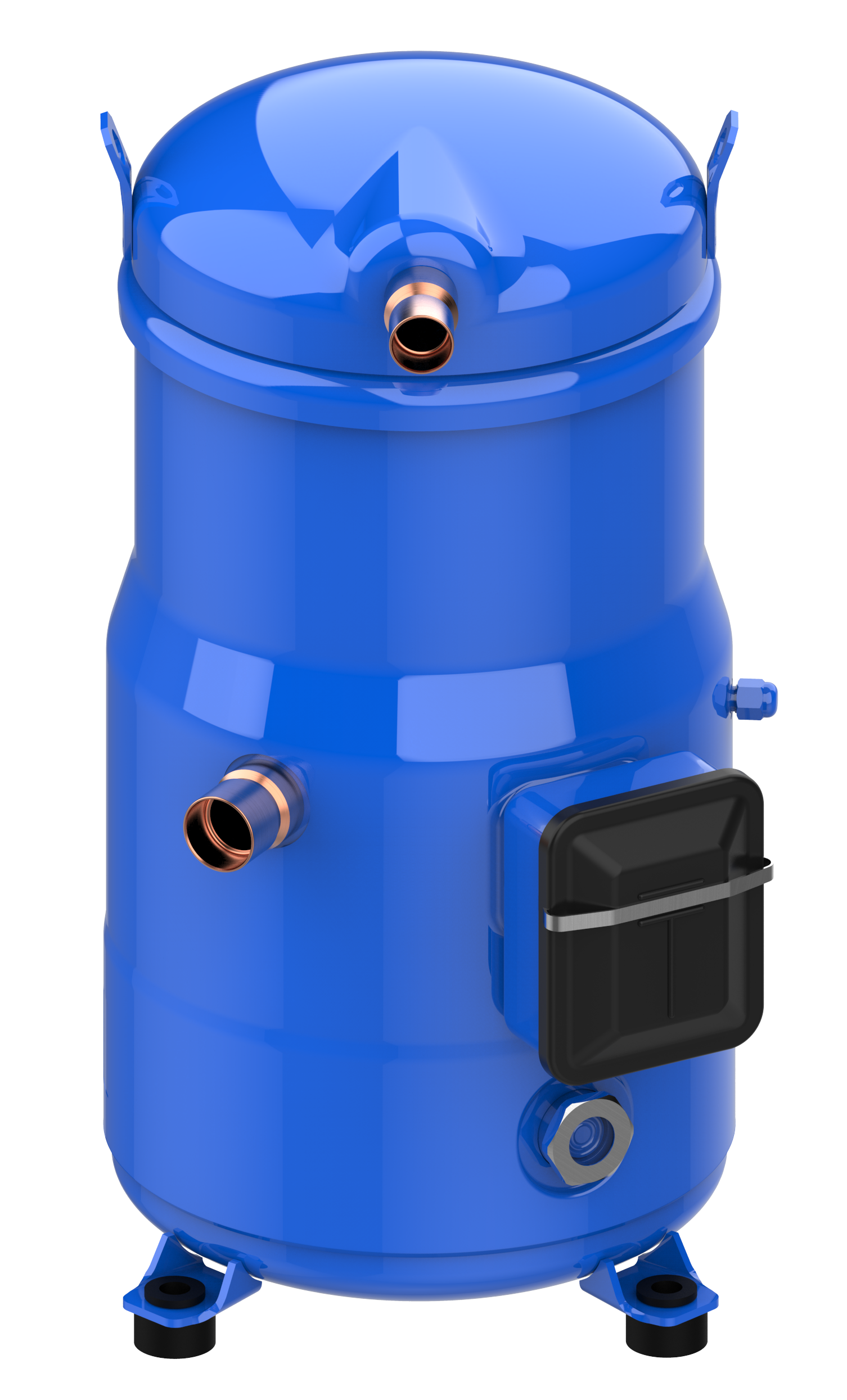

120H0001 Danfoss: Refrigerants: R410A, Segment usage: Air conditioning, Compressor power supply [V]: 200-230/3/60, Packing format: Single pack
Gross weight
61.91 Kilogram
Net weight
58 Kilogram
Volume
0.23 Cubic meter
EAN
5702428980890
Approval
CE,UL,UKCA
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
200-230/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
SH090-3
Diameter [mm]
243 mm
Discharge connection height [mm]
451 mm
Discharge connection pipe size [in]
7/8 in
Discharge connection size [in]
7/8 in
Drawing number
8560004
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Factory HP [bar]
0 bar
Factory LP [bar]
0 bar
Family
SH
Fitting standard
ODF
Frequency [Hz]
60
Gauge port HP
None
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
0.7 L
High value of nominal voltage at 60Hz [V]
230 V
High value of voltage range at 60Hz [V]
253 V
IP protection class
IP54 (with cable gland)
Low Side TS Max
55 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
11.7 L
Low value of nominal voltage at 60Hz [V]
200 V
Low value of voltage range at 60Hz [V]
180 V
LRA
203 A
Max pressure (PS) - high side
48.7 bar
Max pressure (PS) - low side
33.3 bar
Maximum Operating Current [MOC]
38 A
MCC
43 A
Model number
SH090A3ALC
Motor protection
Internal overload protector
Mounting torque [Nm]
15 N-m
Network power supply [V/Ph/Hz]
208-230/3/60
Number of starts per hour [Max]
12
Oil charge [L]
3 L
Oil equalization
1-3/4"Rotolock
Oil reference
160SZ
Oil type
POE
Packaging height [mm]
596 mm
Packaging length [mm]
470 mm
Packaging weight [Kg]
60 kg
Packaging width [mm]
370 mm
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Screw 4.8 mm
Product group
Hermetic compressors
Product Name Description
Scroll compressor SH
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
5.9 kg
Refrigerants
R410A
RLA
30.7 A
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
bff3e2c3-5aad-40f0-b874-7eee67aaf788
SCIP dossier product name
CSHD092-183/DSF090-200/DSH090-184/SH090-184/SJ161/WSH090-184
Segment usage
Air conditioning
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil
Initial oil charge
Suction connection height [mm]
235 mm
Suction connection material
-
Suction connection pipe size [in]
1 1/8 in
Suction connection size [in]
1 1/8 in
Swept volume [cm3]
88.4 cm=C2=B3
Technology
Scroll
Test dif [bar] [Max]
37 bar
Test HP [bar] [Max]
48.7 bar
Test LP [bar] [Max]
33.3 bar
Torque earth [Nm]
2 N-m
Torque power [Nm]
3 N-m
Total height [mm]
482 mm
Type
SH090
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
0.39 Ohm
120Z0388
Crankcase heater, Surface sump heater
8168030
Connector, Rotolock service valve
8168028
Connector, Rotolock service valve
120Z0389
Crankcase heater, Surface sump heater
7754023
Lubricant, 160SZ
8156009
Connector, Gasket
8156132
Connector, Gasket
7750009
Electrical component, Discharge thermostat kit
8153004
Connector, Solder sleeve
120Z0125
Connector, Solder sleeve adapter set
8173230
Electrical component, T block
120Z0066
Mounting, Compressor kit
8156135
Electrical component, Terminal box
120Z0034
Acoustic hood, Scroll
