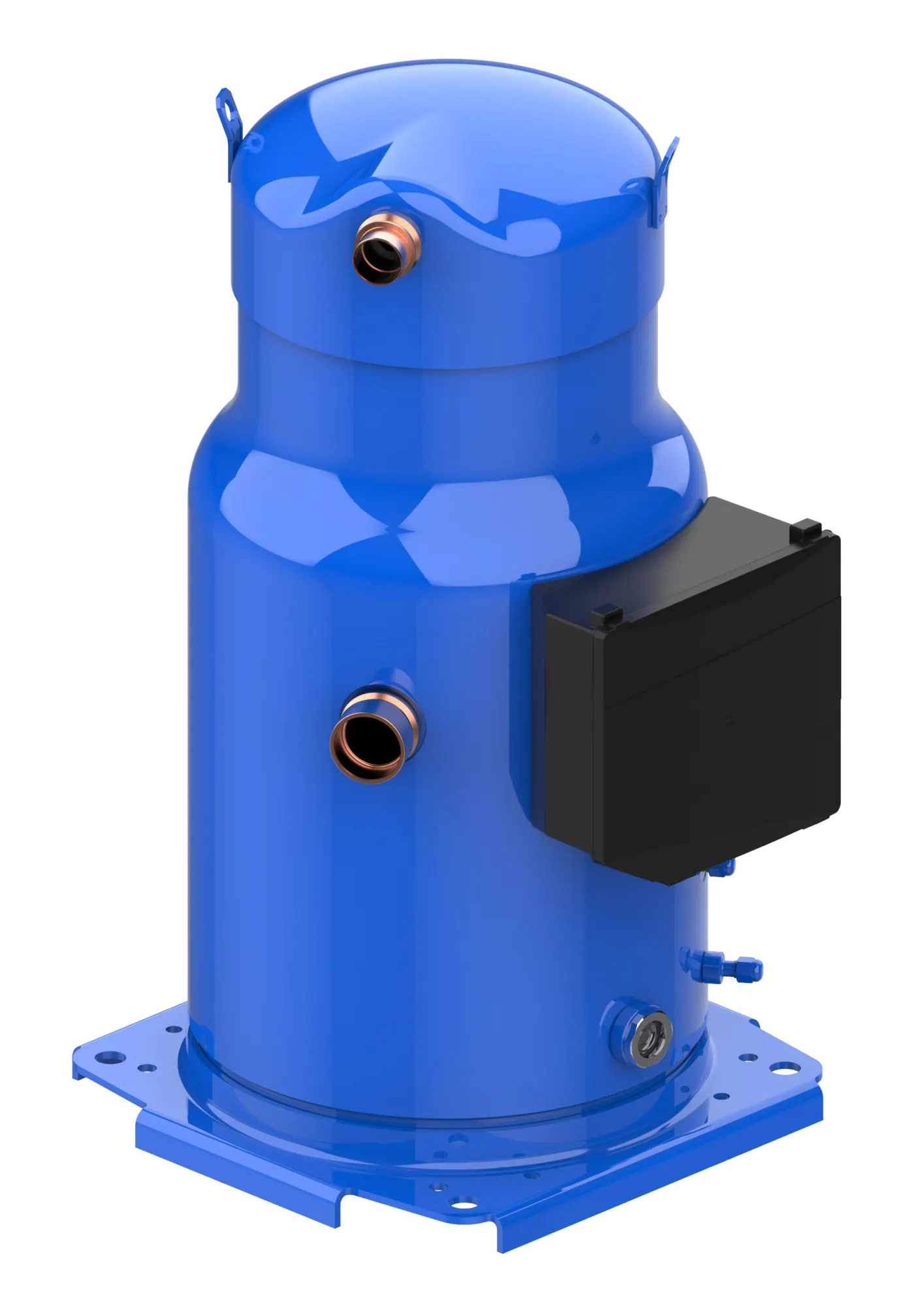

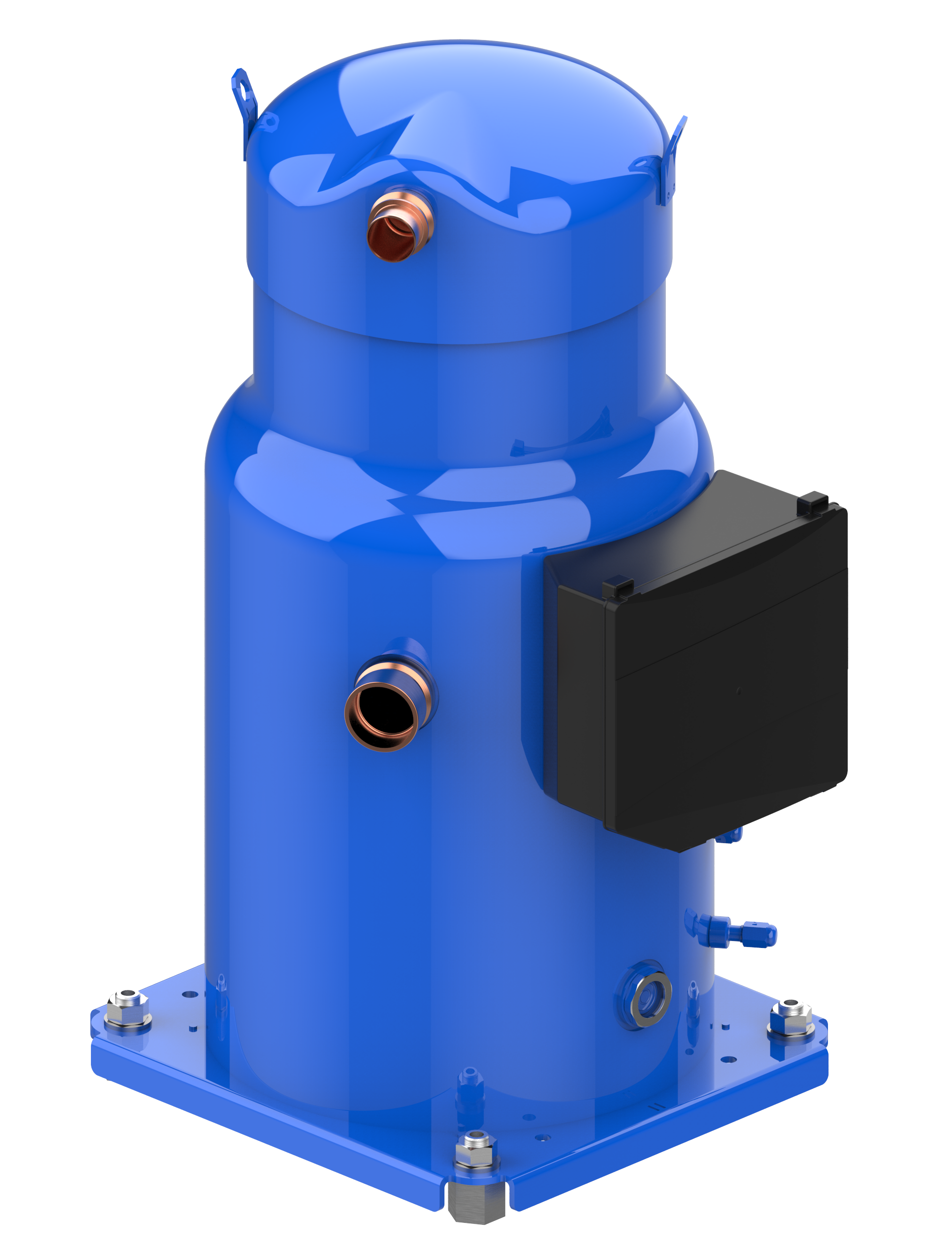

120H0827

Part Number: 120H0827
120H0827
Manufacturer
Danfoss
Part number
120H0827
Category

Product Information

Extended Description

120H0827 Danfoss: Refrigerants: R410A, Segment usage: Air conditioning, Compressor power supply [V]: 380-415/3/50 460/3/60, Packing format: Single pack
Gross weight
116.55 Kilogram
Net weight
111 Kilogram
Volume
0.23 Cubic meter
EAN
5702428585231
Approval
CE,UL,UKCA
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
380-415/3/50 460/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
SH295-4
Diameter [mm]
318 mm
Discharge connection height [mm]
618 mm
Discharge connection pipe size [in]
1 1/8 in
Discharge connection size [in]
1 1/8 in
Drawing number
8556208
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Factory HP [bar]
0 bar
Factory LP [bar]
0 bar
Family
SH
Fitting sleeve
ODF
Fitting standard
ODF
Frequency [Hz]
50/60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
2.5 L
High value of nominal voltage at 50Hz [V]
415 V
High value of nominal voltage at 60Hz [V]
460 V
High value of voltage range at 50Hz [V]
457 V
High value of voltage range at 60Hz [V]
506 V
IP protection class
IP54 (with cable gland)
Low Side TS Max
52 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
28.5 L
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
460 V
Low value of voltage range at 50Hz [V]
340 V
Low value of voltage range at 60Hz [V]
414 V
LRA
260 A
Max pressure (PS) - high side
48.7 bar
Max pressure (PS) - low side
31.1 bar
MCC
62 A
Model number
SH295A4ABF
Motor protection
Electronic protection module, 110/240 V
Mounting torque [Nm]
21 N-m
Network power supply [V/Ph/Hz]
380-415/3/50 460/3/60
Number of starts per hour [Max]
12
Oil charge [L]
6.1 L
Oil drain
1/4'' flare
Oil drain torque [Nm]
35 N-m
Oil equalization
2-1/4'' Rotolock
Oil reference
160SZ
Packaging height [mm]
698 mm
Packaging length [mm]
470 mm
Packaging weight [Kg]
119 kg
Packaging width [mm]
400 mm
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Stud M5
Product group
Hermetic compressors
Product Name Description
Scroll compressor SH
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
13.5 kg
Refrigerants
R410A
Reverse rotation protection
Electronic module
RLA
44.3 A
Rotational speed at 50Hz [rpm]
2900 rpm
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
eeb683f7-470d-4d35-aa2c-d86e918b529b
Segment usage
Air conditioning
Shipped instructions
Installation instructions
Shipped module
Electronic protection module mounted in terminal box
Shipped mounting
Mounting kit with rigid grommets, bolts, nuts, sleeves and washers
Shipped oil
Initial oil charge
Suction connection height [mm]
302 mm
Suction connection material
-
Suction connection pipe size [in]
1 5/8 in
Suction connection size [in]
1 5/8 in
Swept volume [cm3]
276.2 cm=C2=B3
Technology
Scroll
Test dif [bar] [Max]
37 bar
Test HP [bar] [Max]
48.7 bar
Test LP [bar] [Max]
34.3 bar
Torque earth [Nm]
4 N-m
Torque power [Nm]
3 N-m
Total height [mm]
653 mm
Type
SH295
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
0.56 Ohm
8156129
Connector, Gasket
120Z0464
Crankcase heater, Belt heater
120Z0364
Connector, Rotolock adapter
8168028
Connector, Rotolock service valve
120Z0585
Electrical component, Motor protection module
120Z0432
Connector, Rotolock adapter
8168026
Connector, Rotolock service valve
8156019
Connector, Sight glass
8156138
Mounting, Compressor kit
7773118
Crankcase heater, Belt heater
8153004
Connector, Solder sleeve
120Z0774
Electrical component, T block
8156013
Connector, Gasket
8156133
Connector, Gasket
120Z0022
Acoustic hood, Scroll
120Z0458
Electrical component, Terminal box
7750009
Electrical component, Discharge thermostat kit
120Z0495
Mounting, Compressor kit
8156132
Connector, Gasket
8153006
Connector, Solder sleeve
