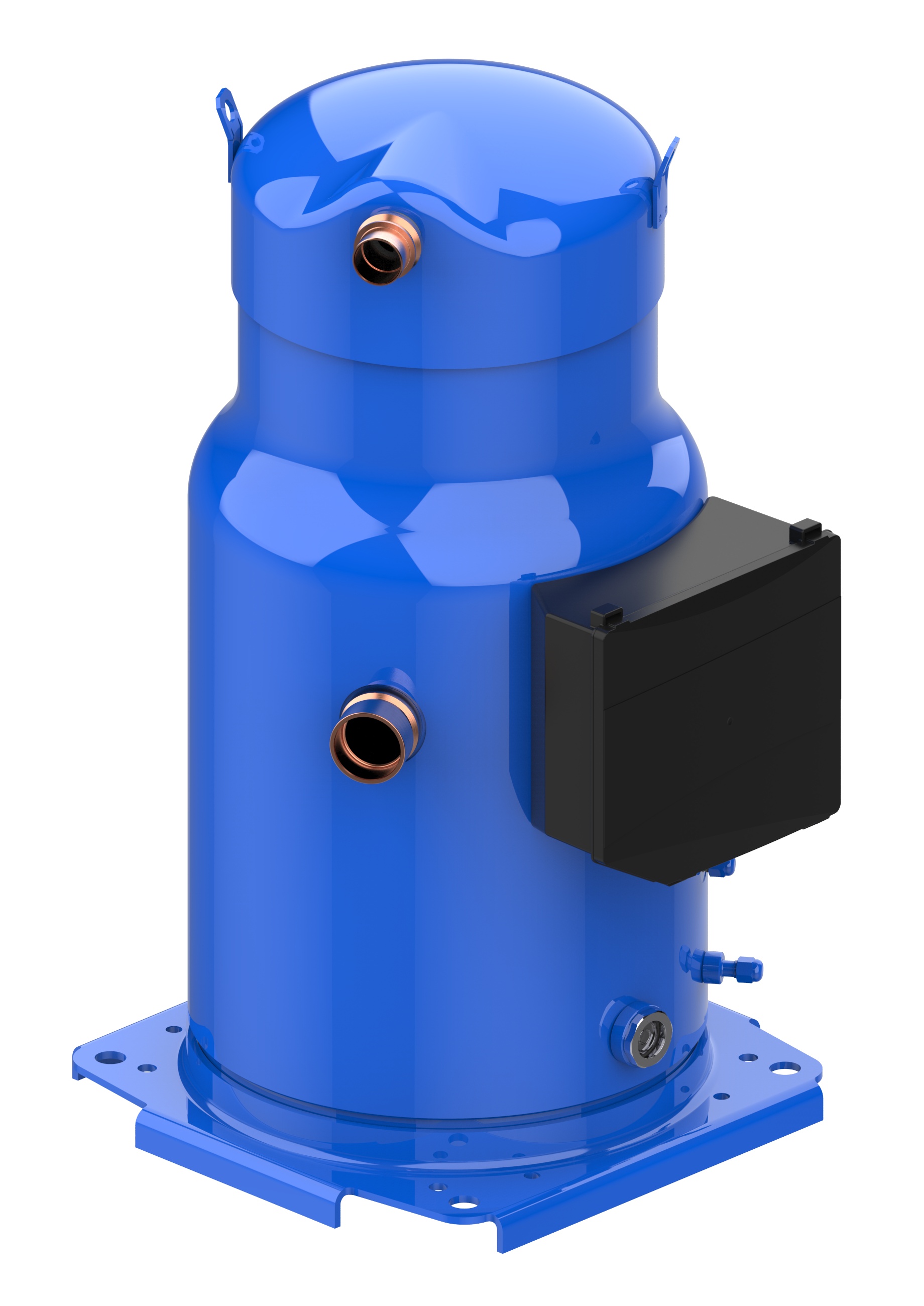

120H1376

Part Number: 120H1376
120H1376
Manufacturer
Danfoss
Part number
120H1376
Category

Product Information

Extended Description

120H1376 Danfoss: Refrigerants: R452B; R410A; R454B, Segment usage: Air conditioning, Compressor power supply [V]: 380-415/3/50 460/3/60, Packing format: Single pack
Gross weight
119 Kilogram
Net weight
112 Kilogram
Volume
590.63 Liter
EAN
5702428654050
Approval
CE,UL,UKCA

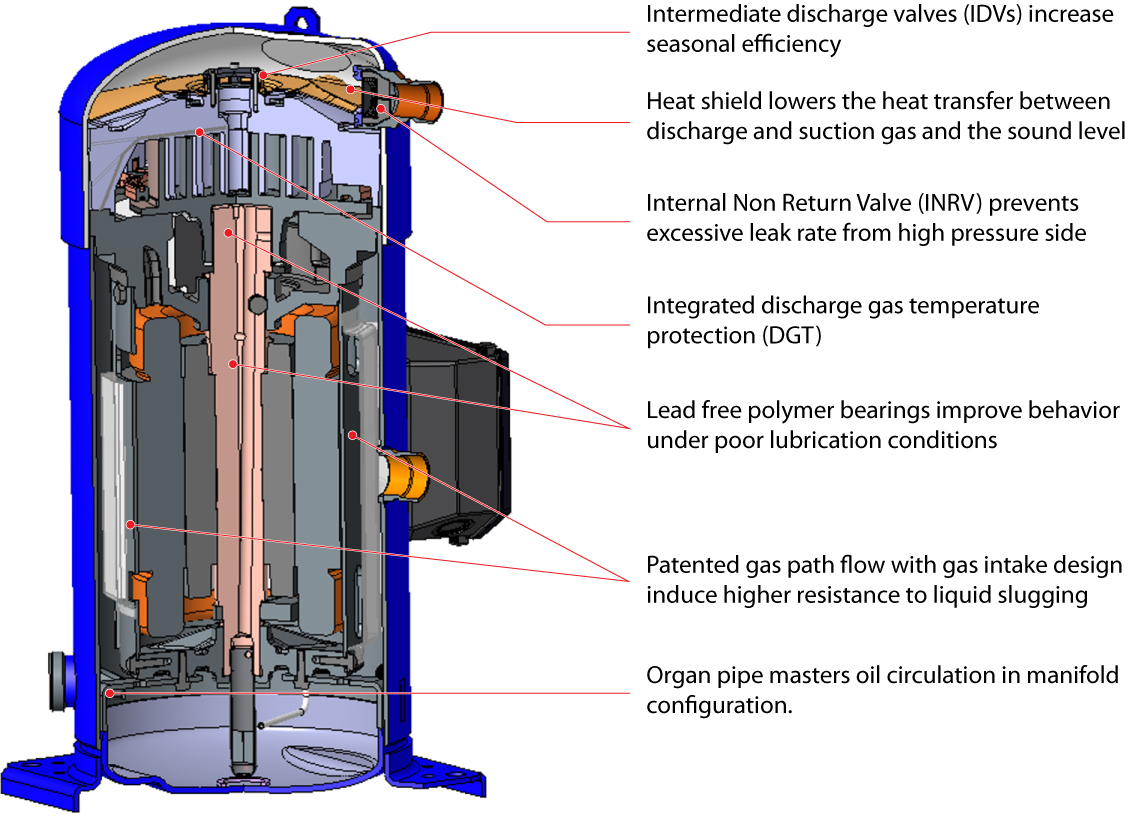

Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
380-415/3/50 460/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
DSH240-4
Diameter [mm]
318 mm
Discharge connection height [mm]
618 mm
Discharge connection pipe size [in]
1 1/8 in
Discharge connection size [in]
1 1/8 in
Drawing number
8556208
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Family
DSH
Fitting sleeve
ODF
Fitting standard
ODF
Frequency [Hz]
50/60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
2.9 L
High value of nominal voltage at 50Hz [V]
415 V
High value of nominal voltage at 60Hz [V]
460 V
High value of voltage range at 50Hz [V]
457 V
High value of voltage range at 60Hz [V]
506 V
IP protection class
IP54 (with cable gland)
Liquid injection
No
Low Side TS Max
52 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
27.5 L
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
460 V
Low value of voltage range at 50Hz [V]
342 V
Low value of voltage range at 60Hz [V]
414 V
LRA
227 A
Max pressure (PS) - high side
48.7 bar
Max pressure (PS) - low side
31.2 bar
Maximum Operating Current [MOC]
49 A
MCC
51 A
Model number
DSH240B4AXC
Motor protection
Electronic protection module, 24 V ac
Network power supply [V/Ph/Hz]
380-415/3/50 460/3/60
Number of starts per hour [Max]
12
Oil charge [L]
6.1 L
Oil drain
1/4'' flare
Oil drain torque [Nm]
35 N-m
Oil equalization
2-1/4'' Rotolock
Oil reference
160SZ
Oil type
POE
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Stud M5
Product group
Hermetic compressors
Product Name Description
Scroll compressor DSH
Refrigerant charge [kg] [Max]
15 kg
Refrigerants
R410A,R452B,R454B
Reverse rotation protection
Electronic module
RLA
36 A
Rotational speed at 50Hz [rpm]
2900 rpm
Rotational speed at 60Hz [rpm]
3500 rpm
Segment usage
Air conditioning
Suction connection height [mm]
302 mm
Suction connection material
-
Suction connection pipe size [in]
1 5/8 in
Suction connection size [in]
1 5/8 in
Swept volume [cm3]
227.6 cm=C2=B3
Technology
Scroll
Test dif [bar] [Max]
37 bar
Test HP [bar] [Max]
53.6 bar
Test LP [bar] [Max]
34.3 bar
Torque earth [Nm]
4 N-m
Torque power [Nm]
3 N-m
Total height [mm]
653 mm
Type
DSH240
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
0.7 Ohm
7703383
Connector, Valve set
8156129
Connector, Gasket
7750009
Electrical component, Discharge thermostat kit
120Z0364
Connector, Rotolock adapter
8156019
Connector, Sight glass
7773108
Crankcase heater, Belt heater
8168026
Connector, Rotolock service valve
120Z0571
Lubricant, 160SZ
120Z0464
Crankcase heater, Belt heater
120Z0584
Electrical component, Motor protection module
7773118
Crankcase heater, Belt heater
8156013
Connector, Gasket
120Z0464
Crankcase heater, Belt heater
8156138
Mounting, Compressor kit
7773108
Crankcase heater, Belt heater
120Z0458
Electrical component, Terminal box
7973005
Crankcase heater, Belt heater
8153004
Connector, Solder sleeve
120Z0774
Electrical component, T block
7765028
Connector, Solder sleeve adapter set
