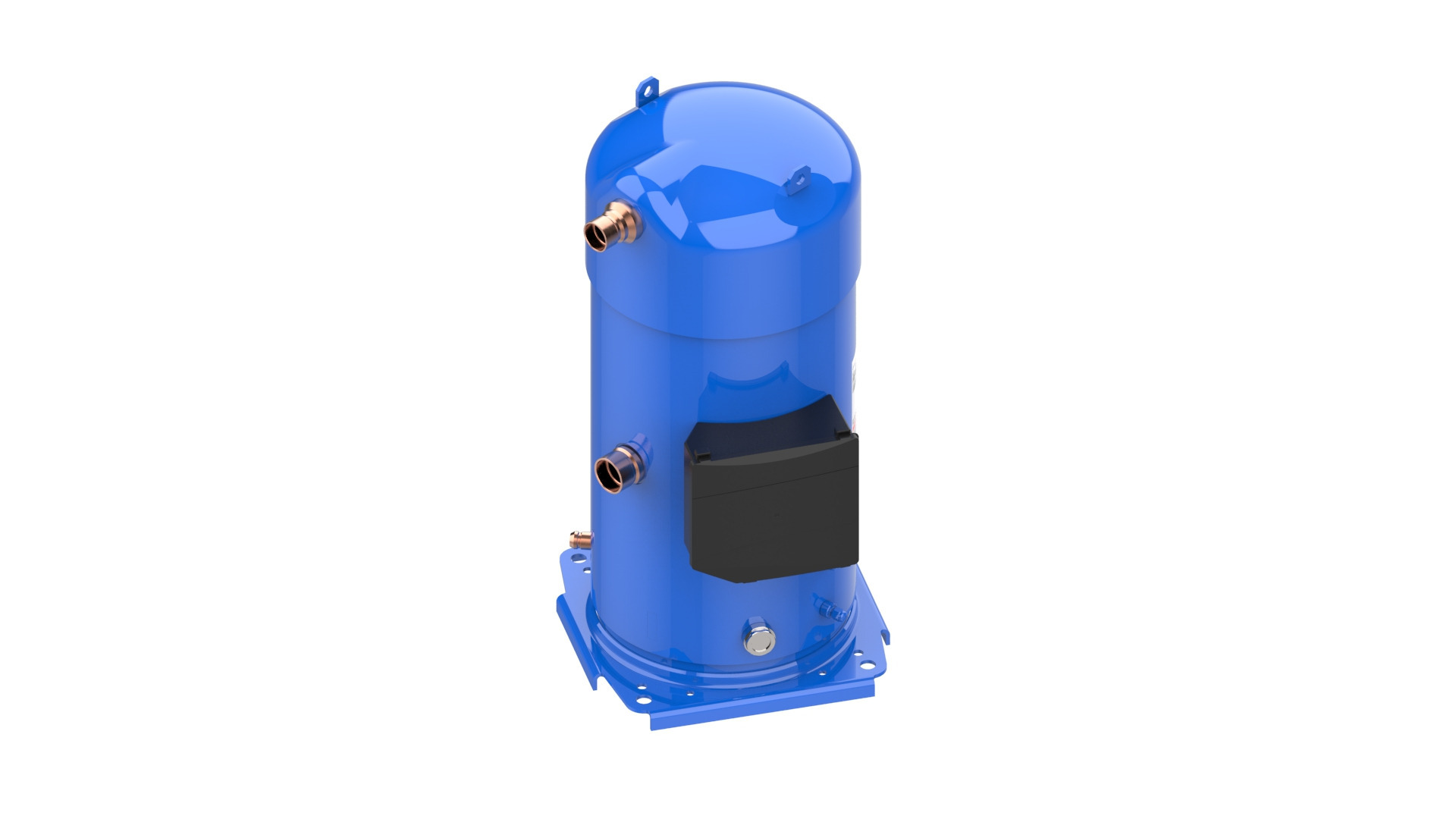

120H1472

Part Number: 120H1472
120H1472
Manufacturer
Danfoss
Part number
120H1472
Category

Product Information

Extended Description

120H1472 Danfoss: Refrigerants: R410A, Segment usage: Heating, Compressor power supply [V]: 380/3/50, Packing format: Industrial pack
Gross weight
186 Kilogram
Net weight
179 Kilogram
Volume
0.225 Cubic meter
EAN
5702424542160
Brand technique
Scroll compressor
Capacity control
Fixed speed
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
380/3/50
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
PSH105-8
Diameter [mm]
333 mm
Discharge connection height [mm]
697 mm
Discharge connection pipe size [in]
1 3/8 in
Discharge connection size [in]
1 3/8 in
Drawing number
8556300
Economizer
Yes
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Family
PSH
Fitting standard
ODF
Frequency [Hz]
50
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
Height economiser [mm]
123.5 mm
Height from baseplate [mm]
726 mm
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
3.8 L
High value of nominal voltage at 50Hz [V]
380 V
High value of voltage range at 50Hz [V]
418 V
IP protection class
IP54 (with cable gland)
Low Side TS Max
52 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
28.2 L
Low value of nominal voltage at 50Hz [V]
380 V
Low value of voltage range at 50Hz [V]
342 V
Max pressure (PS) - high side
48.7 bar
Max pressure (PS) - low side
31.1 bar
Maximum Operating Current [MOC]
91 A
Model number
PSH105A8VBA
Motor protection
Electronic protection module, 110/240 V
Mounting length [mm]
305 mm
Mounting torque [Nm]
55 N-m
Mounting width [mm]
279 mm
Network power supply [V/Ph/Hz]
380-415/3/50 460/3/60
Number of starts per hour [Max]
12
Oil charge [L]
6.1 L
Oil drain
1/4" flare
Oil equalization
2-1/4" Rotolock
Oil reference
160SZ
Packing format
Industrial pack
Packing quantity
4
Phase
3
Power connections
Stud M5
Product group
Hermetic compressors
Product Name Description
Scroll compressor PSH
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
17 kg
Refrigerants
R410A
Reverse rotation protection
Electronic module
RLA
65 A
Rotational speed at 50Hz [rpm]
2900 rpm
SCIP dossier no.
1eb5dcf9-302f-45ef-a79f-2678b68e75f2
SCIP dossier product name
PSH052-105
Segment usage
Heating
Suction connection height [mm]
333 mm
Suction connection pipe size [in]
1 5/8 in
Suction connection size [in]
1 5/8 in
Swept volume [cm3]
442.6 cm=C2=B3
Technology
Scroll
Torque earth [Nm]
4 N-m
Torque power [Nm]
3 N-m
Total height [mm]
756 mm
Type
PSH105
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
Viscosity [cP]
32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
0.28 Ohm
8156129
Connector, Gasket
120Z0571
Lubricant, 160SZ
8156019
Connector, Sight glass
8156138
Mounting, Compressor kit
7773108
Crankcase heater, Belt heater
7773118
Crankcase heater, Belt heater
7754023
Lubricant, 160SZ
8168028
Connector, Rotolock service valve
8153124
Connector, Rotolock nut
8153003
Connector, Solder sleeve
8156133
Connector, Gasket
120Z0774
Electrical component, T block
120Z0504
Connector, Solder sleeve adapter set
8153126
Connector, Rotolock nut
120Z0431
Connector, Rotolock adapter
7956003
Connector, Gasket
7956004
Connector, Gasket
