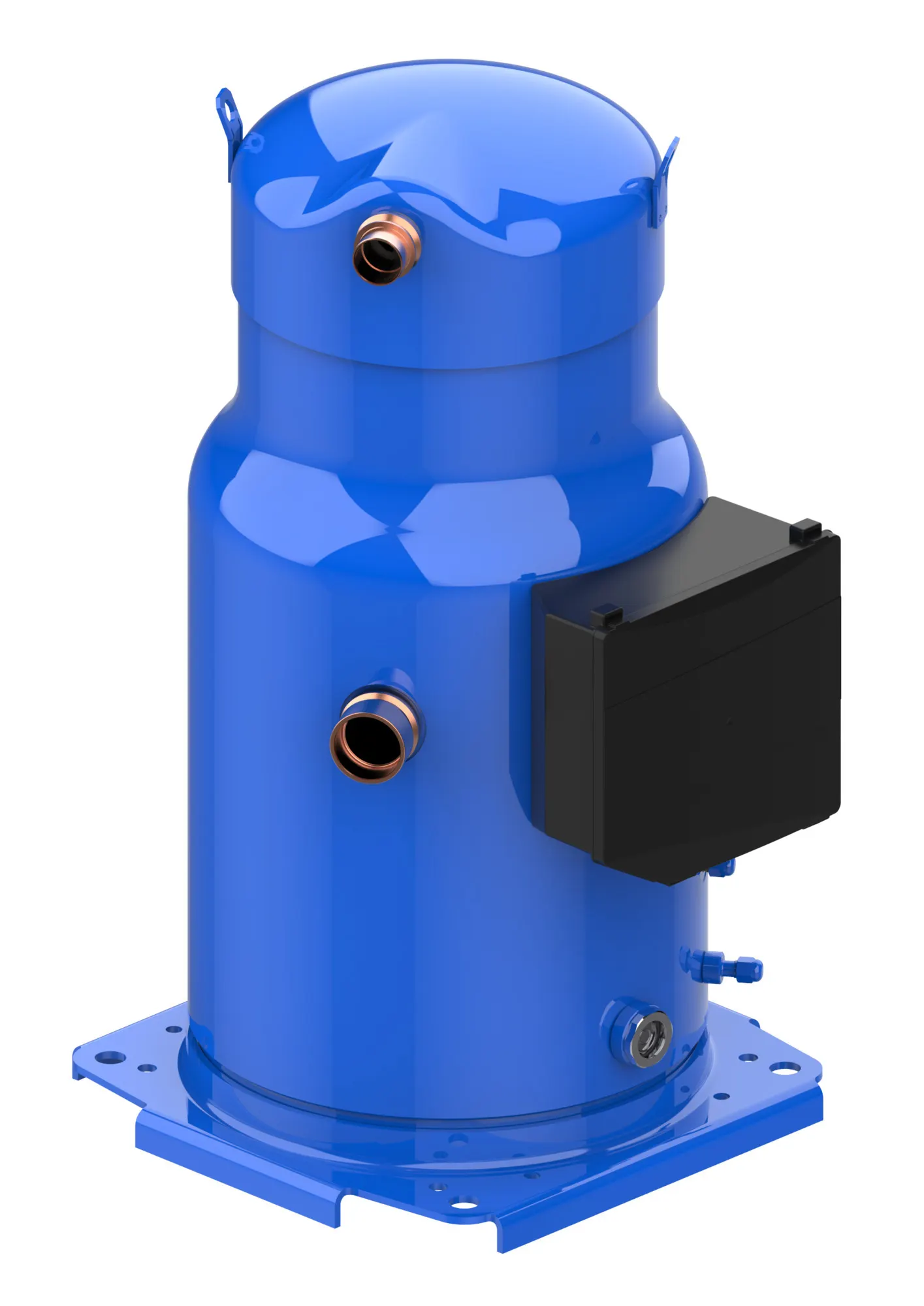

120H1735

Part Number: 120H1735
120H1735
Manufacturer
Danfoss
Part number
120H1735
Category

Product Information

Extended Description

120H1735 Danfoss: Refrigerants: R452B; R410A; R454B, Segment usage: Air conditioning, Compressor power supply [V]: 575/3/60, Packing format: Single pack
Gross weight
114.73 Kilogram
Net weight
108 Kilogram
Volume
590.63 Liter
EAN
5702424601218
Approval
CE,UL,UKCA
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
575/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
DSH240-7
Diameter [mm]
318 mm
Discharge connection height [mm]
618 mm
Discharge connection pipe size [in]
1 1/8 in
Discharge connection size [in]
1 1/8 in
Drawing number
8556208
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Family
DSH
Fitting sleeve
ODF
Fitting standard
ODF
Frequency [Hz]
60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
2.9 L
High value of nominal voltage at 60Hz [V]
575 V
High value of voltage range at 60Hz [V]
632 V
IP protection class
IP54 (with cable gland)
Liquid injection
No
Low Side TS Max
52 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
27.5 L
Low value of nominal voltage at 60Hz [V]
575 V
Low value of voltage range at 60Hz [V]
517 V
LRA
175 A
Max pressure (PS) - high side
48.7 bar
Max pressure (PS) - low side
31.2 bar
Maximum Operating Current [MOC]
38 A
MCC
41 A
Model number
DSH240B7APC
Motor protection
Electronic protection module, 115/230 V
Network power supply [V/Ph/Hz]
500/3/50 575/3/60
Number of starts per hour [Max]
12
Oil charge [L]
6.1 L
Oil drain
1/4'' flare
Oil drain torque [Nm]
35 N-m
Oil equalization
2-1/4'' Rotolock
Oil reference
160SZ
Oil type
POE
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Stud M5
Product group
Hermetic compressors
Product Name Description
Scroll compressor DSH
Refrigerant charge [kg] [Max]
15 kg
Refrigerants
R410A,R452B,R454B
Reverse rotation protection
Electronic module
RLA
28 A
Rotational speed at 60Hz [rpm]
3500 rpm
Segment usage
Air conditioning
Suction connection height [mm]
302 mm
Suction connection material
-
Suction connection pipe size [in]
1 5/8 in
Suction connection size [in]
1 5/8 in
Swept volume [cm3]
227.6 cm=C2=B3
Technology
Scroll
Test dif [bar] [Max]
37 bar
Test HP [bar] [Max]
53.6 bar
Test LP [bar] [Max]
34.3 bar
Torque earth [Nm]
4 N-m
Torque power [Nm]
3 N-m
Total height [mm]
653 mm
Type
DSH240
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
0.94 Ohm
8156019
Connector, Sight glass
120Z0585
Electrical component, Motor protection module
8156129
Connector, Gasket
120Z0465
Crankcase heater, Belt heater
120Z0571
Lubricant, 160SZ
7754023
Lubricant, 160SZ
120Z0495
Mounting, Compressor kit
8156133
Connector, Gasket
120Z0774
Electrical component, T block
120Z0022
Acoustic hood, Scroll
8156138
Mounting, Compressor kit
120Z0458
Electrical component, Terminal box
120Z0768
Acoustic hood, Scroll

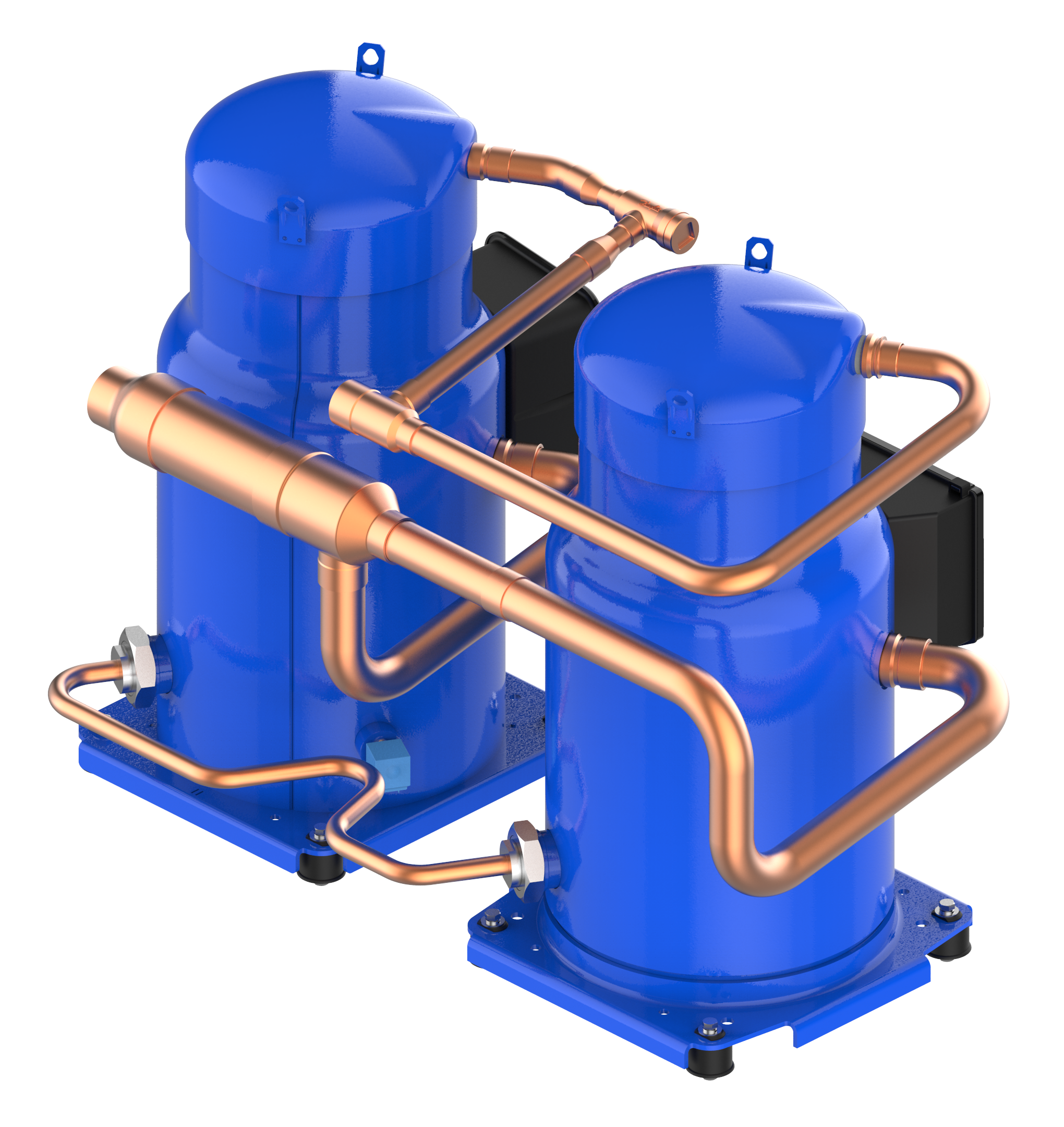

Inverter scroll compressors VZH hybrid manifold VZH Gen3+DSH Inverter scroll compressors VZH hybrid manifold VZH Gen3+DSH - R410A Scroll compressors, type DSH090 to DSH600 DSH cut sheet Spare parts and accessories Danfoss Commercial Compressors for hermetic reciprocating and scroll compressors (AC/HP & REF) Exemplar Edifices _ A compendium on energy efficient buildings Brazing for large and medium compressor connectors Instructions Danfoss scroll compressors DSH / SM / SY / SZ / SH / WSH Safety data sheet, Polyolester oil 160SZ - English - July 2024 Lab tests scrolls with IDVs Danfoss EU 8555013 AJ Danfoss EU-UK 8555012 AK Scroll Compressors Danfoss MD 8555014 AD Danfoss MD 8555016 AD Danfoss MD 8555030 AE Danfoss MD 8555032 AD Danfoss MD 8555038 AA UL SA6873 BV CE-0062-PED-D1-DAN 001-22-CHN Rev. A SH180 SH240 DSH240 SH295 DSH295 DSF240 DSF270 DSF295 DSF325 - 8556208 2D PDF DSH424X (DSH184+DSH240) DSH479X (DSH184+DSH295) 2D PDF DSH360X (DSH120+DSH240) DSH456X (DSH161+DSH295) VZH410H - VZH170 + DSH240 - VZH465H - VZH170 + DSH295 - 8556325 - Suction Right - PDF DSH725U (DSH485+DSH240) - DSF800U (DSF270+DSF530) - 8556207 - PDF SH560 (SH180+SH380) SH620 (SH380+SH240) DSH620U (DSH381+DSH240) SH675 (SH380+SH295) DSH675U (DSH381+DSH295) - 8556222 VZH410H - VZH170 + DSH240 - VZH465H - VZH170 + DSH295 - 8556326 - Suction left - PDF VZH410H - VZH170 + DSH240 - 8556325 - Suction Right VZH410H - VZH170 + DSH240 - 8556325 - Suction Right VZH410H - VZH170 + DSH240 - 8556325 - Suction Right
