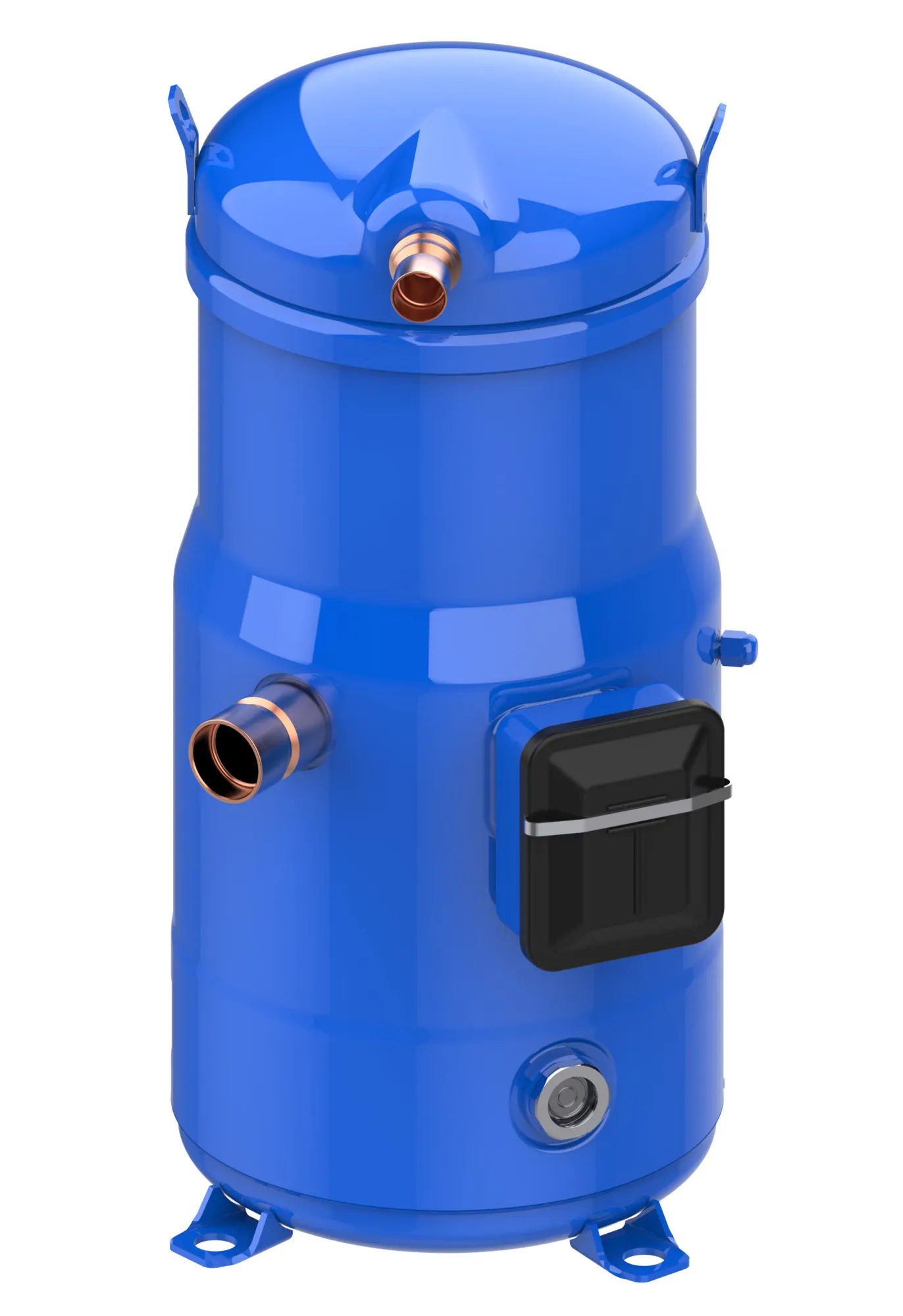

120H1895

Part Number: 120H1895
120H1895
Manufacturer
Danfoss
Part number
120H1895
Category

Product Information

Extended Description

120H1895 Danfoss: Refrigerants: R32, Segment usage: Air conditioning, Compressor power supply [V]: 208-230/3/60, Packing format: Industrial pack
Gross weight
68 Kilogram
Net weight
64 Kilogram
Volume
0.921 Cubic meter
EAN
5702424644123
Approval
CE,UL,UKCA
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
208-230/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
DSF115-3
Diameter [mm]
243 mm
Discharge connection height [mm]
509 mm
Discharge connection pipe size [in]
7/8 in
Discharge connection size [in]
7/8 in
Drawing number
8560177
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Family
DSF
Fitting standard
ODF
Frequency [Hz]
60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
Height from baseplate [mm]
527 mm
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
0.7 L
High value of nominal voltage at 60Hz [V]
230 V
High value of voltage range at 60Hz [V]
253 V
IP protection class
IP54 (with cable gland)
Length [mm]
230 mm
Liquid injection
No
Low Side TS Max
53 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
13.6 L
Low value of nominal voltage at 60Hz [V]
208 V
Low value of voltage range at 60Hz [V]
187 V
LRA
267 A
Max pressure (PS) - high side
48.7 bar
Max pressure (PS) - low side
32.7 bar
Maximum Operating Current [MOC]
44 A
Model number
DSF115A3ALA
Motor protection
Internal overload protector
Mounting torque [Nm]
15 N-m
Network power supply [V/Ph/Hz]
208-230/3/60
Number of starts per hour [Max]
12
Oil charge [L]
3.3 L
Oil equalization
1-3/4'' Rotolock
Oil reference
185SL
Oil type
POE
Packing format
Industrial pack
Packing quantity
8
Phase
3
Power connections
Screw 4.8 mm
Product group
Hermetic compressors
Product Name Description
Scroll compressor DSF
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
10 kg
Refrigerants
R32
RLA
38 A
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
bff3e2c3-5aad-40f0-b874-7eee67aaf788
SCIP dossier product name
CSHD092-183/DSF090-200/DSH090-184/SH090-184/SJ161/WSH090-184
Segment usage
Air conditioning
Suction connection height [mm]
278 mm
Suction connection material
-
Suction connection pipe size [in]
1 3/8 in
Suction connection size [in]
1 3/8 in
Swept volume [cm3]
103.5 cm=C2=B3
Technology
Scroll
Test dif [bar] [Max]
37 bar
Test HP [bar] [Max]
53.6 bar
Test LP [bar] [Max]
36.7 bar
Torque earth [Nm]
2 N-m
Torque power [Nm]
3 N-m
Total height [mm]
542 mm
Type
DSF115
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
40 cP
Width [mm]
230 mm
Winding resistance for three-phase compressors with identical windings [Ohm]
0.27 Ohm
120Z0888
Lubricant, 185SL
120Z0388
Crankcase heater, Surface sump heater
120Z0389
Crankcase heater, Surface sump heater
8156019
Connector, Sight glass
8156129
Connector, Gasket
8156135
Electrical component, Terminal box
8173230
Electrical component, T block
8156013
Connector, Gasket
8156132
Connector, Gasket
