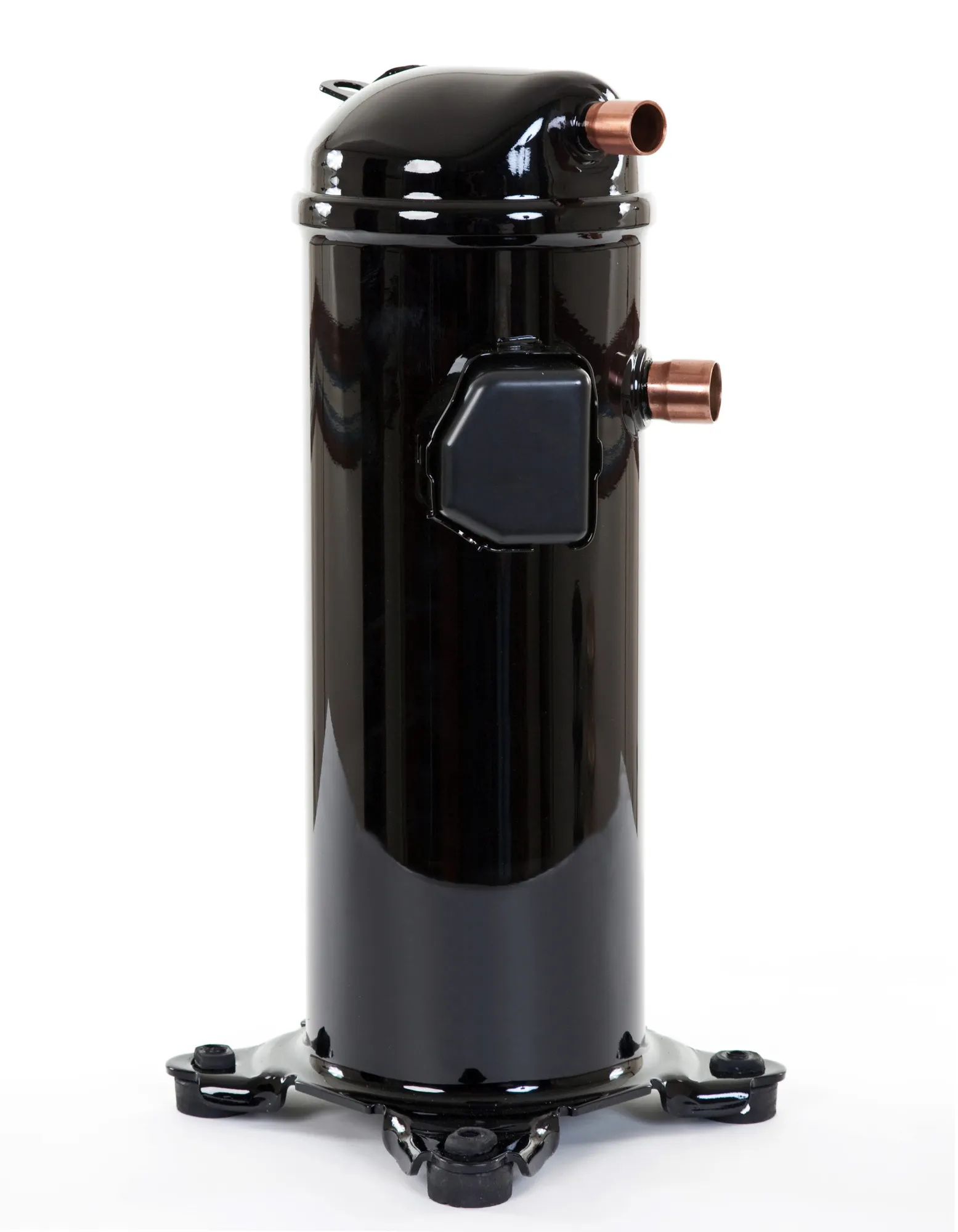

120U1656

Part Number: 120U1656
120U1656
Manufacturer
Danfoss
Part number
120U1656
Category

Product Information

Extended Description

120U1656 Danfoss: Refrigerants: R407C, Segment usage: Air conditioning, Compressor power supply [V]: 380-415/3/50 460/3/60, Packing format: Single pack/pallet
Gross weight
41.5 Kilogram
Net weight
37.5 Kilogram
Volume
42.539 Liter
EAN
5702428224727
Approval
CE,UL,UKCA
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Black
Compressor power supply [V]
380-415/3/50 460/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
HRP048T4
Diameter [mm]
184 mm
Discharge connection height [mm]
422 mm
Discharge connection pipe size [in]
1/2 in
Discharge connection size [in]
1/2 in
Drawing number
0XR6002B-2
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Family
HRP
Fitting standard
ODF
Frequency [Hz]
50/60
Gauge port HP
None
Gauge port LP
None
Gaz equalization
None
Glass mounting
None
High value of nominal voltage at 50Hz [V]
415 V
High value of nominal voltage at 60Hz [V]
460 V
High value of voltage range at 50Hz [V]
457 V
High value of voltage range at 60Hz [V]
506 V
IP protection class
IP22
Length [mm]
239 mm
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
460 V
Low value of voltage range at 50Hz [V]
342 V
Low value of voltage range at 60Hz [V]
414 V
LRA
55.2 A
Max pressure (PS) - high side
31.1 bar
Max pressure (PS) - low side
26.2 bar
MCC
12 A
Model number
HRP048T4LP6
Motor protection
Internal overload protector
Network power supply [V/Ph/Hz]
380-415/3/50 460/3/60
Number of starts per hour [Max]
12
Oil charge [L]
1.57 L
Oil drain
None
Oil equalization
None
Oil reference
320HV
Oil type
PVE
Packing format
Single pack/pallet
Packing quantity
16
Phase
3
Power connections
Spade
Product group
Hermetic compressors
Product Name Description
Scroll compressor HRP
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
5.44 kg
Refrigerants
R407C
RLA
7.7 A
Rotational speed at 50Hz [rpm]
2900 rpm
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
22cfab5a-a26e-446d-9517-3ee5f4753699
Segment usage
Air conditioning
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets and sleeves
Shipped oil
Initial oil charge
Suction connection height [mm]
280 mm
Suction connection material
-
Suction connection pipe size [in]
7/8 in
Suction connection size [in]
7/8 in
Swept volume [cm3]
64.4 cm=C2=B3
Technology
Scroll
Total height [mm]
455 mm
Type
HRP048
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
68 cP
Width [mm]
239 mm
Winding resistance 1-2 [Ohm]
2.6
Winding resistance 1-3 [Ohm]
2.61
Winding resistance 2-3 [Ohm]
2.65
120Z0058
Crankcase heater, Belt heater
120Z0057
Crankcase heater, Belt heater
8168030
Connector, Rotolock service valve
8168031
Connector, Rotolock service valve
120Z0127
Connector, Solder sleeve adapter set
7750009
Electrical component, Discharge thermostat kit
120Z5084
Acoustic hood, Scroll
8156131
Connector, Gasket
8153007
Connector, Solder sleeve
8168030
Connector, Rotolock service valve
118U0056
Electrical component, IP Upgrade kit
120Z5015
Electrical component, Terminal box
120Z5034
Lubricant, 320HV
120Z5064
Mounting, Compressor kit
