121L0363

Part Number: 121L0363
121L0363
Manufacturer
Danfoss
Part number
121L0363
Category

Product Information

Extended Description

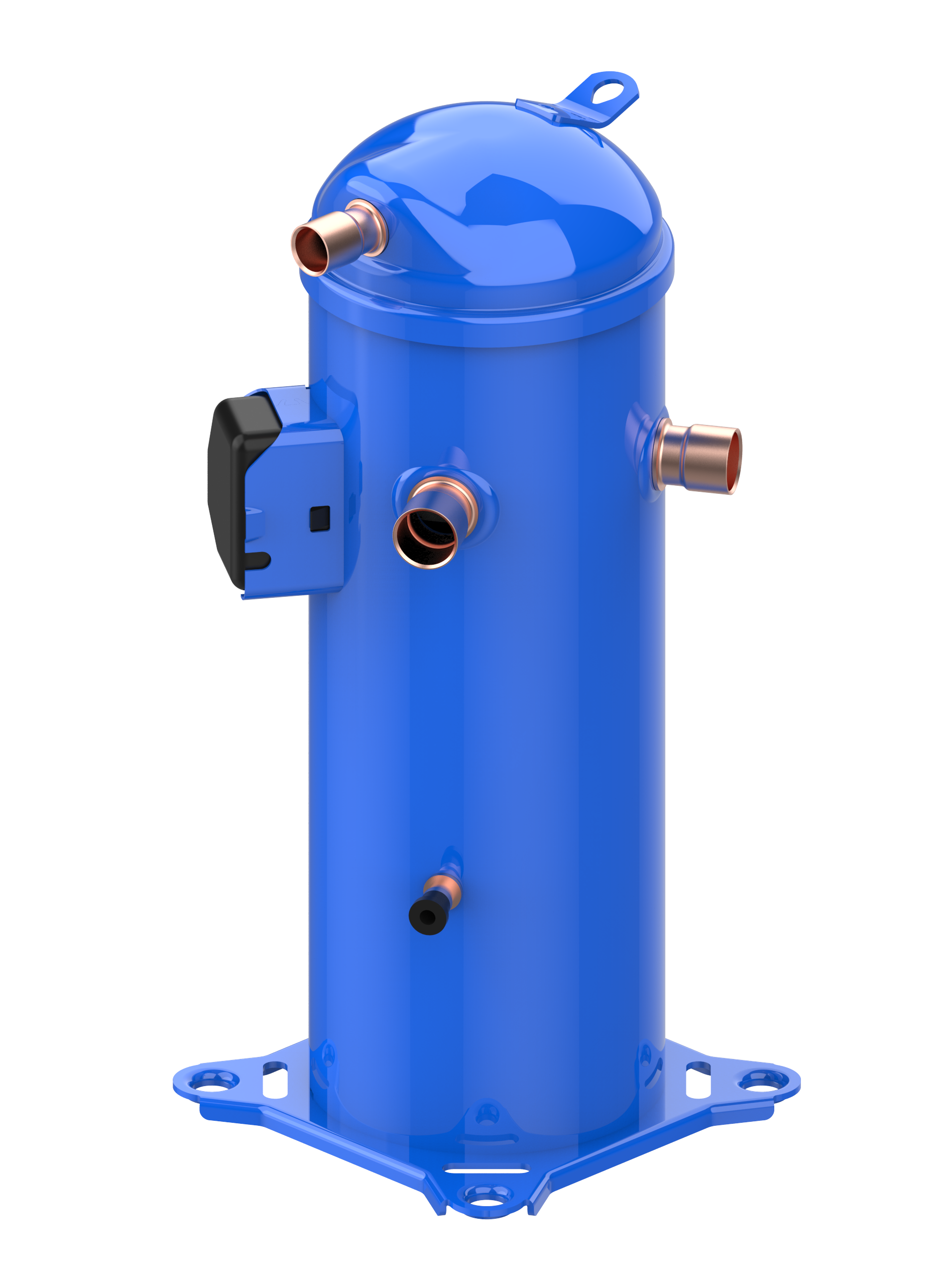

121L0363 Danfoss: Refrigerants: R22, Segment usage: Air conditioning, Compressor power supply [V]: 380-415/3/50 460/3/60, Packing format: Industrial pack
Gross weight
48.05 Kilogram
Net weight
44 Kilogram
Volume
0.06 Cubic meter
EAN
5702424542085
Approval
CE,UL,UKCA
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
380-415/3/50 460/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
HCM109T4
Diameter [mm]
184 mm
Discharge connection height [mm]
519 mm
Discharge connection pipe size [in]
7/8 in
Discharge connection size [in]
7/8 in
Drawing number
0SR4103B-2
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Family
HCM
Fitting standard
ODF
Frequency [Hz]
50/60
Gauge port HP
None
Gauge port LP
None
Gaz equalization
None
Glass mounting
None
High value of nominal voltage at 50Hz [V]
415 V
High value of nominal voltage at 60Hz [V]
460 V
High value of voltage range at 50Hz [V]
457 V
High value of voltage range at 60Hz [V]
506 V
IP protection class
IP22
Length [mm]
232 mm
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
460 V
Low value of voltage range at 50Hz [V]
342 V
Low value of voltage range at 60Hz [V]
414 V
LRA
110 A
Max pressure (PS) - high side
31.1 bar
Max pressure (PS) - low side
26.2 bar
MCC
24 A
Model number
HCM109T4LC6
Motor protection
Internal overload protector
Network power supply [V/Ph/Hz]
380-415/3/50 460/3/60
Oil charge [L]
2.66 L
Oil equalization
None
Oil reference
160ABM
Oil type
Alkylbenzene
Packing format
Industrial pack
Packing quantity
12
Phase
3
Power connections
Screw connectors 10-32 UNF x 9.5
Product group
Hermetic compressors
Product Name Description
Scroll compressor HCM
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
7.26 kg
Refrigerants
R22
RLA
16 A
Rotational speed at 50Hz [rpm]
2900 rpm
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
6987e9ab-f9b7-473c-9c29-6cb05443e8ef
Segment usage
Air conditioning
Suction connection height [mm]
369 mm
Suction connection material
-
Suction connection pipe size [in]
1 1/8 in
Suction connection size [in]
1 1/8 in
Swept volume [cm3]
148.79 cm=C2=B3
Technology
Scroll
Torque earth [Nm]
2 N-m
Torque power [Nm]
3 N-m
Total height [mm]
545 mm
Type
HCM109
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
32 cP
Width [mm]
232 mm
Winding resistance 1-2 [Ohm]
1.33
Winding resistance 1-3 [Ohm]
1.28
Winding resistance 2-3 [Ohm]
1.29
120Z0059
Crankcase heater, Belt heater
120Z0060
Crankcase heater, Belt heater
8168028
Connector, Rotolock service valve
120Z0892
Crankcase heater, Belt heater
120Z0895
Crankcase heater, Belt heater
8168030
Connector, Rotolock service valve
8156132
Connector, Gasket
8168030
Connector, Rotolock service valve
120Z0125
Connector, Solder sleeve adapter set
7750009
Electrical component, Discharge thermostat kit
8153004
Connector, Solder sleeve
118U0057
Electrical component, IP Upgrade kit
120Z5085
Acoustic hood, Scroll
120Z5064
Mounting, Compressor kit
8168028
Connector, Rotolock service valve
8156009
Connector, Gasket
Danfoss scrolls, H-Series Residential and light commercial - R22, R407C, R410A; 50 - 60 Hz Brochure Compressors for A/C bringing Savings now and for a lifetime Spare parts and accessories Danfoss Commercial Compressors for hermetic reciprocating and scroll compressors (AC/HP & REF) Danfoss scroll compressors DCJ / H series Danfoss scrolls, H-Series Residential and light commercial - R22, R407C, R410A; 50 - 60 Hz (USA) Danfoss EU-UK 8555017 AD Scroll Compressors Danfoss MD 8555014 AD Danfoss MD 8555016 AD Danfoss MD 8555030 AE Danfoss MD 8555038 AA UL SA11565 UL SA6873 HCM109 HCM120 HCP109 HCP120 - C6 - 0SR4103B3 HCM109 HCM120 HCP109 HCP120 - C6 - 0SR4103B3 - PDF
