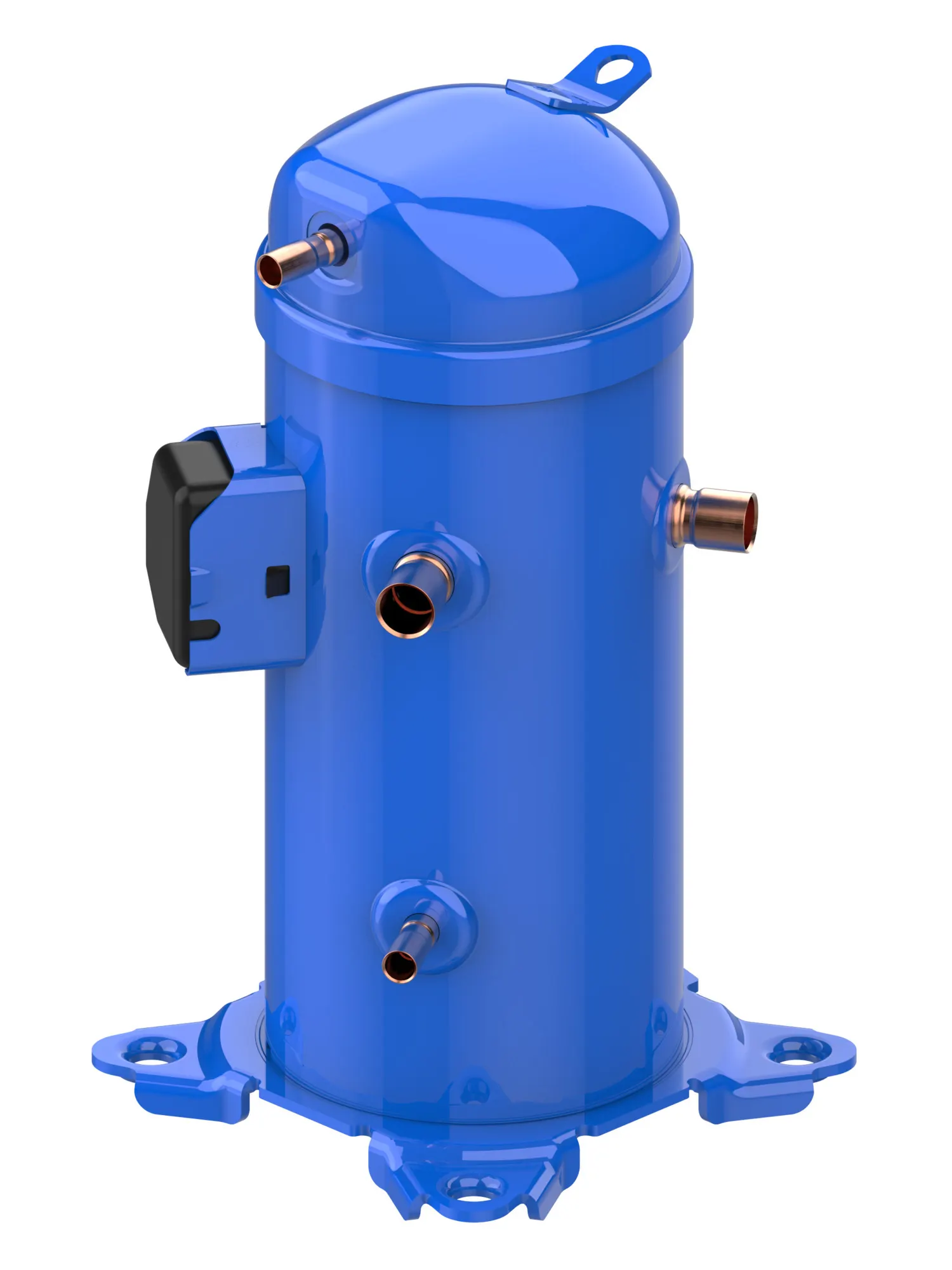

121L2490

Part Number: 121L2490
121L2490
Manufacturer
Danfoss
Part number
121L2490
Category

Product Information

Extended Description

121L2490 Danfoss: Refrigerants: R410A, Segment usage: Air conditioning, Compressor power supply [V]: 575/3/60, Packing format: Single pack
Gross weight
41.99 Kilogram
Net weight
38.93 Kilogram
Volume
0.1 Cubic meter
EAN
5702424065508
Approval
CE,UL,UKCA
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
575/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
HLH061T7
Diameter [mm]
184 mm
Discharge connection height [mm]
422 mm
Discharge connection pipe size [in]
1/2 in
Discharge connection size [in]
1/2 in
Drawing number
0XR6089B-1
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Family
HLH
Fitting standard
ODF
Frequency [Hz]
50/60
Gauge port HP
None
Gauge port LP
None
Gaz equalization
Brazed
Glass mounting
None
High value of nominal voltage at 50Hz [V]
500 V
High value of nominal voltage at 60Hz [V]
575 V
High value of voltage range at 50Hz [V]
550 V
High value of voltage range at 60Hz [V]
632 V
IP protection class
IP22
Length [mm]
239 mm
Low value of nominal voltage at 50Hz [V]
500 V
Low value of nominal voltage at 60Hz [V]
575 V
Low value of voltage range at 50Hz [V]
450 V
Low value of voltage range at 60Hz [V]
517 V
Max pressure (PS) - high side
46.1 bar
Max pressure (PS) - low side
31.1 bar
MCC
12 A
Model number
HLH061T7LC8
Motor protection
Internal overload protector
Network power supply [V/Ph/Hz]
500/3/50 575/3/60
Number of starts per hour [Max]
12
Oil charge [L]
1.57 L
Oil equalization
None
Oil reference
320HV
Oil type
PVE
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Screw connectors 10-32 UNF x 9.5
Product group
Hermetic compressors
Product Name Description
Scroll compressor HLH
Refrigerant charge [kg] [Max]
5.44 kg
Refrigerants
R410A
RLA
7.7 A
Rotational speed at 50Hz [rpm]
2900 rpm
Rotational speed at 60Hz [rpm]
3500 rpm
Segment usage
Air conditioning
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets and sleeves
Shipped oil
Initial oil charge
Suction connection height [mm]
280 mm
Suction connection material
-
Suction connection pipe size [in]
7/8 in
Suction connection size [in]
7/8 in
Swept volume [cm3]
57.8 cm=C2=B3
Technology
Scroll
Torque earth [Nm]
2 N-m
Torque power [Nm]
3 N-m
Total height [mm]
455 mm
Type
HLH061
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
68 cP
Width [mm]
239 mm
8168030
Connector, Rotolock service valve
8168031
Connector, Rotolock service valve
120Z0127
Connector, Solder sleeve adapter set
8153007
Connector, Solder sleeve
8156009
Connector, Gasket
8156130
Connector, Gasket
8156131
Connector, Gasket
118U0057
Electrical component, IP Upgrade kit
