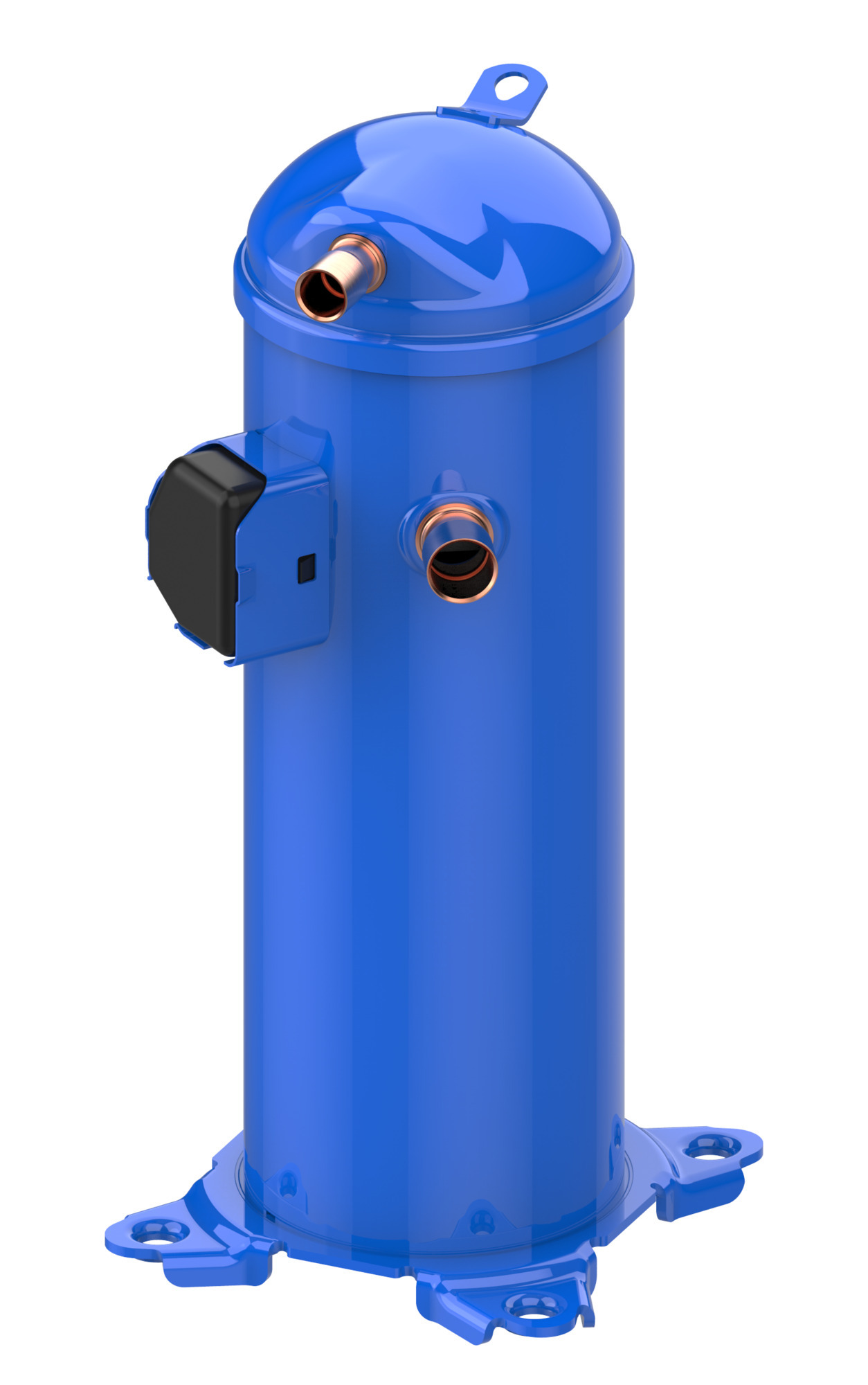

121L5007
Part Number: 121L5007
Product Information
Extended Description
121L5007 Danfoss: Refrigerants: R410A, Segment usage: Air conditioning, Compressor power supply [V]: 380/3/60, Packing format: Single pack
Gross weight
51.17 Kilogram
Net weight
44 Kilogram
Volume
0.1 Cubic meter
EAN
5702424541408
Approval
CE,UKCA,UL
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
380/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
DCJ091T9
Diameter [mm]
184 mm
Discharge connection height [mm]
508 mm
Discharge connection pipe size [in]
7/8 in
Discharge connection size [in]
7/8 in
Drawing number
0SR4109C
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Family
DCJ
Fitting standard
ODF
Frequency [Hz]
60
Gauge port HP
None
Gauge port LP
None
Gaz equalization
None
Glass mounting
None
High Side TS Max
140 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
0.5 L
High value of nominal voltage at 60Hz [V]
380 V
High value of voltage range at 60Hz [V]
418 V
IP protection class
IP22
Length [mm]
239 mm
Low Side TS Max
55 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
5.8 L
Low value of nominal voltage at 60Hz [V]
380 V
Low value of voltage range at 60Hz [V]
342 V
LRA
155 A
Max pressure (PS) - high side
46.1 bar
Max pressure (PS) - low side
31.1 bar
MCC
27.6 A
Model number
DCJ091T9LC6
Motor protection
Internal overload protector
Network power supply [V/Ph/Hz]
380-400/3/60
Oil charge [L]
2.46 L
Oil drain
None
Oil equalization
None
Oil reference
320HV
Oil type
PVE
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Screw connectors 10-32 UNF x 9.5
Product group
Hermetic compressors
Product Name Description
Scroll compressor DCJ
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
7.26 kg
Refrigerants
R410A
RLA
17.7 A
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
2dca5616-c3b6-43c5-bd20-147b5acc48be
SCIP dossier product name
DCJ
Segment usage
Air conditioning
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil
Initial oil charge
Suction connection height [mm]
375 mm
Suction connection material
-
Suction connection pipe size [in]
1 1/8 in
Suction connection size [in]
1 1/8 in
Swept volume [cm3]
86.9 cm=C2=B3
Technology
Scroll
Torque earth [Nm]
2 N-m
Torque power [Nm]
3 N-m
Total height [mm]
536 mm
Type
DCJ091
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
68 cP
Width [mm]
239 mm
Winding resistance 1-2 [Ohm]
0.7
Winding resistance 1-3 [Ohm]
0.7
Winding resistance 2-3 [Ohm]
0.7
