121L8101
Part Number: 121L8101
Product Information
Extended Description

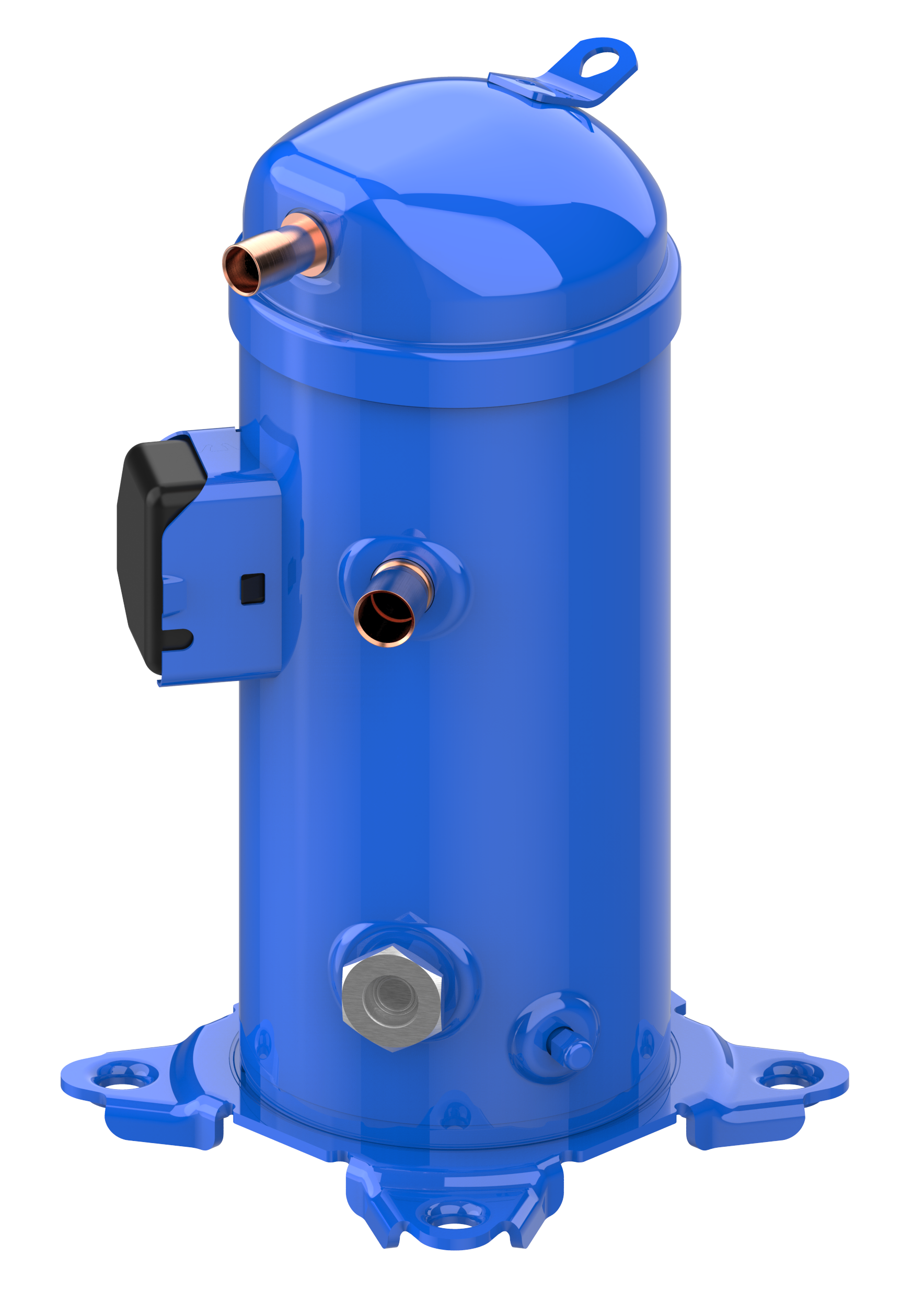

121L8101 Danfoss: Refrigerants: R22, Segment usage: Refrigeration HT; Refrigeration MT, Compressor power supply [V]: 220-240/1/50, Packing format: Industrial pack
Gross weight
43.32 Kilogram
Net weight
37.2 Kilogram
Volume
0.06 Cubic meter
EAN
5702424541057
Approval
CCC,CE,UKCA
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
220-240/1/50
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
MLM030T5
Diameter [mm]
184 mm
Discharge connection height [mm]
422 mm
Discharge connection pipe size [in]
1/2 in
Discharge connection size [in]
1/2 in
Drawing number
0XR6025B-2
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Family
MLM
Fitting standard
ODF
Frequency [Hz]
50
Gauge port HP
None
Gauge port LP
None
Glass mounting
Threaded
Glass torque [Nm]
53 N-m
High value of nominal voltage at 50Hz [V]
230 V
High value of voltage range at 50Hz [V]
253 V
IP protection class
IP22
Low value of nominal voltage at 50Hz [V]
230 V
Low value of voltage range at 50Hz [V]
207 V
Max pressure (PS) - high side
31.1 bar
Max pressure (PS) - low side
26.2 bar
MCC
32 A
Model number
MLM030T5LC9
Motor protection
Internal overload protector
Network power supply [V/Ph/Hz]
220-240/1/50
Oil charge [L]
1.57 L
Oil drain
1/4'' flare
Oil equalization
None
Oil reference
160ABM
Oil type
Alkylbenzene
Packing format
Industrial pack
Packing quantity
12
Phase
1
Power connections
Screw connectors 10-32 UNF x 9.5
Product group
Hermetic compressors
Product Name Description
Scroll compressor MLM
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R22
Rotational speed at 50Hz [rpm]
2900 rpm
SCIP dossier no.
9f3eb380-2376-4d7e-8e20-14d0789b1562
Segment usage
Refrigeration MT,Refrigeration HT
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets and sleeves
Shipped oil
Initial oil charge
Suction connection height [mm]
280 mm
Suction connection material
-
Suction connection pipe size [in]
7/8 in
Suction connection size [in]
7/8 in
Technology
Scroll
Torque earth [Nm]
2 N-m
Torque power [Nm]
3 N-m
Total height [mm]
455 mm
Type
MLM030
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
Viscosity [cP]
32 cP
8168030
Connector, Rotolock service valve
8168031
Connector, Rotolock service valve
120Z5013
Crankcase heater, Belt heater
120Z0059
Crankcase heater, Belt heater
120Z0892
Crankcase heater, Belt heater
8153007
Connector, Solder sleeve
8156009
Connector, Gasket
8156130
Connector, Gasket
8156131
Connector, Gasket
120Z0127
Connector, Solder sleeve adapter set
118U0057
Electrical component, IP Upgrade kit
Spare parts and accessories Danfoss Commercial Compressors for hermetic reciprocating and scroll compressors (AC/HP & REF)
Instructions MLM/MLZ compressors
Instructions MLM/MLZ compressors
Danfoss EU-UK 8555017 AD
Scroll Compressors
Danfoss MD 8555014 AD
Danfoss MD 8555016 AD
Danfoss MD 8555030 AE
Danfoss MD 8555038 AA
UL SA11565
single MLZ030 MLZ038 MLZ045 MLM030 MLM038 MLM045 C9-0XR6025B
