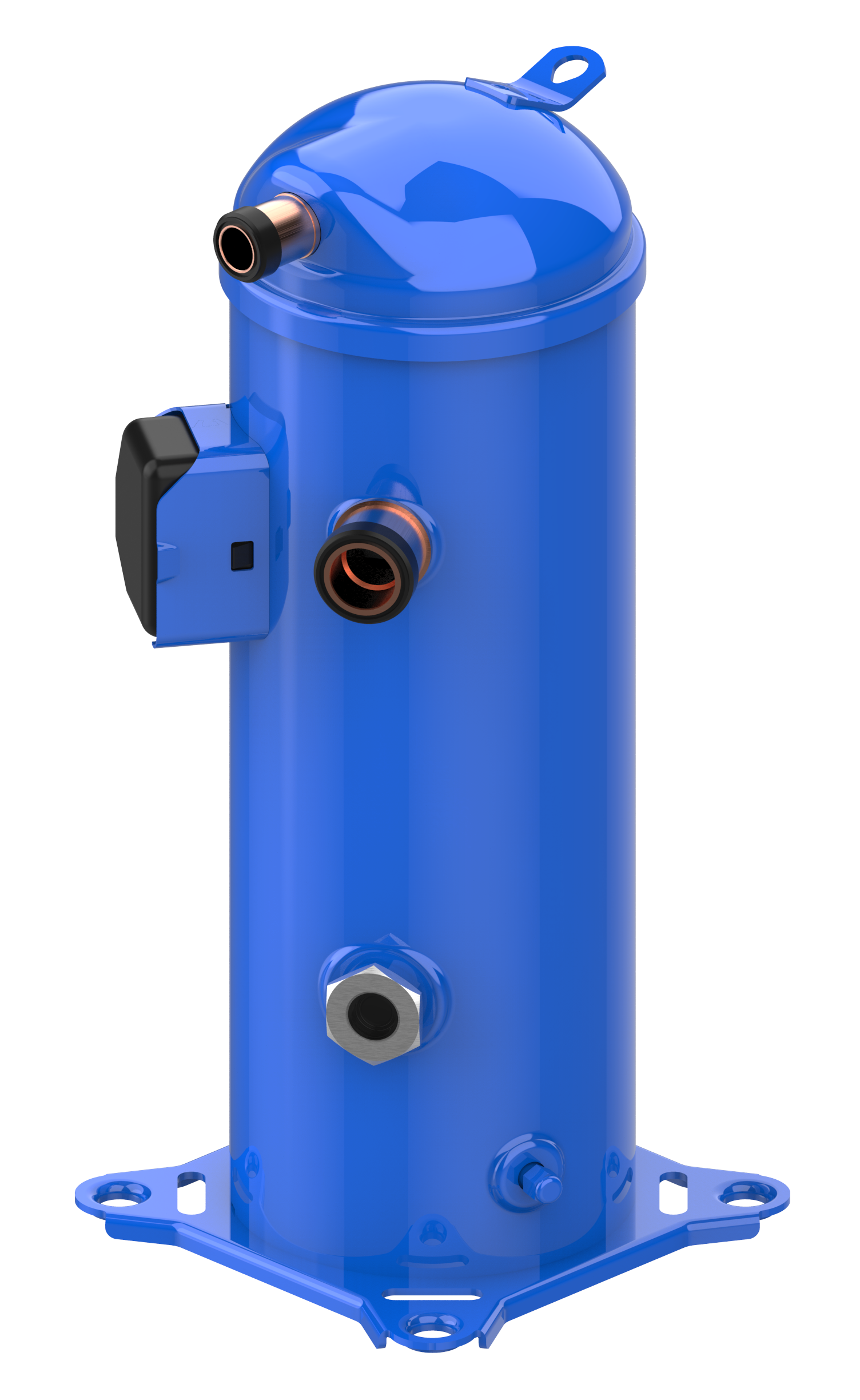

121L8819

Part Number: 121L8819
121L8819
Manufacturer
Danfoss
Part number
121L8819
Category

Product Information

Extended Description

121L8819 Danfoss: Refrigerants: R404A; R407C; R507A; R452A; R134a; R513A; R22; R448A; R449A, Segment usage: Refrigeration HT; Refrigeration MT, Compressor power supply [V]: 380-415/3/50 460/3/60, Packing format: Single pack
Gross weight
49.06 Kilogram
Net weight
44 Kilogram
Volume
0.1 Cubic meter
EAN
5702424059378
Approval
CE,UKCA,UL
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
380-415/3/50 460/3/60
Configuration code
Single
Connection type
Rotolock
Contain batteries
No
Description
MLZ058T4A
Diameter [mm]
184 mm
Discharge connection height [mm]
509 mm
Discharge connection pipe size [in]
7/8 in
Discharge connection size [in]
1 1/4 in
Drawing number
0SR6307B-2
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Family
MLZ
Fitting standard
Rotolock
Frequency [Hz]
50/60
Gauge port HP
None
Gauge port LP
None
Glass mounting
Threaded
Glass torque [Nm]
53 N-m
High value of nominal voltage at 50Hz [V]
415 V
High value of nominal voltage at 60Hz [V]
460 V
High value of voltage range at 50Hz [V]
457 V
High value of voltage range at 60Hz [V]
506 V
IP protection class
IP22
Liquid injection
No
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
460 V
Low value of voltage range at 50Hz [V]
342 V
Low value of voltage range at 60Hz [V]
414 V
LRA
95 A
Max pressure (PS) - high side
31.1 bar
Max pressure (PS) - low side
26.2 bar
MCC
20 A
Model number
MLZ058T4LQ9A
Motor protection
Internal overload protector
Network power supply [V/Ph/Hz]
380-415/3/50 460/3/60
Number of starts per hour [Max]
12
Oil charge [L]
2.66 L
Oil drain
1/4'' flare
Oil equalization
None
Oil reference
215PZ
Oil type
POE
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Screw connectors 10-32 UNF x 9.5
Product group
Hermetic compressors
Product Name Description
Scroll compressor MLZ
Refrigerant charge [kg] [Max]
7.26 kg
Refrigerants
R134a,R22,R404A,R407C,R448A,R449A,R452A,R507A,R513A
RLA
12.8 A
Rotational speed at 50Hz [rpm]
2900 rpm
Rotational speed at 60Hz [rpm]
3500 rpm
Segment usage
Refrigeration MT,Refrigeration HT
Suction connection height [mm]
369 mm
Suction connection material
-
Suction connection pipe size [in]
1 1/8 in
Suction connection size [in]
1 3/4 in
Swept volume [cm3]
125.95 cm=C2=B3
Technology
Scroll
Torque earth [Nm]
2 N-m
Torque power [Nm]
3 N-m
Total height [mm]
536 mm
Type
MLZ058A
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
46 cP
Voltage of capacitor A [V]
370 V
Winding resistance 1-2 [Ohm]
1.39
Winding resistance 1-3 [Ohm]
1.39
Winding resistance 2-3 [Ohm]
1.39
120Z0059
Crankcase heater, Belt heater
120Z0648
Lubricant, 215PZ
120Z0060
Crankcase heater, Belt heater
120Z5012
Crankcase heater, Belt heater
8168028
Connector, Rotolock service valve
120Z0892
Crankcase heater, Belt heater
8168030
Connector, Rotolock service valve
120Z0894
Crankcase heater, Belt heater
118U0057
Electrical component, IP Upgrade kit
7750009
Electrical component, Discharge thermostat kit
8168030
Connector, Rotolock service valve
8156009
Connector, Gasket
120Z5064
Mounting, Compressor kit
8156132
Connector, Gasket
8168028
Connector, Rotolock service valve
8156131
Connector, Gasket
8153004
Connector, Solder sleeve
120Z5085
Acoustic hood, Scroll
