121U9012
Part Number: 121U9012
Product Information
Extended Description
121U9012 Danfoss: Refrigerants: R407C, Segment usage: Heating, Compressor power supply [V]: 220-240/1/50, Packing format: Single pack/pallet
Gross weight
35.75 Kilogram
Net weight
31.75 Kilogram
Volume
44.888 Liter
EAN
5702428378710
Approval
CE,UL,UKCA
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]
1.27
Brand technique
Scroll compressor
Capacity control
Fixed speed
Capacity of capacitor A
60 =C2=B5F
Capacity of capacitor B
145-175 =C2=B5F
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Black
Compressor power supply [V]
220-240/1/50
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
HHP021T5
Diameter [mm]
165 mm
Discharge connection height [mm]
379 mm
Discharge connection pipe size [in]
1/2 in
Discharge connection size [in]
1/2 in
Drawing number
0XC6301B-2
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Family
HHP
Fitting standard
ODF
Frequency [Hz]
50
Gauge port HP
None
Gauge port LP
None
Gaz equalization
None
Glass mounting
None
High value of nominal voltage at 50Hz [V]
240 V
High value of voltage range at 50Hz [V]
264 V
IP protection class
IP22
Length [mm]
239 mm
Low value of nominal voltage at 50Hz [V]
220 V
Low value of voltage range at 50Hz [V]
198 V
LRA
69 A
Main winding resistance for single-phase compressors [Ohm]
0.73
MCC
24 A
Model number
HHP021T5LP6
Motor protection
Internal overload protector
Network power supply [V/Ph/Hz]
220-240/1/50
Number of starts per hour [Max]
12
Oil charge [L]
1.06 L
Oil equalization
None
Oil reference
160HV
Oil type
PVE
Packing format
Single pack/pallet
Packing quantity
6
Phase
1
Power connections
Spade
Product group
Hermetic compressors
Product Name Description
Scroll compressor HHP
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
3.63 kg
Refrigerants
R407C
RLA
17.1 A
Rotational speed at 50Hz [rpm]
2900 rpm
Segment usage
Heating
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets and sleeves
Shipped oil
Initial oil charge
Suction connection height [mm]
250 mm
Suction connection material
-
Suction connection pipe size [in]
3/4 in
Suction connection size [in]
3/4 in
Swept volume [cm3]
46 cm=C2=B3
Technology
Scroll
Total height [mm]
413 mm
Type
HHP021
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
32 cP
Voltage of capacitor A [V]
370 V
Width [mm]
239 mm
120Z0055
Crankcase heater, Belt heater
8168029
Connector, Rotolock service valve
120Z5034
Lubricant, 320HV
8168031
Connector, Rotolock service valve
120Z5064
Mounting, Compressor kit
120Z0126
Connector, Solder sleeve adapter set
120Z5015
Electrical component, Terminal box
8153007
Connector, Solder sleeve
8156131
Connector, Gasket
8156130
Connector, Gasket
120Z5083
Acoustic hood, Scroll
8156009
Connector, Gasket
8168031
Connector, Rotolock service valve
7750009
Electrical component, Discharge thermostat kit
Danfoss Heat Pump scroll compressors, HHP-Series
Brochure Danfoss scroll HHP serie - GB
Danfoss scroll compressors DCJ / H series
Safety data sheet, Polyvinyl ether oil 320HV English September 2024
Scroll Compressors
Danfoss MD 8555014 AD
Danfoss MD 8555016 AD
Danfoss MD 8555030 AE
Danfoss MD 8555038 AA
UL SA11565

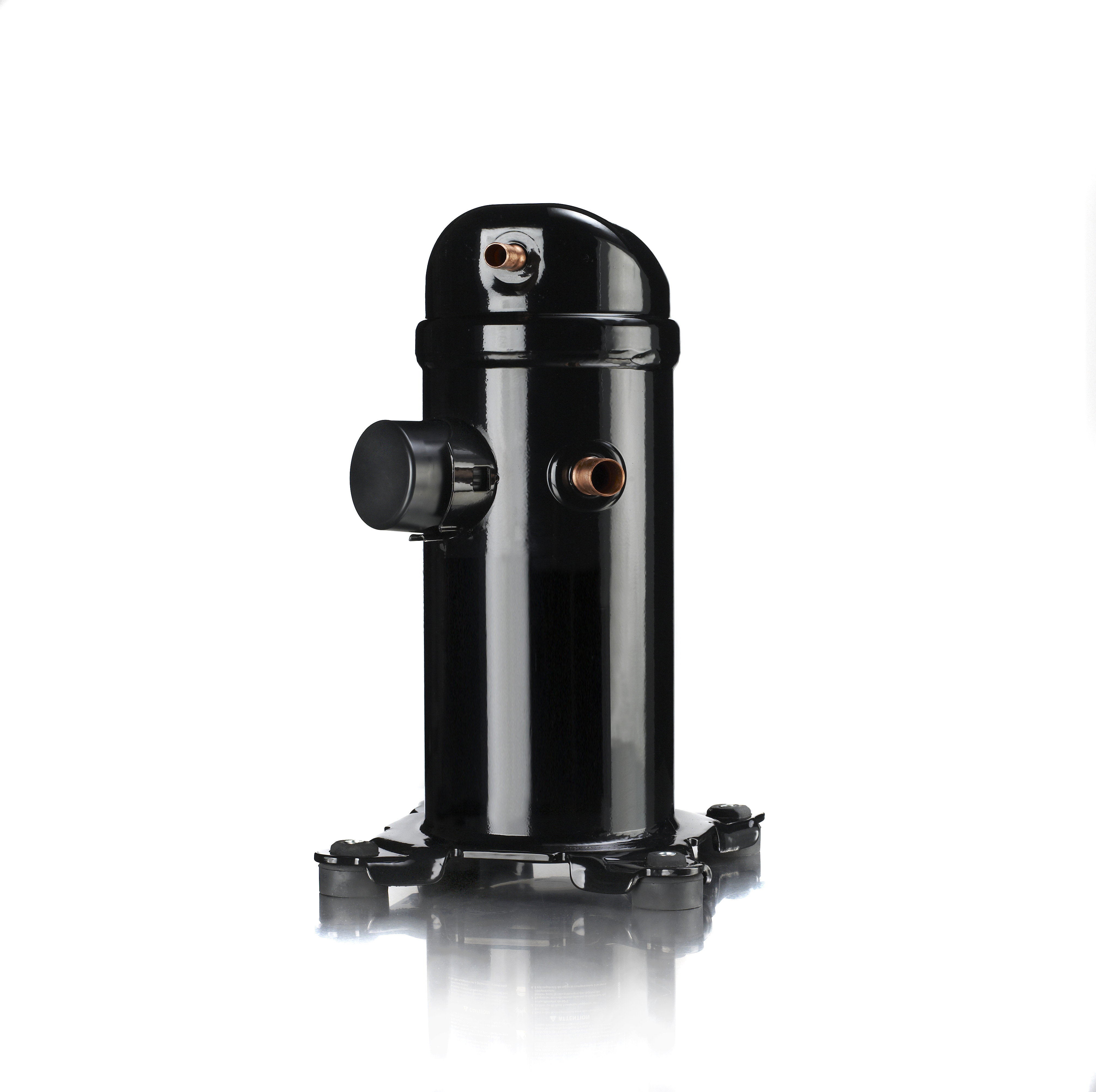

PSH015 single compressor

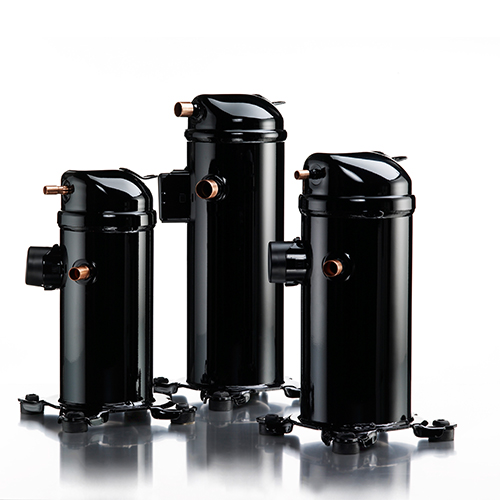

HHP Compressors, no background
