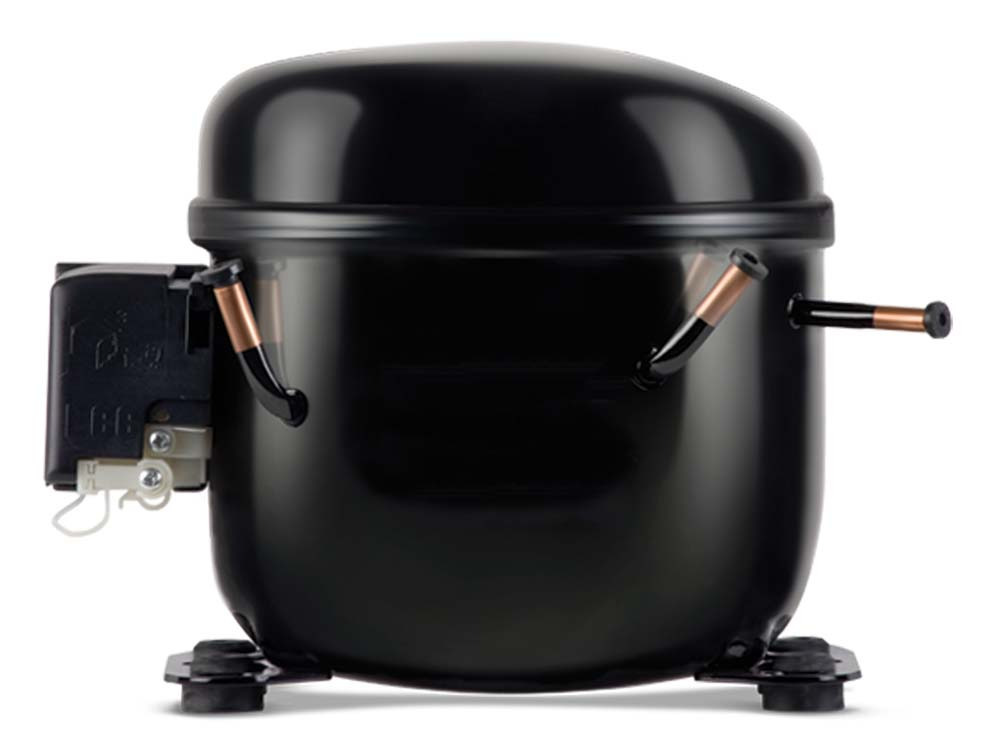

123B1109
Part Number: 123B1109
Product Information
Extended Description
123B1109 Danfoss: Refrigerants: R134a, Segment usage: Refrigeration LT, Compressor power supply [V]: 220/1/50
Gross weight
8.9 Kilogram
Net weight
8.7 Kilogram
Volume
10.4 Liter
EAN
5702424676100
Applications
LBP
Approval
VDE
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]
22.53
Brand technique
Reciprocating compressor
Capacity control
Fixed speed
Colour
Black
Compressor power supply [V]
220/1/50
Configuration code
Single
Contain batteries
No
Cut in current LST 50Hz [A]
8.6 A
Cut in current LST [A]
8.6 A
Description
GLY45AAa
Discharge connection angle [=C2=B0]
0 =C2=B0
Discharge connection comments
Rubber plug
Discharge connection diameter [mm]
4.9 mm
Discharge connection height [mm]
98 mm
Discharge connection material
Copper
Economizer
No
Family
L
Frequency [Hz]
50
Height from baseplate [mm]
175 mm
High value of nominal voltage at 50Hz [V]
240 V
High value of voltage range at 50Hz [V]
264 V
Low value of nominal voltage at 50Hz [V]
220 V
Low value of voltage range at 50Hz [V]
187 V
LRA LST 50Hz [A]
8.6 A
LRA LST [A]
8.6 A
Main winding resistance for single-phase compressors [Ohm]
22.02
MCC
1.00 A
Model number
GLY45AAa
Motor type
RSIR
No. of phases (compressor)
1
Oil quantity [cm3]
210 cm=C2=B3
Oil type
POE
Packing format
Single pack
Packing quantity
1
Process connection angle [=C2=B0]
50 =C2=B0
Process connection comments
Rubber plug
Process connection diameter [mm]
6.5 mm
Process connection material
Copper
Product group
Hermetic compressors
Product Name Description
Reciprocating compressor L
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
1.15 kg
Refrigerants
R134a
Rotational speed at 50Hz [rpm]
3000 rpm
SCIP dossier no.
cd1d92df-acc4-43d9-8eb6-bb380e61d93f
SCIP dossier product name
GL
Segment usage
Refrigeration LT
Suction connection angle [=C2=B0]
20 =C2=B0
Suction connection diameter [mm]
6.5 mm
Suction connection height [mm]
103 mm
Suction connection material
Copper
Swept volume [cm3]
4.56 cm=C2=B3
Technology
Reciprocating
Total height [mm]
182 mm
Type
GLY45
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
Voltage 50Hz [V]
220 V
Voltage 50Hz [V] [Max]
240 V
Winding temperature short term [=C2=B0C] [Max]
135 =C2=B0C
Winding temperature stat [=C2=B0C] [Max]
115 =C2=B0C
