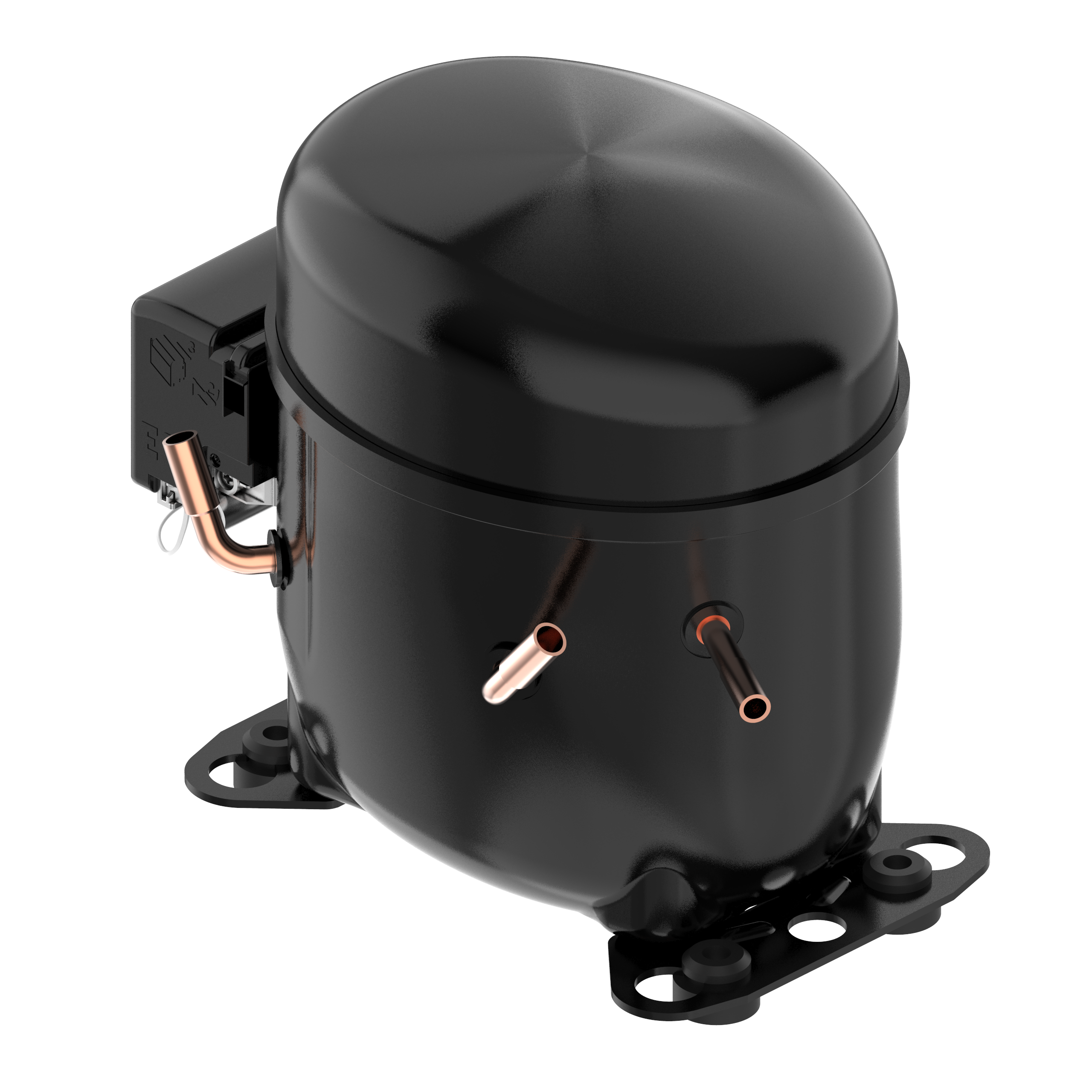

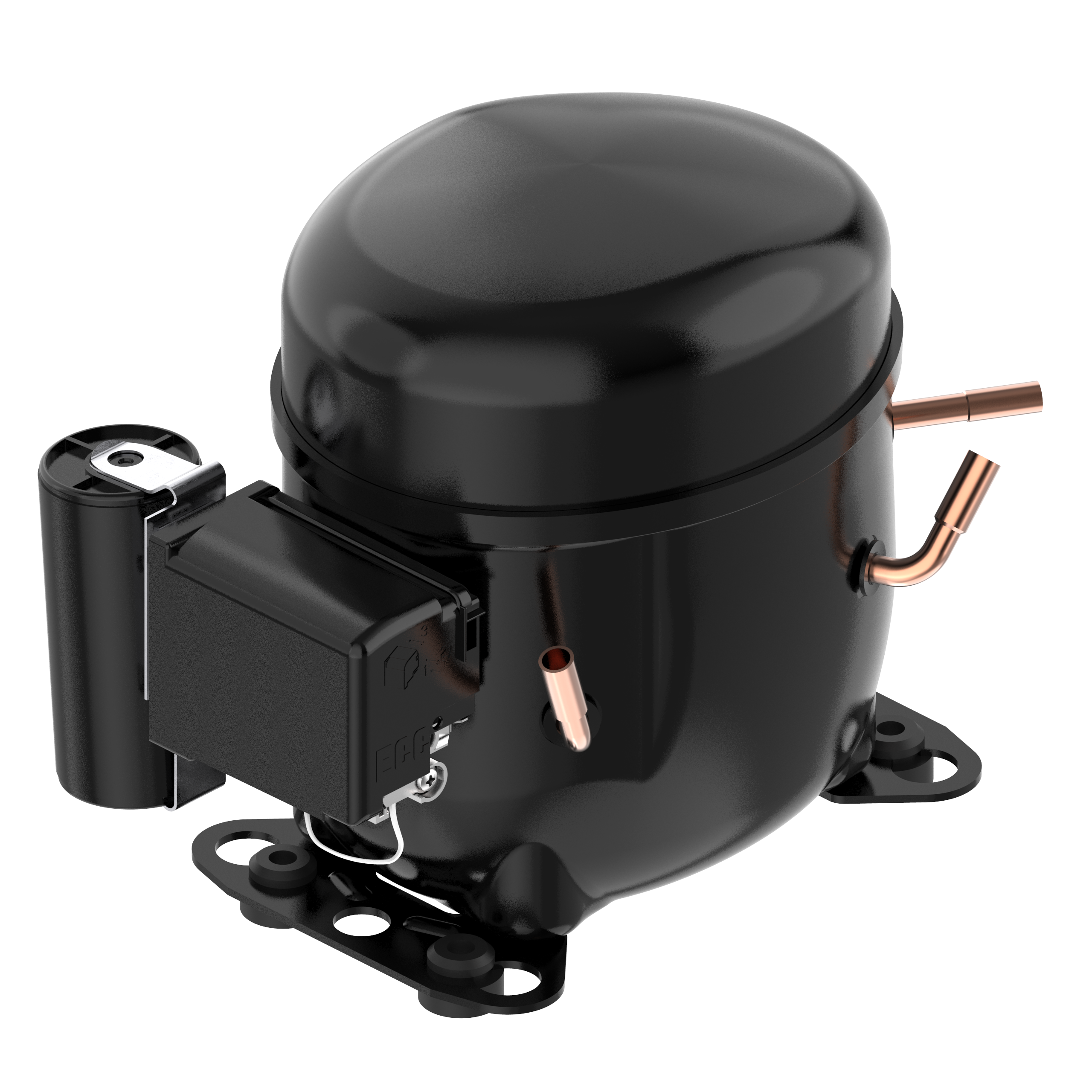

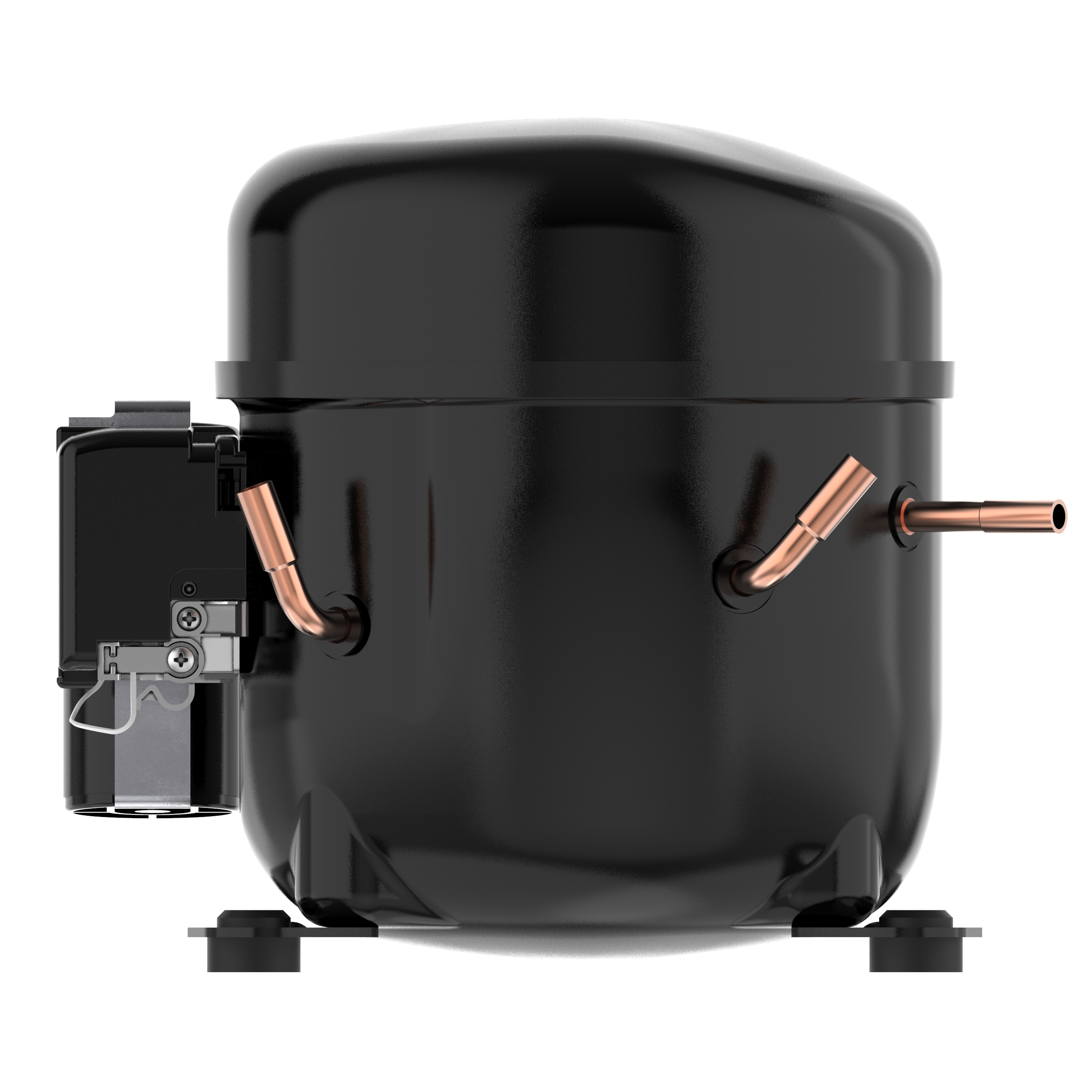

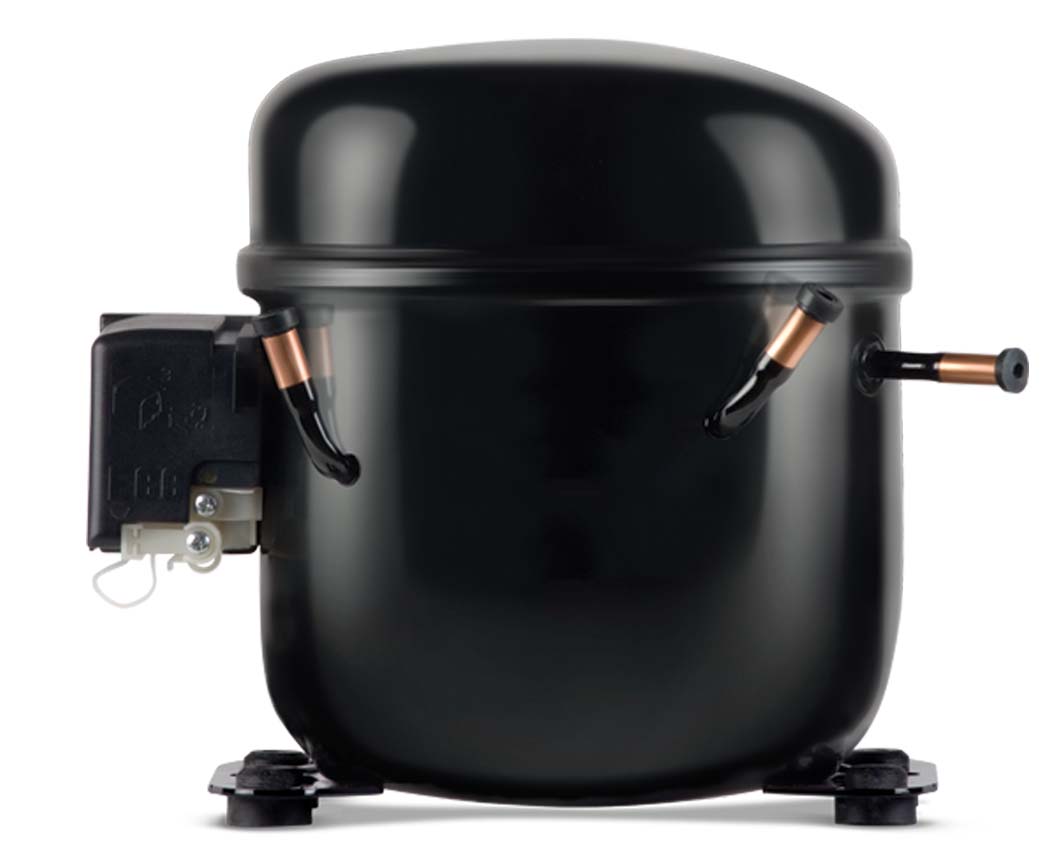

123B1584

Part Number: 123B1584
123B1584
Manufacturer
Danfoss
Part number
123B1584
Category

Product Information

Extended Description

123B1584 Danfoss: Refrigerants: R134a, Segment usage: Refrigeration MT, Compressor power supply [V]: 115/1/60
Gross weight
13.1 Kilogram
Net weight
12.8 Kilogram
Volume
13.1 Liter
EAN
5702428584487
Applications
HBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]
4.6
Brand technique
Reciprocating compressor
Capacity control
Fixed speed
Colour
Black
Compressor power supply [V]
115/1/60
Configuration code
Single
Contain batteries
No
Cut in current HST 60Hz [A]
44.5 A
Description
GPY14RDa
Discharge connection angle [=C2=B0]
0 =C2=B0
Discharge connection comments
Rubber plug
Discharge connection diameter [mm]
6.5 mm
Discharge connection height [mm]
121 mm
Discharge connection material
Copper
Economizer
No
Family
P
Frequency [Hz]
60
Height from baseplate [mm]
211 mm
High value of nominal voltage at 60Hz [V]
115 V
High value of voltage range at 60Hz [V]
127 V
Low value of nominal voltage at 60Hz [V]
115 V
Low value of voltage range at 60Hz [V]
98 V
LRA HST 60Hz [A]
44.5 A
Main winding resistance for single-phase compressors [Ohm]
1
MCC
10.90 A
Model number
GPY14RDa
Motor type
CSIR
No. of phases (compressor)
1
Oil quantity [cm3]
400 cm=C2=B3
Oil type
POE
Packing format
Single pack,Single pack,Single pack,Single pack
Packing quantity
1,1,1,1
Process connection angle [=C2=B0]
50 =C2=B0
Process connection comments
Rubber plug
Process connection diameter [mm]
8.1 mm
Process connection material
Copper
Product group
Hermetic compressors
Product Name Description
Reciprocating compressor P
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
1.15 kg
Refrigerants
R134a
Rotational speed at 60Hz [rpm]
3600 rpm
SCIP dossier no.
cd1d92df-acc4-43d9-8eb6-bb380e61d93f
SCIP dossier product name
GL
Segment usage
Refrigeration MT,Refrigeration MT,Refrigeration MT,Refrigeration MT
Speed Platform
Fixed-speed
Start capacitor capacitance
250 =C2=B5F
Suction connection angle [=C2=B0]
20 =C2=B0
Suction connection diameter [mm]
8.1 mm
Suction connection height [mm]
125 mm
Suction connection material
Copper
Swept volume [cm3]
14.32 cm=C2=B3
Technology
Reciprocating
Total height [mm]
217 mm
Type
GPY14
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
Voltage 60Hz [V]
115 V
Voltage 60Hz [V] [Max]
115 V
Winding temperature short term [=C2=B0C] [Max]
135 =C2=B0C
Winding temperature stat [=C2=B0C] [Max]
115 =C2=B0C
