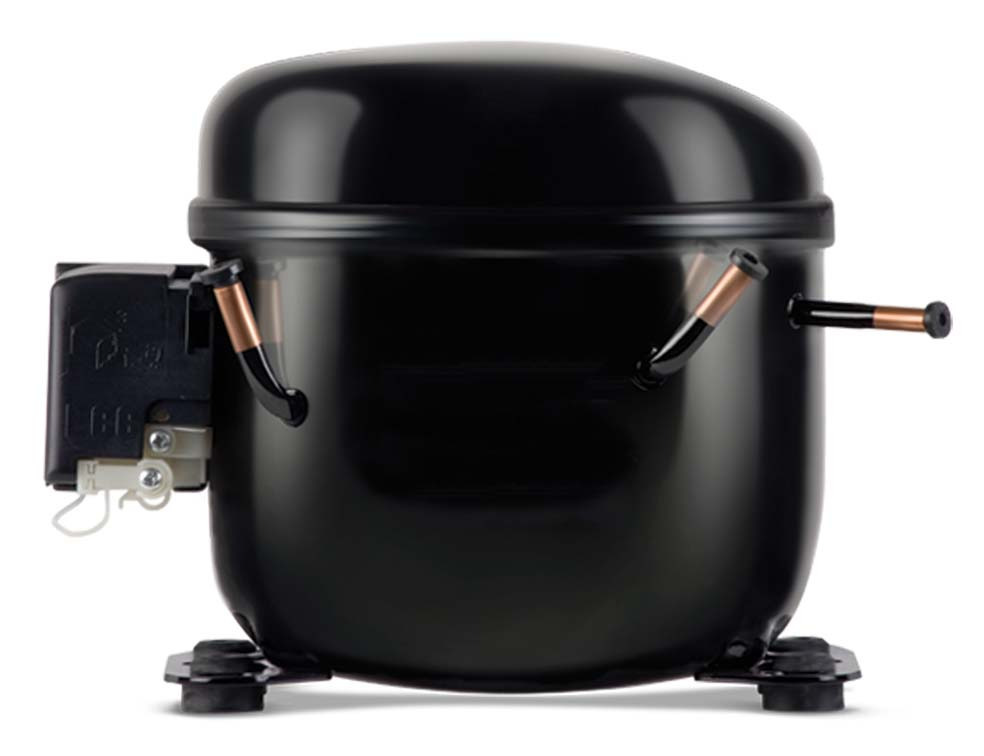

123B2529
Part Number: 123B2529
Product Information
Extended Description
123B2529 Danfoss: Refrigerants: R404A, Segment usage: Refrigeration MT, Compressor power supply [V]: 115/1/60
Gross weight
10.2 Kilogram
Net weight
10 Kilogram
Volume
11.4 Liter
EAN
5702424674014
Applications
HBP,MBP
Approval
UL
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]
7.36
Brand technique
Reciprocating compressor
Capacity control
Fixed speed
Colour
Black
Compressor power supply [V]
115/1/60
Configuration code
Single
Contain batteries
No
Cut in current HST 60Hz [A]
28 A
Description
ML60TR
Discharge connection angle [=C2=B0]
0 =C2=B0
Discharge connection comments
Rubber plug
Discharge connection diameter [mm]
4.9 mm
Discharge connection height [mm]
108 mm
Discharge connection material
Copper
Economizer
No
Family
L
Frequency [Hz]
60
Height from baseplate [mm]
186 mm
High value of nominal voltage at 60Hz [V]
127 V
High value of voltage range at 60Hz [V]
140 V
Low value of nominal voltage at 60Hz [V]
115 V
Low value of voltage range at 60Hz [V]
98 V
LRA HST 60Hz [A]
28 A
Main winding resistance for single-phase compressors [Ohm]
1.38
MCC
8.70 A
Model number
ML60TR
Motor type
CSIR
No. of phases (compressor)
1
Oil quantity [cm3]
300 cm=C2=B3
Oil type
POE
Packing format
Single pack
Packing quantity
1
Process connection angle [=C2=B0]
50 =C2=B0
Process connection comments
Rubber plug
Process connection diameter [mm]
6.5 mm
Process connection material
Copper
Product group
Hermetic compressors
Product Name Description
Reciprocating compressor L
Refrigerant charge [kg] [Max]
1.15 kg
Refrigerants
R404A
Rotational speed at 60Hz [rpm]
3600 rpm
Segment usage
Refrigeration MT
Speed Platform
Fixed-speed
Start capacitor capacitance
170 =C2=B5F
Suction connection angle [=C2=B0]
20 =C2=B0
Suction connection diameter [mm]
6.5 mm
Suction connection height [mm]
113 mm
Suction connection material
Copper
Swept volume [cm3]
5.68 cm=C2=B3
Technology
Reciprocating
Total height [mm]
192 mm
Type
ML60
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UL evaluated
Yes
Voltage 60Hz [V]
115 V
Voltage 60Hz [V] [Max]
127 V
Winding temperature short term [=C2=B0C] [Max]
135 =C2=B0C
Winding temperature stat [=C2=B0C] [Max]
115 =C2=B0C
