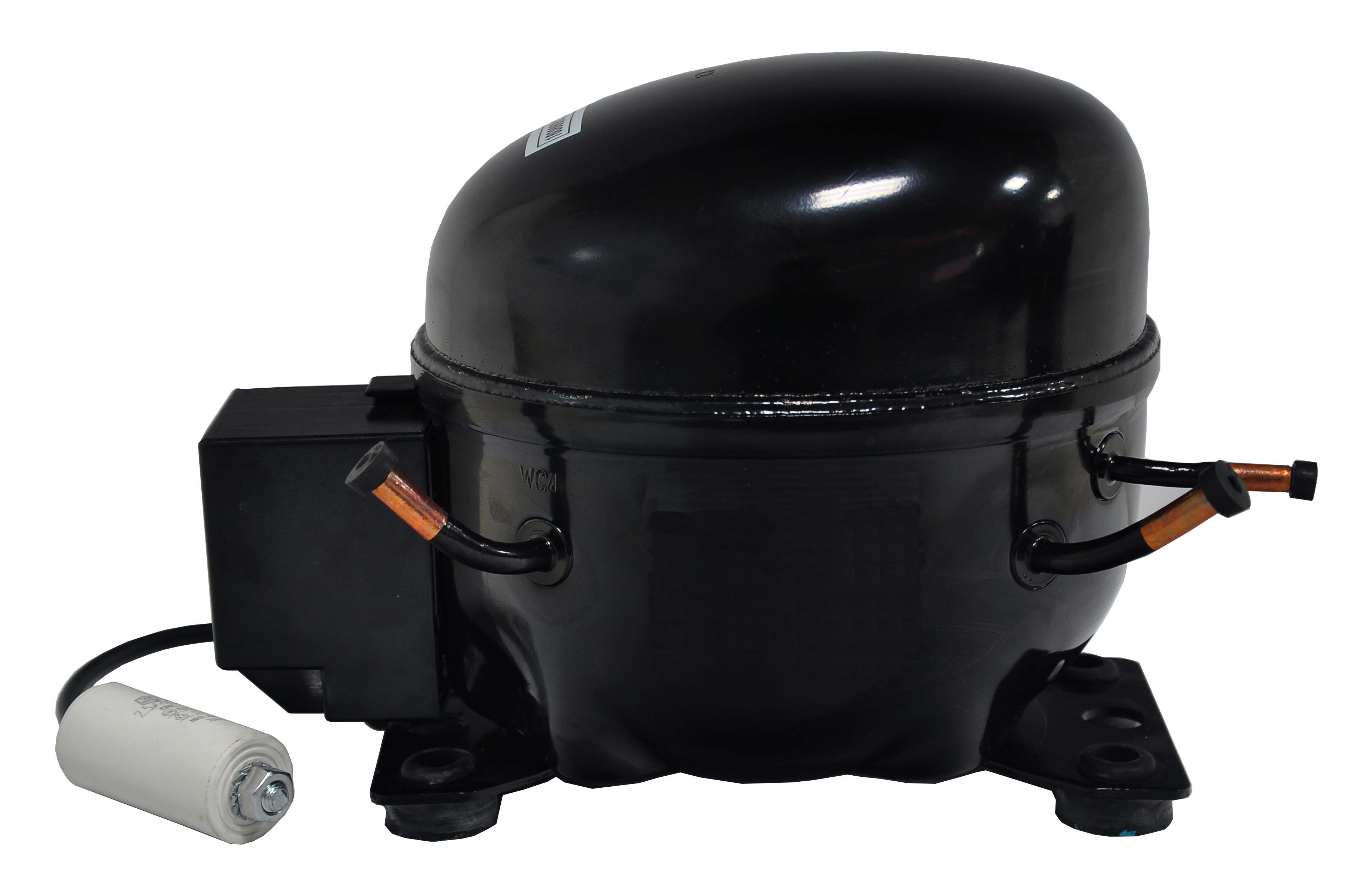

123B4511
Part Number: 123B4511
Product Information
Extended Description
123B4511 Danfoss: Refrigerants: R600a, Segment usage: Refrigeration MT, Compressor power supply [V]: 220/1/50
Gross weight
9.2 Kilogram
Net weight
9 Kilogram
Volume
10.4 Liter
EAN
5702424672607
Applications
HBP,MBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]
13.7
Brand technique
Reciprocating compressor
Capacity control
Fixed speed
Colour
Black
Compressor power supply [V]
220/1/50
Configuration code
Single
Contain batteries
No
Cut in current HST 50Hz [A]
5.4 A
Cut in current HST [A]
5.4 A
Description
HUY70MAa
Discharge connection angle [=C2=B0]
0 =C2=B0
Discharge connection comments
Rubber plug
Discharge connection diameter [mm]
4.9 mm
Discharge connection height [mm]
83 mm
Discharge connection material
Copper
Economizer
No
Family
U
Frequency [Hz]
50
Height from baseplate [mm]
174 mm
High value of nominal voltage at 50Hz [V]
240 V
High value of voltage range at 50Hz [V]
255 V
Low value of nominal voltage at 50Hz [V]
220 V
Low value of voltage range at 50Hz [V]
187 V
LRA HST 50Hz [A]
5.4 A
LRA HST [A]
5.4 A
Main winding resistance for single-phase compressors [Ohm]
19.6
MCC
1.10 A
Model number
HUY70MAa
Motor type
RSIR
No. of phases (compressor)
1
Oil quantity [cm3]
200 cm=C2=B3
Oil type
Mineral
Packing format
Single pack
Packing quantity
1
Process connection angle [=C2=B0]
70 =C2=B0
Process connection comments
Rubber plug
Process connection diameter [mm]
6.2 mm
Process connection material
Copper
Product group
Hermetic compressors
Product Name Description
Reciprocating compressor U
Refrigerant charge [kg] [Max]
0.15 kg
Refrigerants
R600a
Rotational speed at 50Hz [rpm]
3000 rpm
Segment usage
Refrigeration MT
Speed Platform
Fixed-speed
Suction connection angle [=C2=B0]
40 =C2=B0
Suction connection diameter [mm]
6.2 mm
Suction connection height [mm]
92 mm
Suction connection material
Copper
Swept volume [cm3]
6.7 cm=C2=B3
Technology
Reciprocating
Total height [mm]
180 mm
Type
NUY60
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
Voltage 50Hz [V]
220 V
Voltage 50Hz [V] [Max]
240 V
Winding temperature short term [=C2=B0C] [Max]
135 =C2=B0C
Winding temperature stat [=C2=B0C] [Max]
115 =C2=B0C
