126F2021

Part Number: 126F2021
126F2021
Manufacturer
Danfoss
Part number
126F2021
Category

Product Information

Extended Description

126F2021 Danfoss: Refrigerants: R290, Power supply of drive [V/ph/Hz]: 200-240V/1ph/50-60Hz
Gross weight
11.44 Kilogram
Net weight
10.4 Kilogram
Volume
816.48 Liter
Brand technique

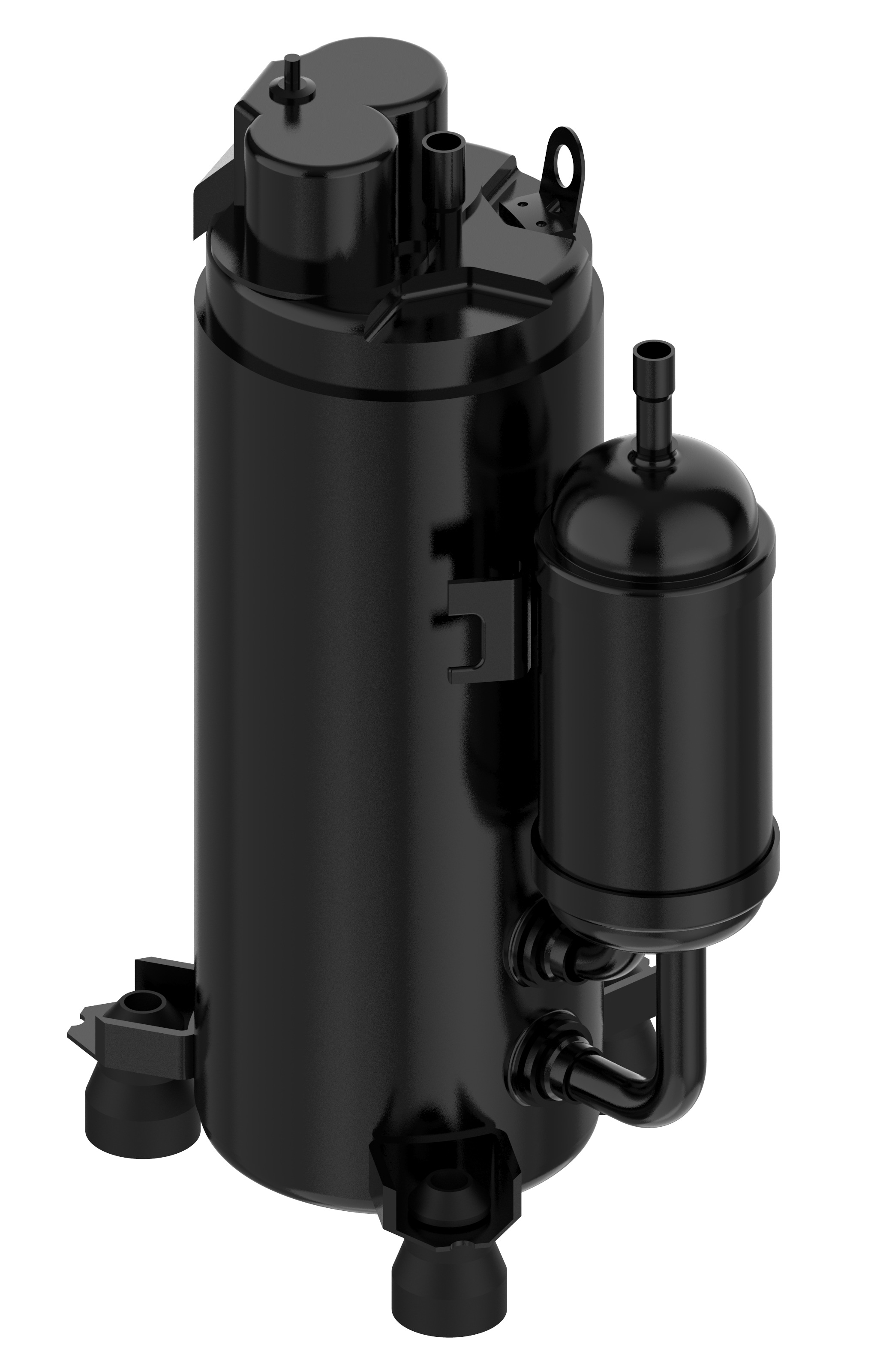

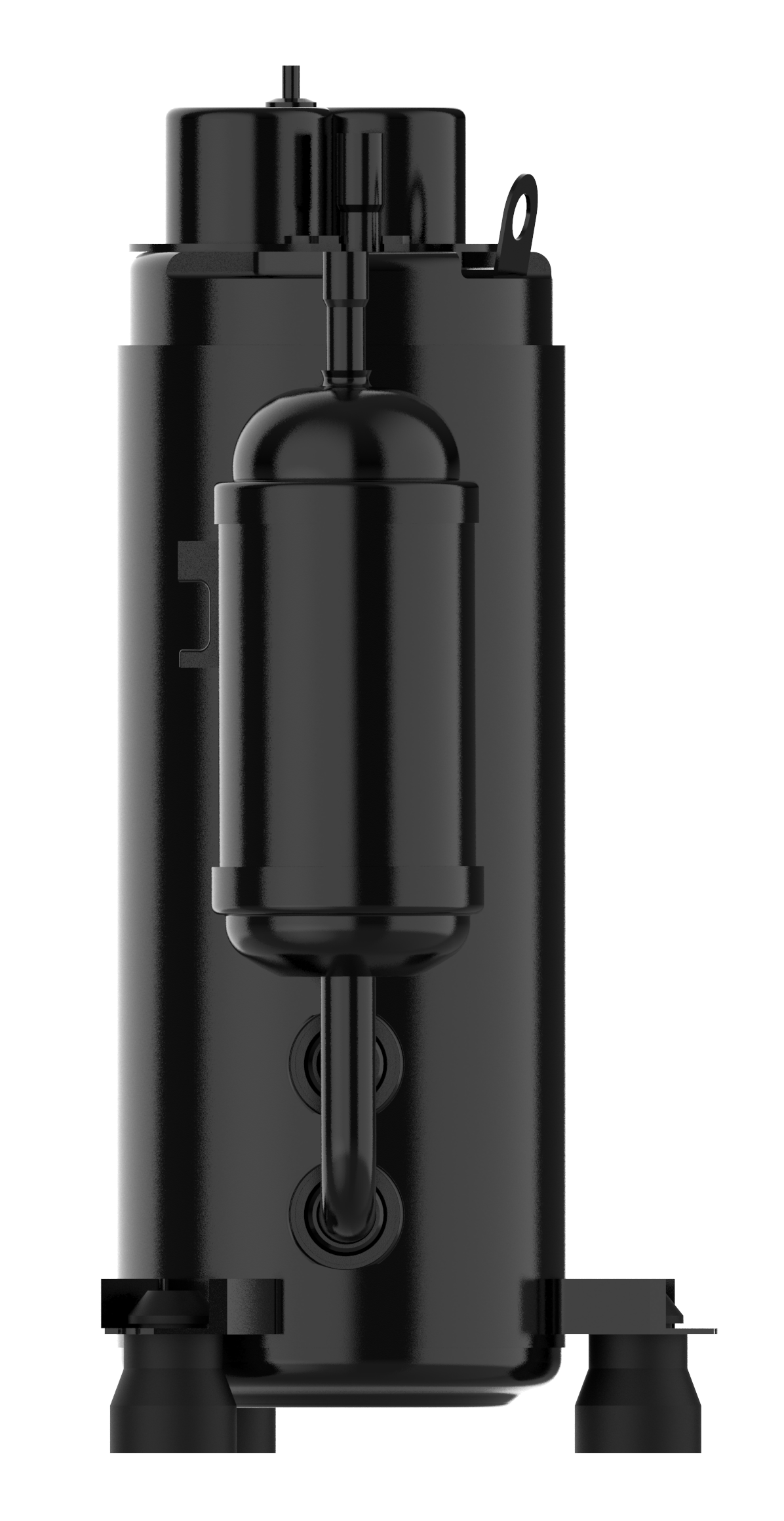

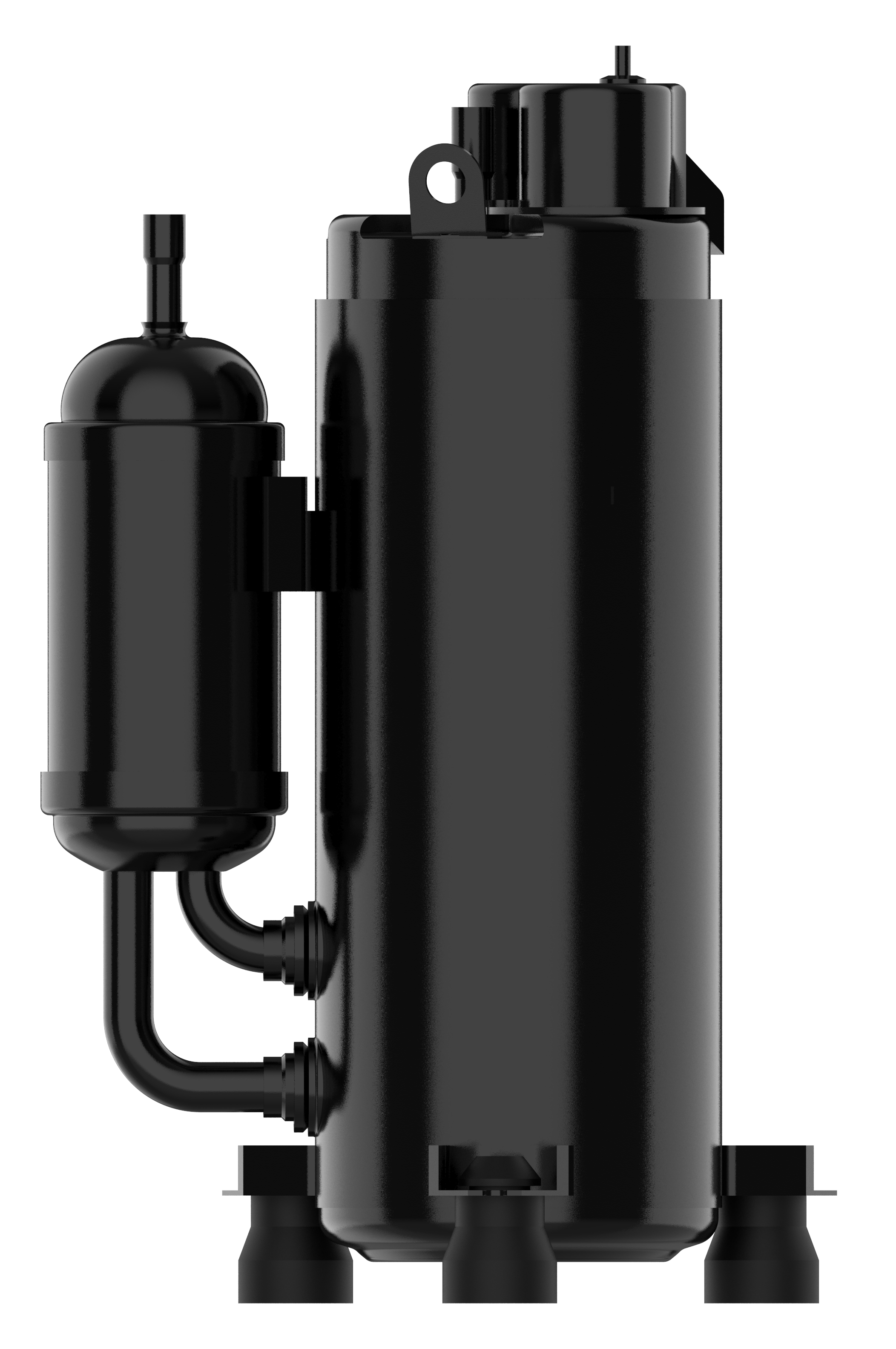

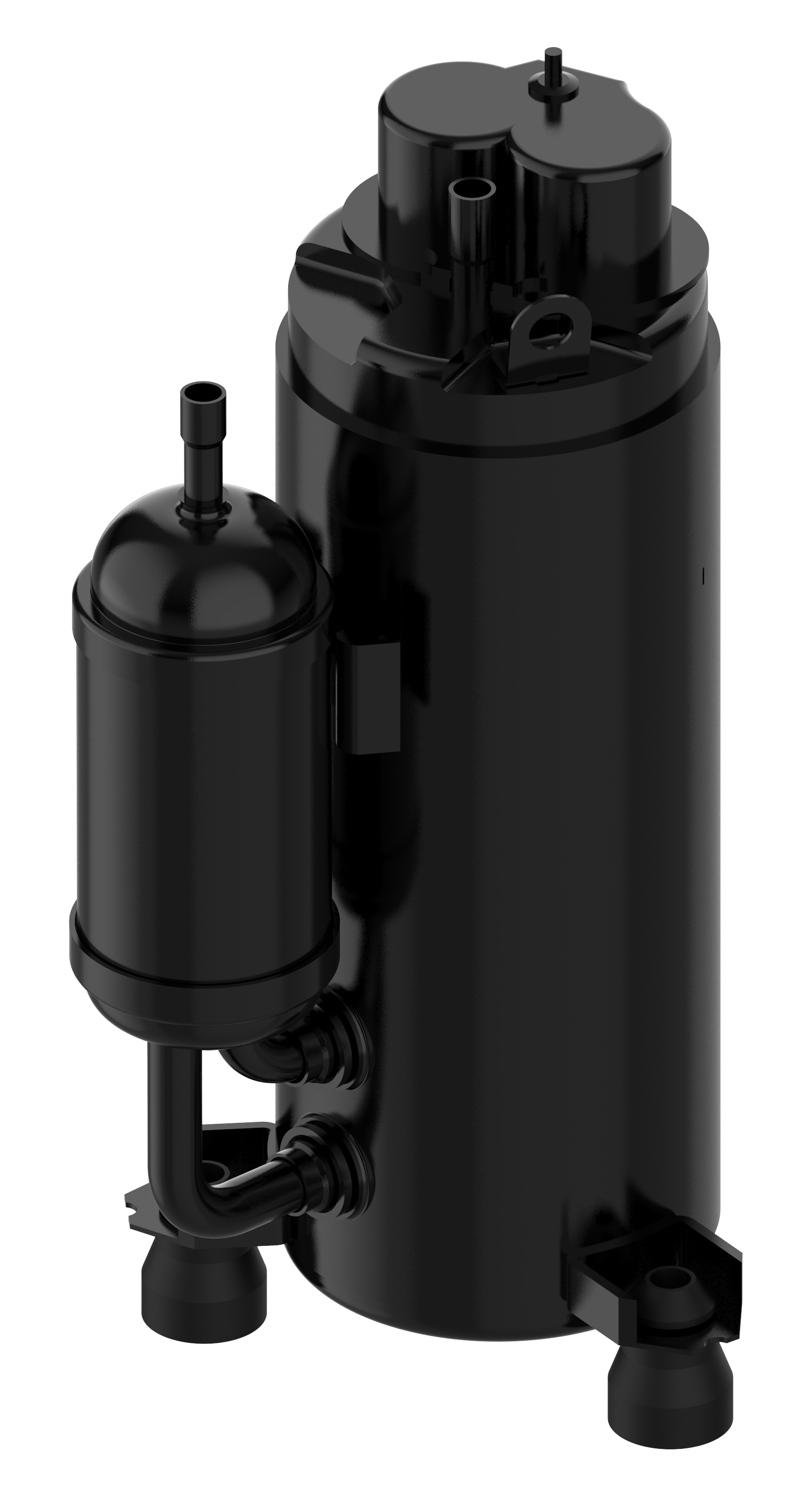

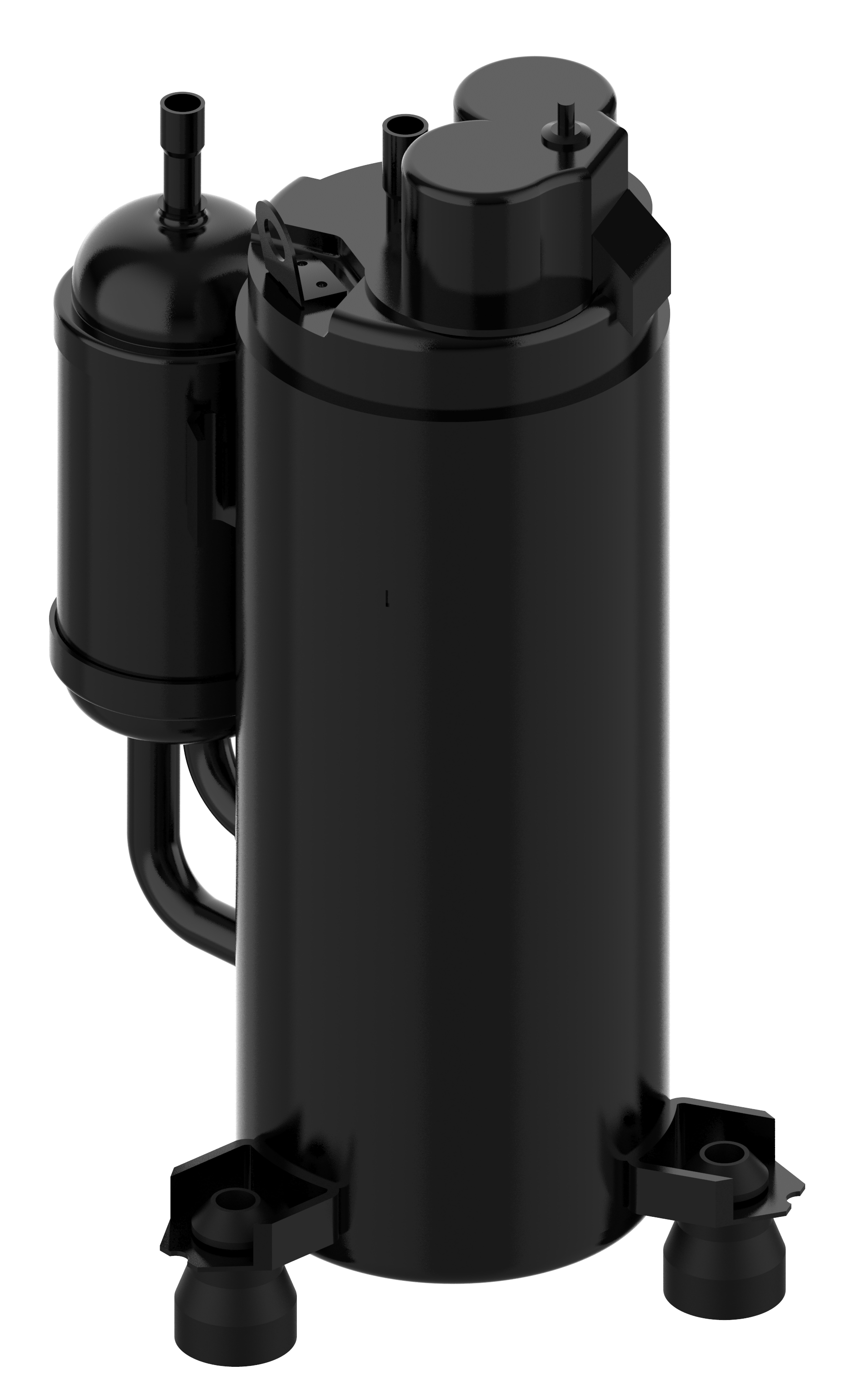

Rotary compressor
Capacity control
Inverter
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
VRN226WT
Diameter [mm]
113 mm
Discharge connection comments
Rubber plug
Discharge connection diameter [mm]
9.7 mm
Discharge connection height [mm]
322 mm
Discharge connection material
Copper
Drawing number
4CYCD0426
Economizer
No
Family
VRN
Fitting sleeve
ODF
Fitting standard
ODF
Frequency [Hz]
15 - 120
Gauge port HP
None
Gauge port LP
None
Glass mounting
None
High Side Volume
1.2 L
High value of nominal voltage at 50Hz [V]
240 V
High value of nominal voltage at 60Hz [V]
240 V
High value of voltage range at 50Hz [V]
264 V
High value of voltage range at 60Hz [V]
264 V
IP protection class
IPX0
Low Side Volume
0.3 L
Low value of nominal voltage at 50Hz [V]
200 V
Low value of nominal voltage at 60Hz [V]
200 V
Low value of voltage range at 50Hz [V]
180 V
Low value of voltage range at 60Hz [V]
200 V
Model number
VRN226WTPAGE
Motor protection
Motor protection by frequency converter
Network power supply [V/Ph/Hz]
220-240/1/50
Number of starts per hour [Max]
6
Oil charge [L]
0.63 L
Oil type
POE
Packing quantity
72
Phase
1
Power connections
Spade
Power supply of drive [V/ph/Hz]
200-240V/1ph/50-60Hz
Product group
Hermetic compressors
Product Name Description
Rotary compressor VRN
Refrigerants
R290
RLA
10 A
Rotational speed at 50Hz [rpm]
3000 rpm
Rotational speed at 60Hz [rpm]
3600 rpm
Segment usage
Heating
Speed Platform
Variable-speed
Suction connection angle [=C2=B0]
35 =C2=B0
Suction connection diameter [mm]
12.9 mm
Suction connection height [mm]
292 mm
Suction connection material
Copper
Swept volume [cm3]
22.6 cm=C2=B3
Torque earth [Nm]
1.5 N-m
Torque Ebox cover [Nm]
2 N-m
Total height [mm]
338.4 mm
Type
VRN226
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
Viscosity [cP]
68 cP
116B1002
Frequency converter, CDS203
116B2002
Frequency converter, CDS203
116B9001
Frequency converter, CDS203
116B9002
Frequency converter, CDS203
116B9003
Electrical component, Cable
116F1002
Frequency converter, CDS203
116F2002
Frequency converter, CDS203
