131H3163
Part Number: 131H3163
Product Information
Extended Description

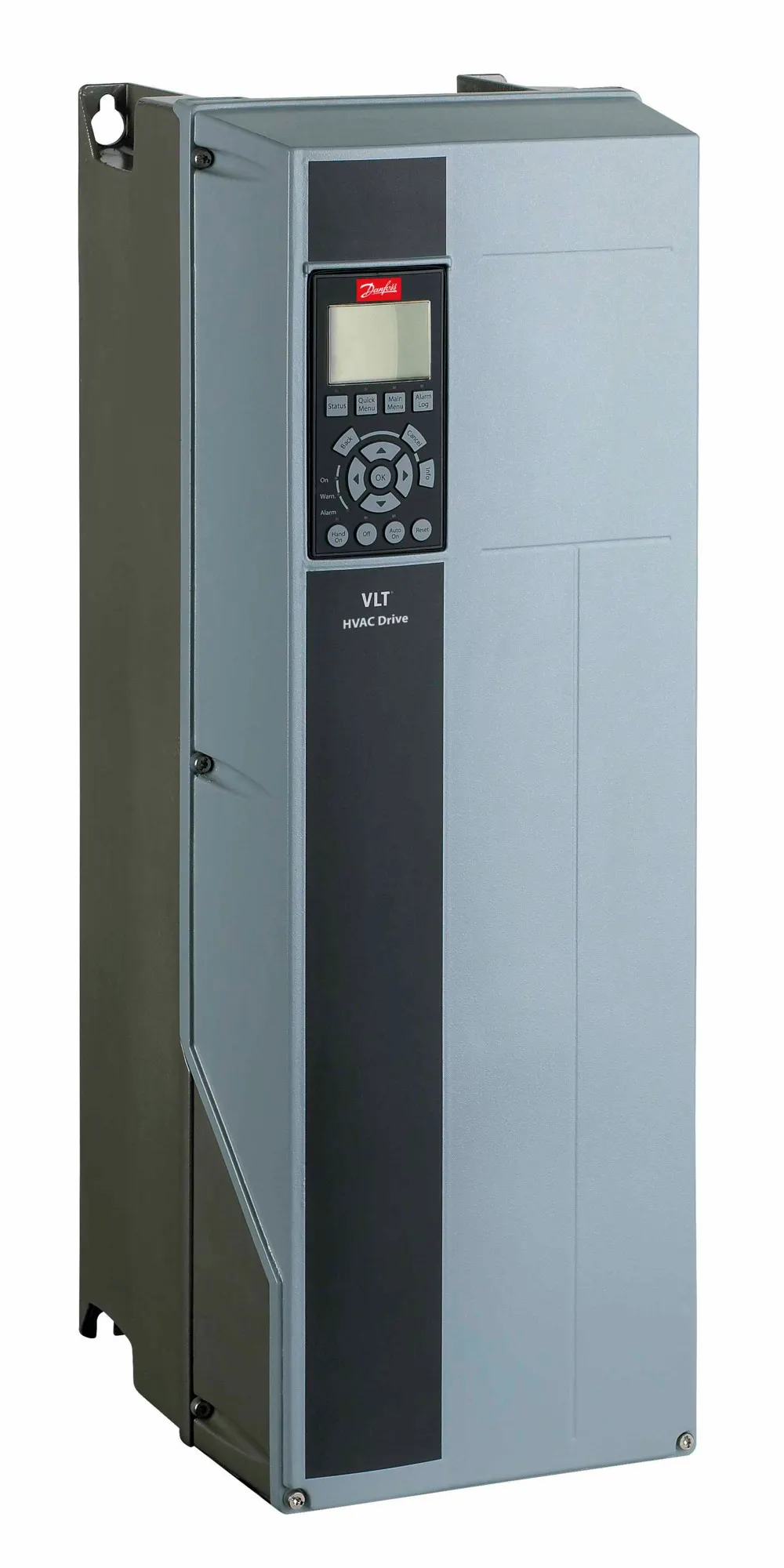

131H3163 Danfoss: Frequency ConverterFC-102P55KT4E55H1UGCXXXSXXXXAXBXCXXXXDXVLT® HVAC Drive FC-102(P55K) 55 KW / 75 HP, Three phase380 - 480 VAC, IP55 / Type 12(H1) RFI Class A1/B (C1)Brake chopper + Safe stopGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: C1No C1 option, No D optionNo A Option, No B OptionOther options according to Model Code
Gross weight
43.88 kg
Net weight
42.68 kg
Volume
228.095 l
EAN
5702427534506
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT® HVAC Drive FC-
Series
102 : 102
Power Rating
P55K : (P55K) 55 KW / 75 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E55 : IP55 / Type 12
RFI Filter
H1 : (H1) RFI Class A1/B (C1)
Brake - Safe Stop
U : Brake chopper + Safe stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
C1 : C1
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P55KT4E55H1UGC
Typecode Part 2
XXXSXXXXAXBXCXXXXDX
Power 110% (NO) [KW]
55
Height [mm]
685,0
Width w/ no C options [mm]
308,0
Depth [mm]
311,0
Depth with Option A/B [mm]
311,0
kVA
73.4
Power Loss NO [W]
1083
Continuous Current (NO) [A]
106
Intermittent Current (NO) [A]
117
Calculated Gross Weight [kg]
42.3
Calculated Net Weight [kg]
42
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P55KT4E55H1UGC
Modelcode02
XXXSXXXXAXBXCXXXXDX
Recommended Plant
ERR01
130B3397
Back plate IP21/Type 1, IP55/Type 12, B2
130B4598
Weather shield f. outdoor instl A4 to B2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1170
LCP Panel Mounting Kit
130B1387
5xMCB107 24VDC no coat w.out mount brack
130B1385
VLT=C2=AE Profibus DP V1 MCA101, unctd 5pcs
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1125
VLT=C2=AE General Purpose I/O MCB 101,unctd
130R1131
DrivePro ExWarr Work Shop PG04 30 Month
130R1134
DrivePro ExWarr Work Shop PG04 48 Month
130R1135
DrivePro ExWarr Work Shop PG04 54 Month
130R1137
DrivePro ExWarr Work Shop PG04 66 Month
130R1138
DrivePro ExWarr Work Shop PG04 72 Month
130R1136
DrivePro ExWarr Work Shop PG04 60 Month
130R1130
DrivePro ExWarr Work Shop PG04 24 Month
130R1132
DrivePro ExWarr Work Shop PG04 36 Month
130R1133
DrivePro ExWarr Work Shop PG04 42 Month
130R1034
DrivePro ExWarr Onsite PG04 48 Months
