131H9078
Part Number: 131H9078
Product Information
Extended Description

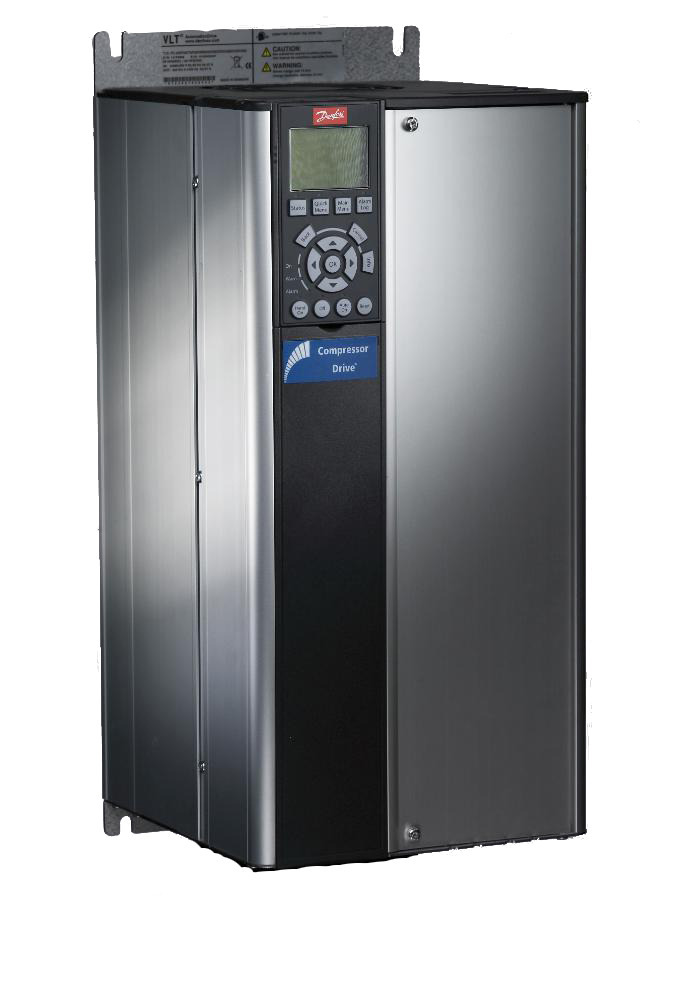

131H9078 Danfoss: CDS302 15.0kW; without coating; IP20; without LCP; H2; B3
Gross weight
11.22 Kilogram
Net weight
10.2 Kilogram
Volume
42.336 Liter
EAN
5702427595859
Approval
UKCA,CE,UL
Brand technique
Compressors Accessories
CE evaluated
Yes
China RoHS compliance
Out of scope
Coating
No
Contain batteries
No
Description
CDS302 15.0kW; without coating; IP20; without LCP; H2; B3
Family
Frequency converter
Frame
B3
IP class
IP20
LCP
No
Length [mm]
248 mm
Model number
CDS302P15KT4P20H2
Power consumption [kW]
15 kW
Product group
Compressors Accessories
Product Name Description
Frequency converter
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
RFI class
H2
SCIP dossier no.
1a831e7c-7a4b-42d0-a69f-a3f6d8f33828
SCIP dossier product name
CDS302 Frame Identification B3
Supply power range [V] AC [Max]
480 V
Supply power range [V] AC [Min]
380 V
Total height [mm]
419 mm
Type
CDS302
UL evaluated
Yes
Width [mm]
165 mm
