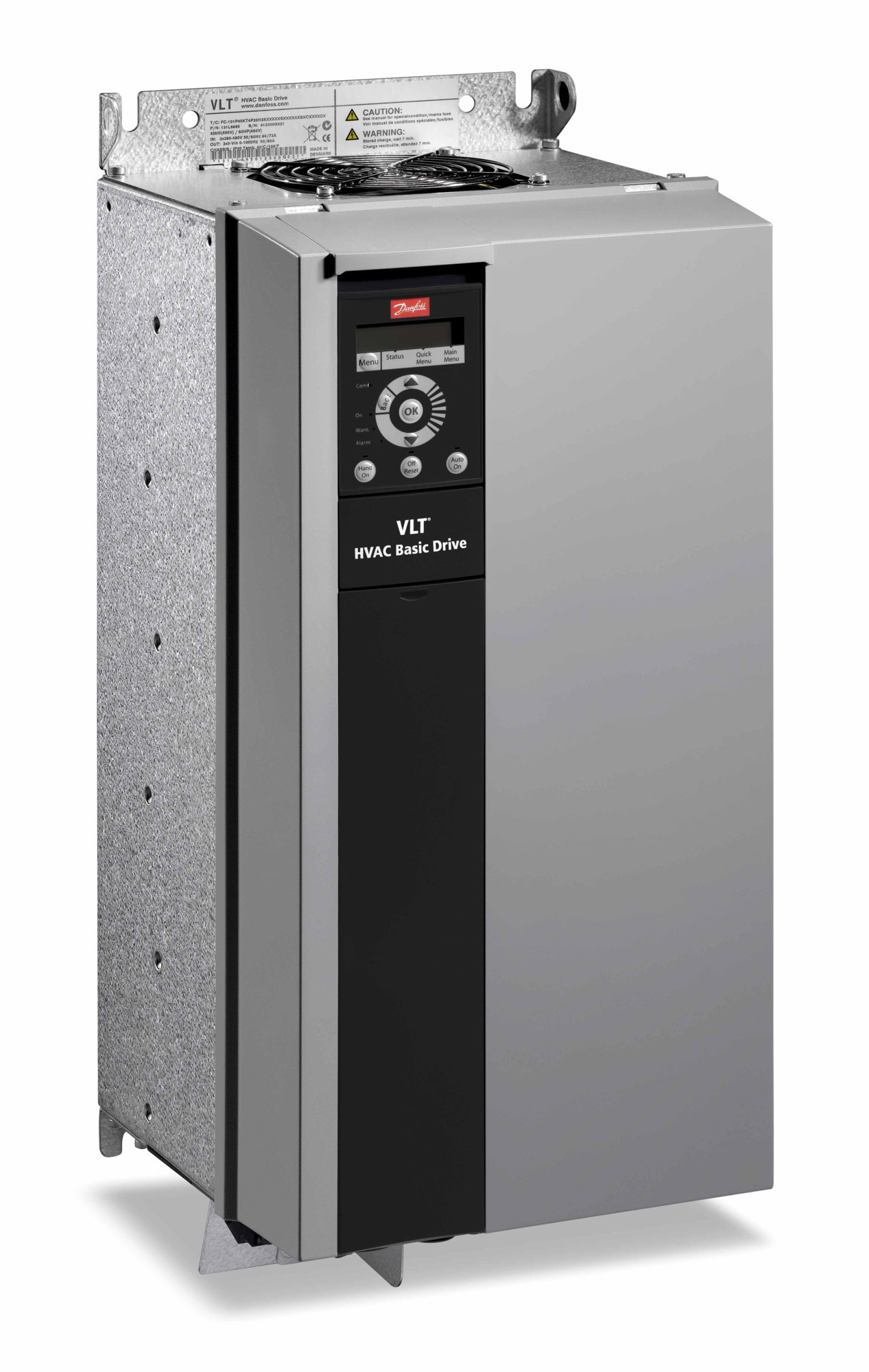

131L9911

Part Number: 131L9911
131L9911
Manufacturer
Danfoss
Part number
131L9911
Category

Product Information

Extended Description

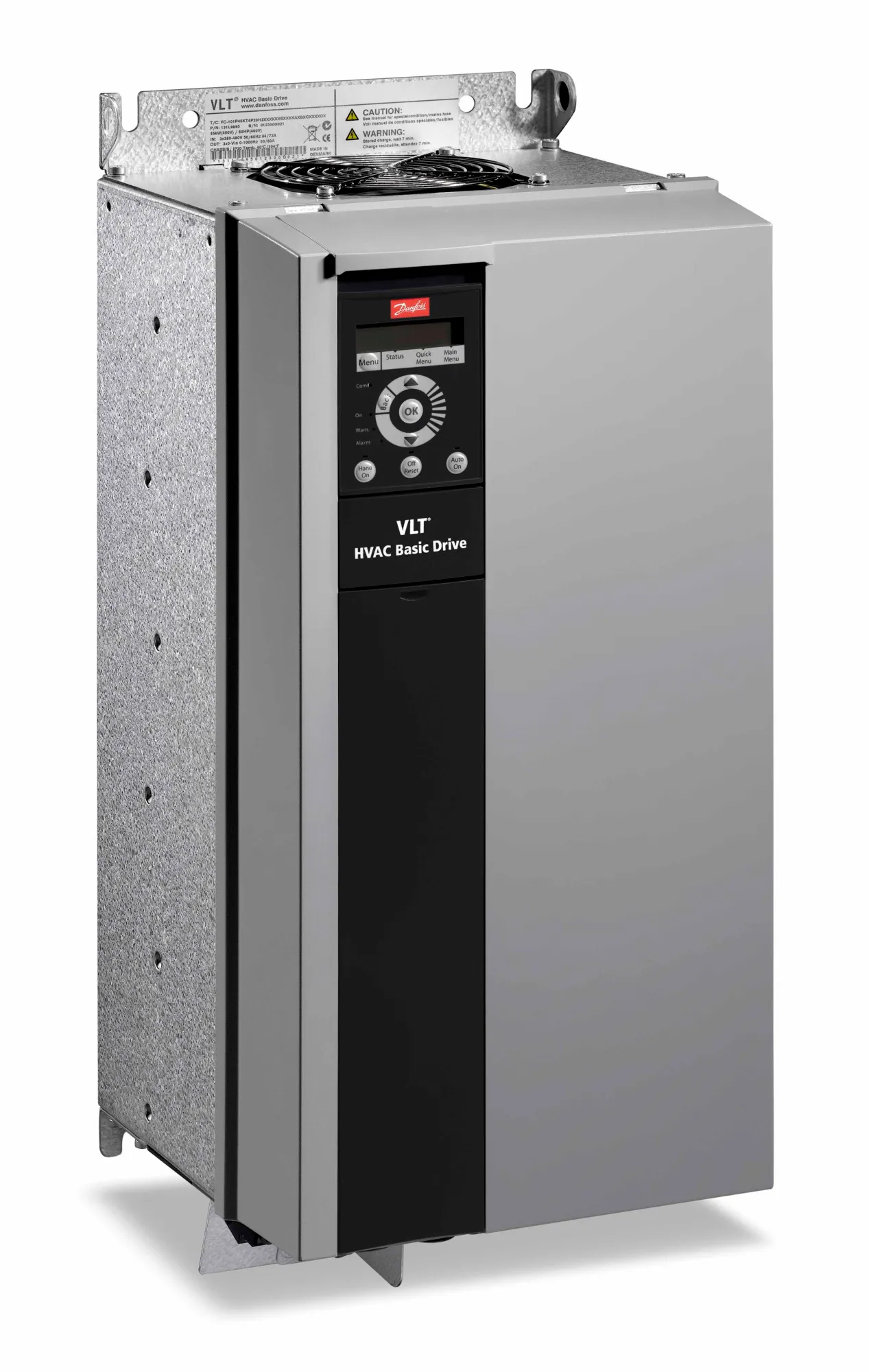

131L9911 Danfoss: Frequency ConverterFC-101P75KT4P20H3XXXXXXSXXXXAXBXCXXXXDXVLT® HVAC Drive FC- 101(P75K) 75 KW / 100 HP, Three phase380 - 480 VAC, IP20 / Chassis Backplate(H3) RFI Class A1/B (C1)No brake chopperNo Loc. Cont. PanelNot coated PCB, No Mains OptionNo A Option, No B OptionNo C1 option, No D optionFrame: H7Other options according to Model Code
Gross weight
39.4 kg
Net weight
39.1 kg
Volume
188.19 l
EAN
5702427808010
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT® HVAC Drive FC-
Series
101 : 101
Power Rating
P75K : (P75K) 75 KW / 100 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
P20 : IP20 / Chassis Backplate
RFI Filter
H3 : (H3) RFI Class A1/B (C1)
Brake - Safe Stop
X : No brake chopper
LCP
X : No Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
H7 : H7
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-101P75KT4P20H3XXX
Typecode Part 2
XXXSXXXXAXBXCXXXXDX
Calculated Net Weight [kg]
37
Calculated Gross Weight [kg]
37.3
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-101P75KT4P20H3XXX
Modelcode02
XXXSXXXXAXBXCXXXXDX
Recommended Plant
ERR01
132B0242
VLT=C2=AE Decoupling plate for frame H6 big
132B0217
IP21/Type1 Conversion Kit, H6
132B0207
Decoupling Plate mounting kit, H6
132B0203
VLT=C2=AEFC101_LCP31-RJ45 Converter plugs
132B0201
LCP 31 Mounting Kit, 3m cable
132B0200
VLT=C2=AE Control Panel LCP 31
132B0132
LCP Remote Mounting Cable, 3m
132B0206
VLT=C2=AELCP31 Panel Mounting Kit w/o cable
132B9222
Mains Free Interface FC101 LCP
VLT=C2=AE HVAC Basic Drive FC 101 Selection Guide VLT=C2=AE HVAC Basic Drive FC 101 SW4.2x Decoupling Kit, H6 FC 360 Relay-RS485 Connector Kit IP21 Type 1 H6-H8 LCP Installation Remote Mounting of LCP Remote Mounting of LCP VLT=C2=AE HVAC Basic Drive Cascade Control VLT=C2=AE HVAC Basic Drive FC 101 SW 4.4x SASO KSA R-205899 Danfoss EU 00771731.A2 Danfoss EU-UK 00730224 A7 Danfoss MD 00723827 A1 Danfoss MD 00773513 A1 Danfoss MD 00776252.A1 OSHPD OSP-0316 OSP-0087 VLT_Basic_H6_IP20 MCAD FC 101 H6 IP21 FC-101P37KT4E20H2XXXXXXSXXXXAXBXCXXXXDX MCAD FC 101 H6 IP20 FC-101P37KT4E20H2XXCXXXSXXXXAXBXCXXXXDX VLT=C2=AE Motion Control Tool MCT31 VLT=C2=AE HVAC Basic Support File VLT=C2=AE Drives DeviceNet EDS
