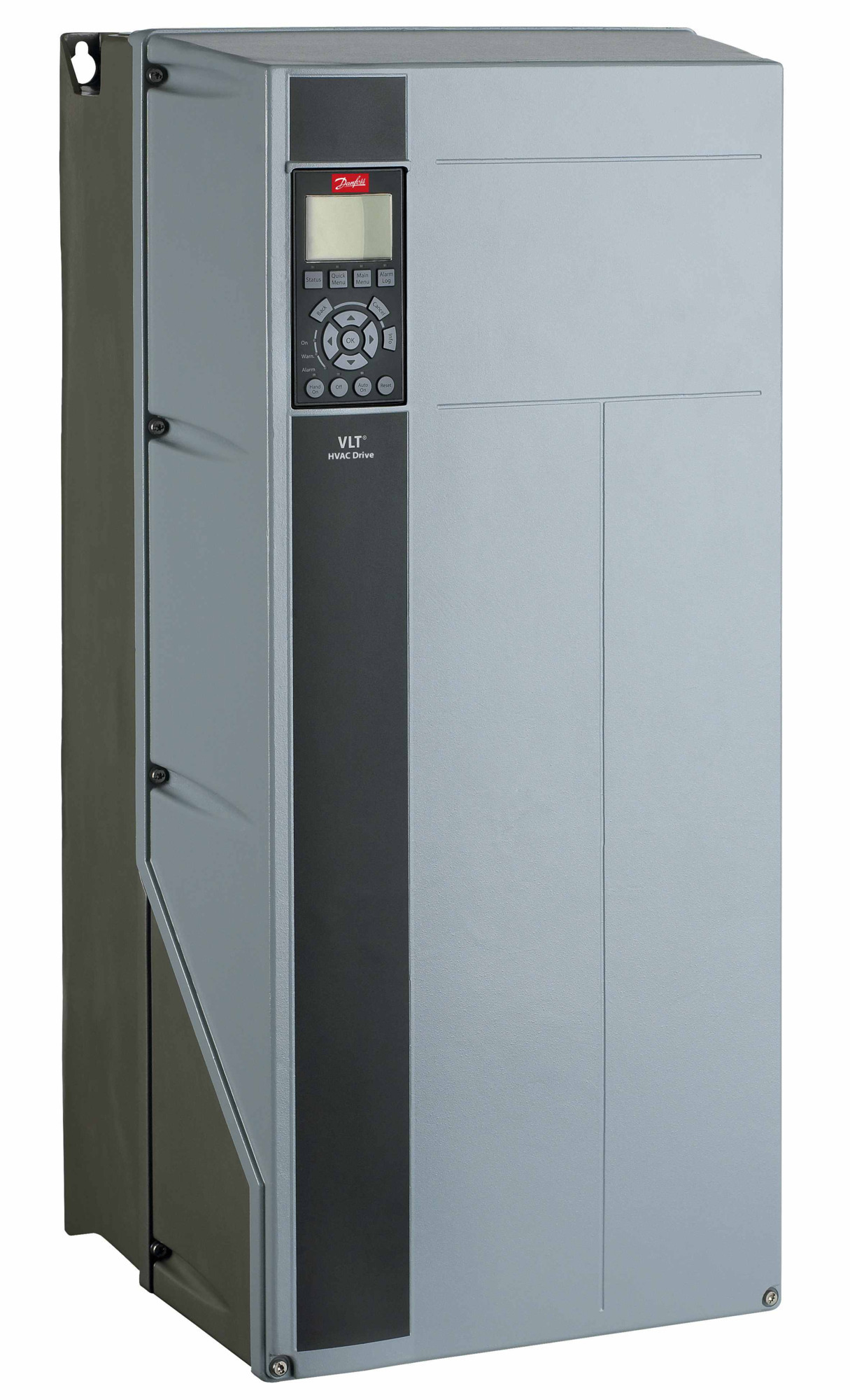

131U5630

Part Number: 131U5630
131U5630
Manufacturer
Danfoss
Part number
131U5630
Category

Product Information

Extended Description

131U5630 Danfoss: Frequency converterFC-302P4K0T5Z55H1BGXXXXSXXXXAXBXCXXXXDXVLT® AutomationDrive FC-302(P4K0) 4.0 KW / 5.0 HP, Three phase380 - 500 VAC, IP55 / Type 12 A4 Frame(H1) RFI Class A1/B (C1)Brake chopperGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: A4No C1 option, No D optionNo A Option, No B OptionOther options according to Model code
Gross weight
8.9 kg
Net weight
8.16 kg
Volume
52.36 l
EAN
5702427970458
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT® AutomationDrive FC-
Series
302 : 302
Power Rating
P4K0 : (P4K0) 4.0 KW / 5.0 HP
Phase
T : Three phase
Mains Voltage
5 : 380 - 500 VAC
Enclosure
Z55 : IP55 / Type 12 A4 Frame
RFI Filter
H1 : (H1) RFI Class A1/B (C1)
Brake - Safe Stop
B : Brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
A4 : A4
Typecode Part 1
FC-302P4K0T5Z55H1BGX
Typecode Part 2
XXXSXXXXAXBXCXXXXDX
Product Catalog
NO_VIEW : NO VIEW
Power 160% (HO) [KW]
4
Height [mm]
391,0
Width w/ no C options [mm]
200,0
Depth [mm]
177,0
Depth with Option A/B [mm]
177,0
kVA
6.93
Power Loss HO [W]
124
Continuous Current (HO) [A]
10
Intermittent Current (HO) [A]
16
Calculated Gross Weight [kg]
8.9
Calculated Net Weight [kg]
8.16
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-302P4K0T5Z55H1BGX
Modelcode02
XXXSXXXXAXBXCXXXXDX
Recommended Plant
ERR01
130B4597
Weather shield f. outdoor instl. C1, C2
130B3491
Back plate IP66/Type 4X, SS, C2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1235
VLT=C2=AE PROFINET MCA 120, coated
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1219
VLT=C2=AE EtherNet IP MCA 121, coated
130B1170
LCP Panel Mounting Kit
130B1212
VLT=C2=AE General Purpose I/O MCB 101, ctd
130R1140
DrivePro ExWarr Work Shop PG05 24 Month
130R1141
DrivePro ExWarr Work Shop PG05 30 Month
130R1142
DrivePro ExWarr Work Shop PG05 36 Month
130R1144
DrivePro ExWarr Work Shop PG05 48 Month
130R1145
DrivePro ExWarr Work Shop PG05 54 Month
130R1143
DrivePro ExWarr Work Shop PG05 42 Month
130R1147
DrivePro ExWarr Work Shop PG05 66 Month
130R1148
DrivePro ExWarr Work Shop PG05 72 Month
130R1146
DrivePro ExWarr Work Shop PG05 60 Month
130R1044
DrivePro ExWarr Onsite PG05 48 Months
