131Z1287
Part Number: 131Z1287
Product Information
Extended Description

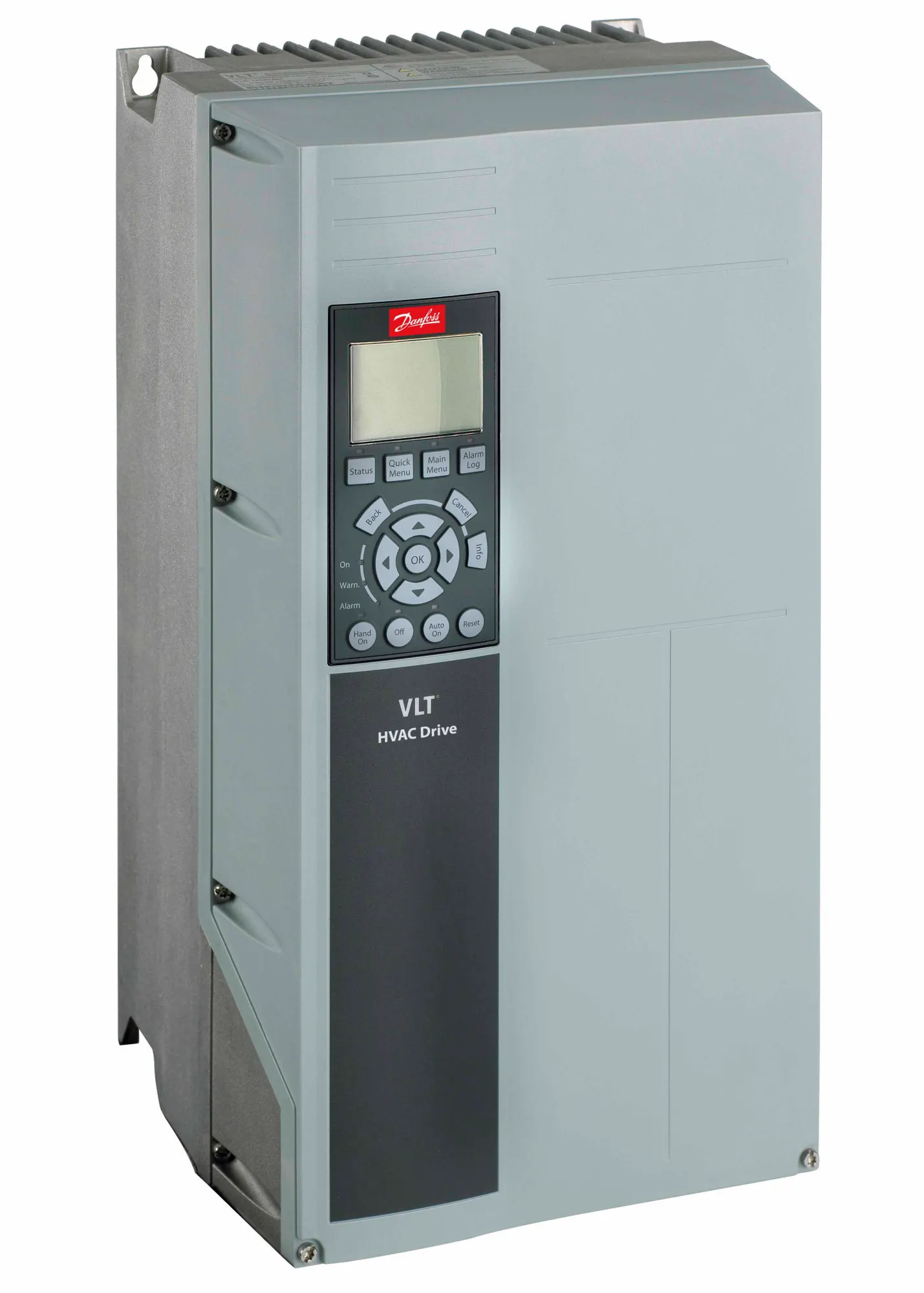

131Z1287 Danfoss: Frequency ConverterFC-102P30KT7P55H2XGCXXXSXXXXAXBXCXXXXDXVLT® HVAC Drive FC-102(P30K) 30 KW / 40 HP, Three phase525 - 690 VAC *, IP55 / Type12 BackplateRFI FilterNo brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: B2No C1 option, No D optionNo A Option, No B OptionOther options according to Model Code
Gross weight
30.2 kg
Net weight
29.9 kg
Volume
144.67 l
EAN
5710107309061
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT® HVAC Drive FC-
Series
102 : 102
Power Rating
P30K : (P30K) 30 KW / 40 HP
Phase
T : Three phase
Mains Voltage
7 : 525 - 690 VAC *
Possible rating issue
WARN01 : Possible Rating Issue:
Enclosure
P55 : IP55 / Type12 Backplate
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
B2 : B2
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P30KT7P55H2XGC
Typecode Part 2
XXXSXXXXAXBXCXXXXDX
Power 110% (NO) [KW]
30
Height [mm]
664,0
Width w/ no C options [mm]
243,0
Depth [mm]
261,0
Depth with Option A/B [mm]
261,0
kVA
40.6
Power Loss NO [W]
430
Continuous Current (NO) [A]
36
Intermittent Current (NO) [A]
39.6
Calculated Gross Weight [kg]
29.3
Calculated Net Weight [kg]
29
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P30KT7P55H2XGC
Modelcode02
XXXSXXXXAXBXCXXXXDX
Recommended Plant
ERR01
