131Z1292
Part Number: 131Z1292
Product Information
Extended Description

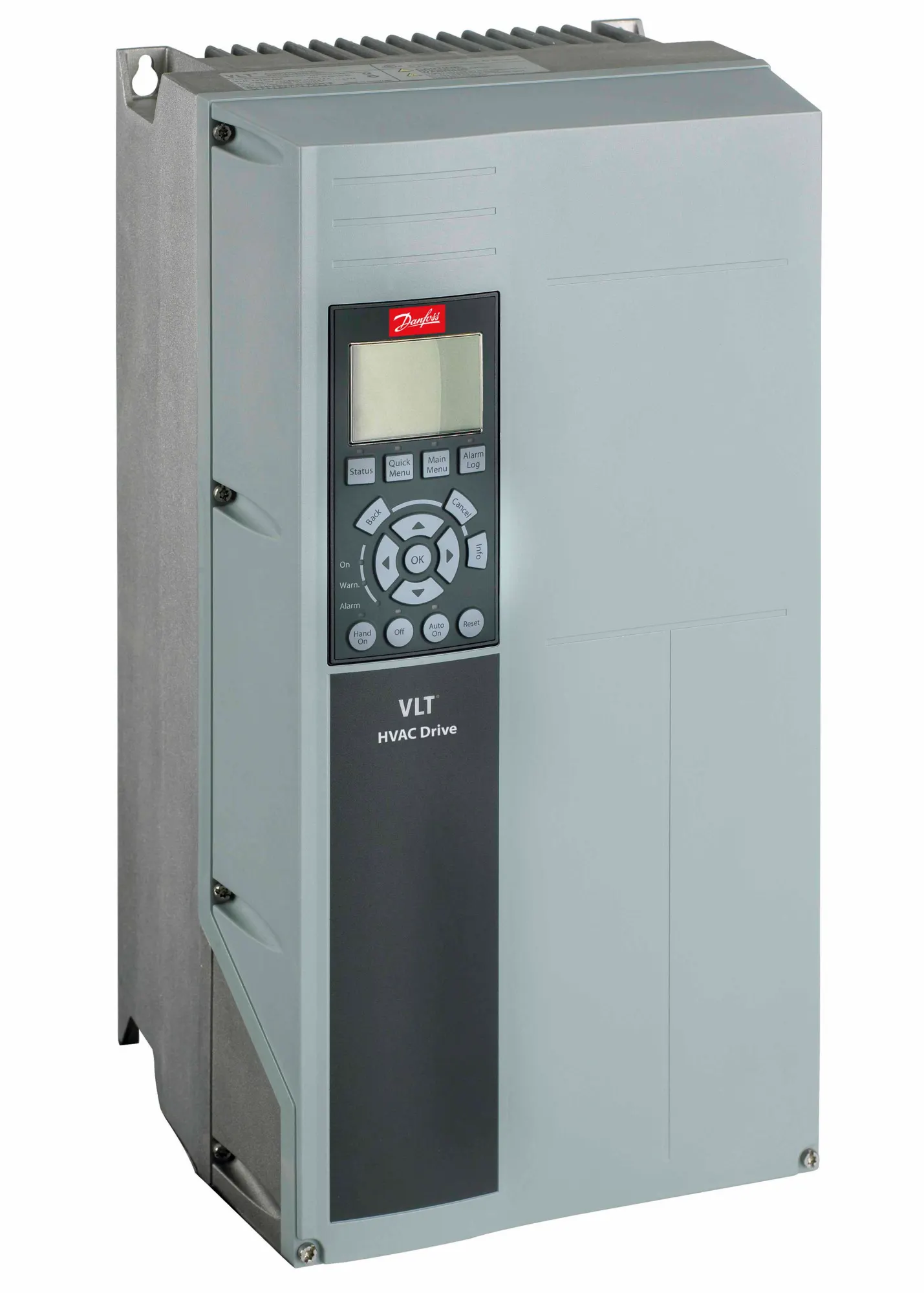

131Z1292 Danfoss: Frequency ConverterFC-102P90KT7P55H2XGCXXXSXXXXAXBXCXXXXDXVLT® HVAC Drive FC-102(P90K) 90 KW / 125 HP, Three phase525 - 690 VAC *, IP55 / Type12 BackplateRFI FilterNo brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: C2No C1 option, No D optionNo A Option, No B OptionOther options according to Model Code
Gross weight
61.1 kg
Net weight
60.8 kg
Volume
228.095 l
EAN
5710107309115
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT® HVAC Drive FC-
Series
102 : 102
Power Rating
P90K : (P90K) 90 KW / 125 HP
Phase
T : Three phase
Mains Voltage
7 : 525 - 690 VAC *
Possible rating issue
WARN01 : Possible Rating Issue:
Enclosure
P55 : IP55 / Type12 Backplate
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
C2 : C2
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P90KT7P55H2XGC
Typecode Part 2
XXXSXXXXAXBXCXXXXDX
Power 110% (NO) [KW]
90
Height [mm]
780,0
Width w/ no C options [mm]
370,0
Depth [mm]
332,0
Depth with Option A/B [mm]
332,0
kVA
120
Power Loss NO [W]
1440
Continuous Current (NO) [A]
105
Intermittent Current (NO) [A]
116
Calculated Gross Weight [kg]
61.3
Calculated Net Weight [kg]
61
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P90KT7P55H2XGC
Modelcode02
XXXSXXXXAXBXCXXXXDX
Recommended Plant
ERR01
130B4598
Weather shield f. outdoor instl A4 to B2
130B7532
Mounting Kit f. C Option, A5
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1170
LCP Panel Mounting Kit
130B1387
5xMCB107 24VDC no coat w.out mount brack
130B1385
VLT=C2=AE Profibus DP V1 MCA101, unctd 5pcs
130B1028
Panel Through Mounting Kit, A5
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1124
VLT=C2=AE Control Panel LCP 101, numeric
131F3242
FC-102P7K5T4E55H1UGCXXXSXXXXAXBXCXXXXDX
130R1121
DrivePro ExWarr Work Shop PG03 30 Month
130R1120
DrivePro ExWarr Work Shop PG03 24 Month
130R1122
DrivePro ExWarr Work Shop PG03 36 Month
130R1123
DrivePro ExWarr Work Shop PG03 42 Month
130R1126
DrivePro ExWarr Work Shop PG03 60 Month
130R1125
DrivePro ExWarr Work Shop PG03 54 Month
130R1124
DrivePro ExWarr Work Shop PG03 48 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
130R1128
DrivePro ExWarr Work Shop PG03 72 Month
