131Z4518
Part Number: 131Z4518
Product Information
Extended Description

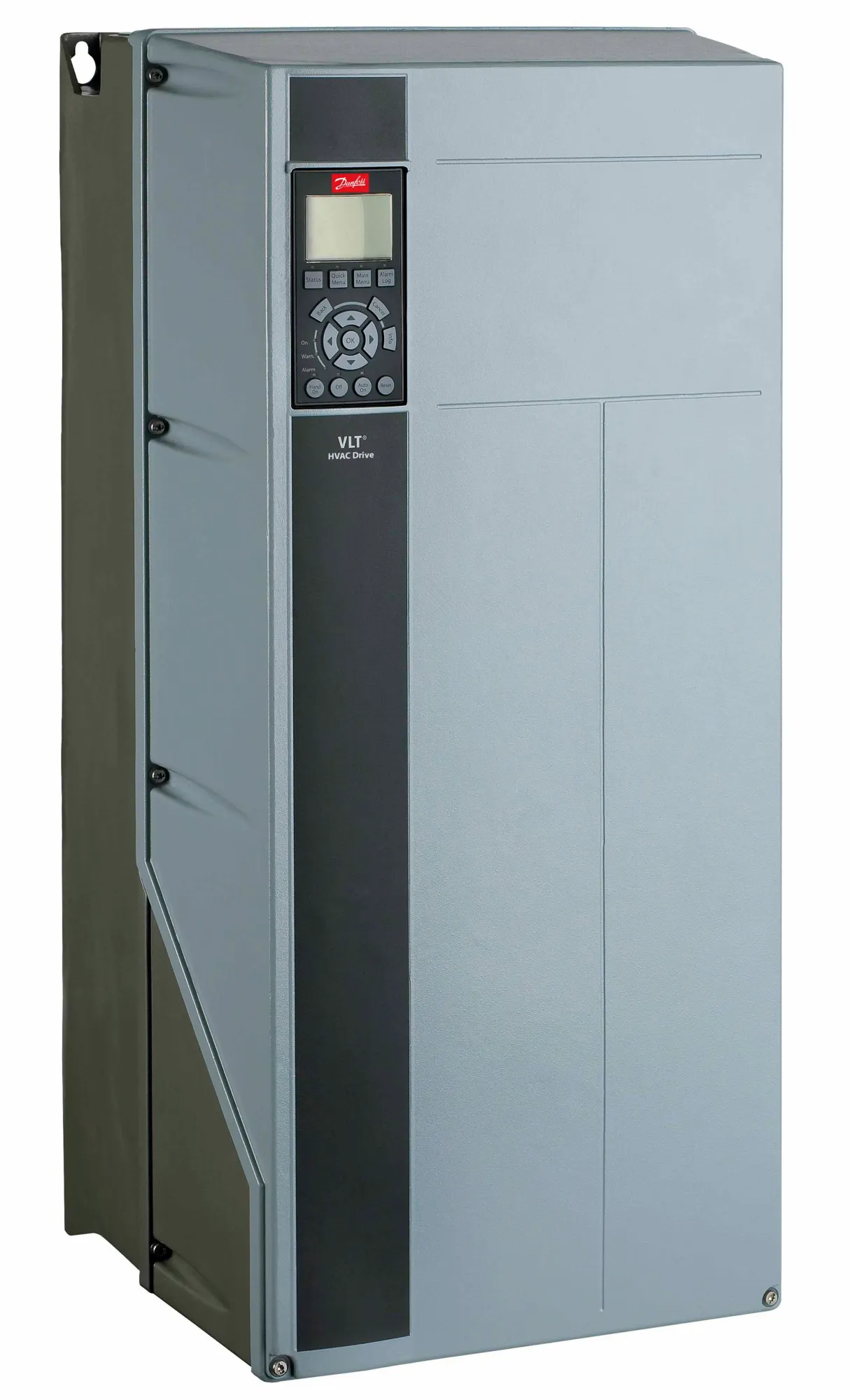

131Z4518 Danfoss: Frequency converterFC-202P75KT7P55H2XGCXXXSXXXXAXBXCXXXXDXVLT=C2=AE AQUA Drive FC-202(P75K) 75 KW / 100 HP, Three phase525 - 690 VAC *, IP55 / Type12 BackplateRFI FilterNo brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: C2No C1 option, No D optionNo A Option, No B OptionOther options according to Model code
Gross weight
58.62 kg
Net weight
56.78 kg
Volume
228.095 l
EAN
5710107341696
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE AQUA Drive FC-
Series
202 : 202
Power Rating
P75K : (P75K) 75 KW / 100 HP
Phase
T : Three phase
Mains Voltage
7 : 525 - 690 VAC *
Possible rating issue
WARN01 : Possible Rating Issue:
Enclosure
P55 : IP55 / Type12 Backplate
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
C2 : C2
Typecode Part 1
FC-202P75KT7P55H2XGC
Typecode Part 2
XXXSXXXXAXBXCXXXXDX
Product Catalog
GLBL : Global (Standard)
Power 150% (HO) [KW]
55
Power 110% (NO) [KW]
75
Height [mm]
780,0
Width w/ no C options [mm]
370,0
Depth [mm]
332,0
Depth with Option A/B [mm]
332,0
kVA
99.2
Power Loss NO [W]
1500
Power Loss HO [W]
1100
Continuous Current (NO) [A]
87
Intermittent Current (NO) [A]
95.7
Continuous Current (HO) [A]
65
Intermittent Current (HO) [A]
97.5
Calculated Gross Weight [kg]
58.62
Calculated Net Weight [kg]
56.78
ECCN EU
Y901
ECCN US
3A999.a
Plant from Orderline
B901
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-202P75KT7P55H2XGC
Modelcode02
XXXSXXXXAXBXCXXXXDX
130B4597
Weather shield f. outdoor instl. C1, C2
130B3911
Back plate IP21/Type 1, IP55/Type 12, C2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1235
VLT=C2=AE PROFINET MCA 120, coated
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1219
VLT=C2=AE EtherNet IP MCA 121, coated
130B1218
VLT=C2=AE Ext. Cascade Contr. MCO 101, ctd
130B1254
VLT=C2=AE Adv. Cascade Contr. MCO 102, ctd
130R1140
DrivePro ExWarr Work Shop PG05 24 Month
130R1141
DrivePro ExWarr Work Shop PG05 30 Month
130R1142
DrivePro ExWarr Work Shop PG05 36 Month
130R1144
DrivePro ExWarr Work Shop PG05 48 Month
130R1145
DrivePro ExWarr Work Shop PG05 54 Month
130R1143
DrivePro ExWarr Work Shop PG05 42 Month
130R1147
DrivePro ExWarr Work Shop PG05 66 Month
130R1148
DrivePro ExWarr Work Shop PG05 72 Month
130R1146
DrivePro ExWarr Work Shop PG05 60 Month
130R1044
DrivePro ExWarr Onsite PG05 48 Months
