132F0007
Part Number: 132F0007
Product Information
Extended Description
132F0007 Danfoss: FC-051P2K2S2E20H3BXCXXXSXXX
Gross weight
3.09 kg
Net weight
3.01 kg
Volume
10.881 l
EAN
5702427357488
Product View (Switch)
GLBL : Global (Standard)
Product Group

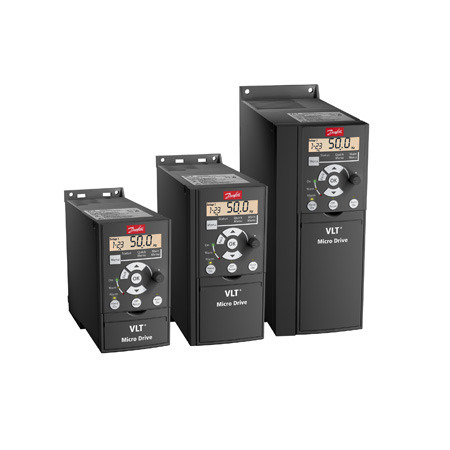

FC- : VLT® Micro Drive FC-
Micro Drive Series
051 : 51
Power Rating
P2K2 : (P2K2) 2.2 KW / 3.0 HP
Phase
S : Single phase
Mains Voltage
2 : 200 - 240 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H3 : (H3) RFI Class A1/B (C1)
Brake - Safe Stop
B : Brake chopper
LCP
X : No Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Frame Size
M3 : M3-FRAME
Typecode Part 1
FC-051P2K2S2E20H3BXCXXXSXXX
Modelcode01
FC-051P2K2S2E20H3BXCXXXSXXX
Product Catalog
NO_VIEW : NO VIEW
Calculated Gross Weight [kg]
3.3
Calculated Net Weight [kg]
3
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Recommended Plant
ERR01
132B0102
LCP Remote Mounting Kit,w/ 3m cable
132B0128
FC-051 Spare part kit for frame size M3
132B0984
FC021 Spare part kit for frame size M3
132B3236
Spare part of FC51 M3 cooling fan
132B3238
Spare part of FC51 M5 cooling fan
132B0102
LCP Remote Mounting Kit,w/ 3m cable
132B0101
VLT® Control Panel LCP 12, w. potmeter
132B0100
VLT® Control Panel LCP 11 w/o potmeter
132B0132
LCP Remote Mounting Cable, 3m
132B0131
Blank Cover
132B0110
IP21/Type1 conversion kit, M3
132B0107
Decoupling Plate Mounting Kit, M3
132B0105
Nema 1 Conversion Kit, M3
175N2584
VLT® EtherNet/IP Modbus TCP gateway
132B0657
FC21 LCP spare part
130R1011
DrivePro ExWarr Onsite PG02 30 Months
130R1118
DrivePro ExWarr Work Shop PG02 72 Month
130R1110
DrivePro ExWarr Work Shop PG02 24 Month
130R1112
DrivePro ExWarr Work Shop PG02 36 Month
130R1111
DrivePro ExWarr Work Shop PG02 30 Month
130R1113
DrivePro ExWarr Work Shop PG02 42 Month
130R1115
DrivePro ExWarr Work Shop PG02 54 Month
130R1116
DrivePro ExWarr Work Shop PG02 60 Month
130R1117
DrivePro ExWarr Work Shop PG02 66 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
VLT® Micro Drive FC 51 Selection Guide
VLT® Brake Resistor MCE 101
VLT® Micro Drive FC 51
VLT® FC 51 De-coupling Plate for M1-M2
VLT® FC 51 De-coupling Plate for M3
VLT® FC 51 Type1 Kit for M1 M2 M3
VLT® LCP Remote Mounting Kit
VLT® Micro Drive FC 51 DIN Rail Kit
VLT® Micro Drive FC 51 IP21 Kit
VLT® Micro Drive FC 51 LCP Mounting
SASO KSA R-205899
Danfoss EU 00729230 A5
Danfoss EU-UK 00730657 A4
Danfoss MD 00723827 A1
Danfoss MD 00729876 A4
Danfoss MD 00732787 A1
Danfoss MD 00738658 A3
VLT® Micro Drive
Wiring Schematic FC 51
FC-051P2K2S2E20H3BXCXXXSXXX
lcp_micro
FC 51 M3 drawing
VLT® Motion Control Tool MCT31
