132F0009
Part Number: 132F0009
Product Information
Extended Description

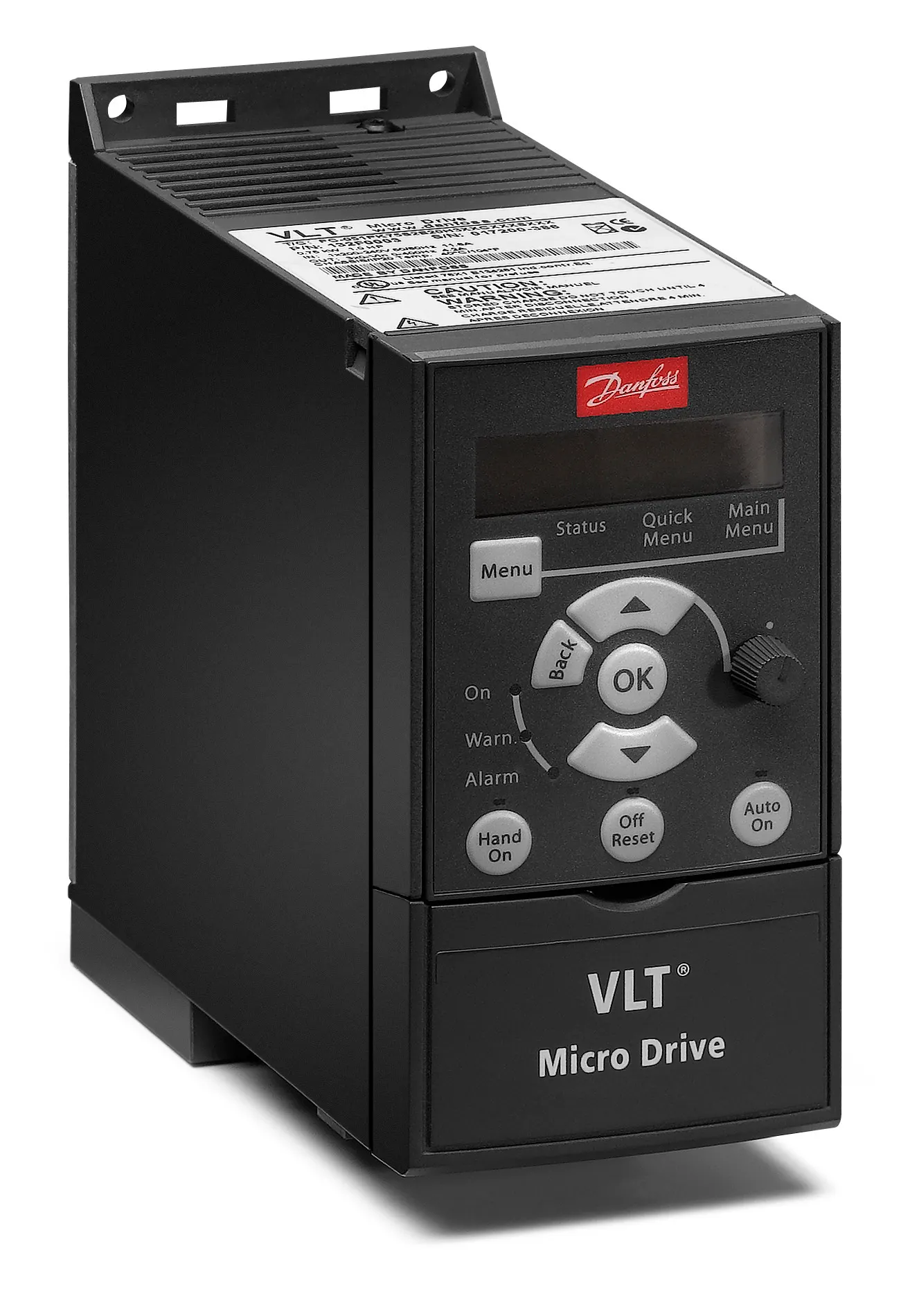

132F0009 Danfoss: Frequency ConverterFC-051PK37T2E20H3XXCXXXSXXXVLT® Micro Drive FC-51(PK37) 0.37 KW / 0.50 HP, Three phase200 - 240 VAC, (E20) IP20 / Chassis(H3) RFI Class A1/B (C1)No brake chopperNo Loc. Cont. PanelCoated PCB, No Mains OptionM1-FRAMEOther options according to Model code
Gross weight
1.3 kg
Net weight
1.1 kg
Volume
4.612 l
EAN
5702427357495
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT® Micro Drive FC-
Micro Drive Series
051 : 51
Power Rating
PK37 : (PK37) 0.37 KW / 0.50 HP
Phase
T : Three phase
Mains Voltage
2 : 200 - 240 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H3 : (H3) RFI Class A1/B (C1)
Brake - Safe Stop
X : No brake chopper
LCP
X : No Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Frame Size
M1 : M1-FRAME
Typecode Part 1
FC-051PK37T2E20H3XXCXXXSXXX
Modelcode01
FC-051PK37T2E20H3XXCXXXSXXX
Product Catalog
GLBL : Global (Standard)
Calculated Gross Weight [kg]
1.4
Calculated Net Weight [kg]
1.1
ECCN EU
Y901
ECCN US
3A999.a
Plant from Orderline
B902
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
132B0102
LCP Remote Mounting Kit,w/ 3m cable
132B0126
FC-051 Spare part kit for frame size M1
132B3234
Spare part of FC51 M1 cooling fan
132B3238
Spare part of FC51 M5 cooling fan
132B0103
Nema 1 Conversion Kit, M1
132B0102
LCP Remote Mounting Kit,w/ 3m cable
132B0101
VLT® Control Panel LCP 12, w. potmeter
132B0100
VLT® Control Panel LCP 11 w/o potmeter
132B0132
LCP Remote Mounting Cable, 3m
132B0131
Blank Cover
132B0111
DIN Rail Mounting Kit, M1, M2
132B0108
IP21/Type1 conversion kit, M1
132B0106
Decoupling Plate Mounting Kit, M1, M2
175N2584
VLT® EtherNet/IP Modbus TCP gateway
130R1118
DrivePro ExWarr Work Shop PG02 72 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
130R1128
DrivePro ExWarr Work Shop PG03 72 Month
130R1102
DrivePro ExWarr Work Shop PG01 36 Month
130R1104
DrivePro ExWarr Work Shop PG01 48 Month
130R1103
DrivePro ExWarr Work Shop PG01 42 Month
130R1105
DrivePro ExWarr Work Shop PG01 54 Month
130R1107
DrivePro ExWarr Work Shop PG01 66 Month
130R1106
DrivePro ExWarr Work Shop PG01 60 Month
130R1108
DrivePro ExWarr Work Shop PG01 72 Month
VLT® Micro Drive FC 51 Selection Guide
VLT® Micro Drive FC 51
VLT® FC 51 De-coupling Plate for M1-M2
VLT® FC 51 Type1 Kit for M1 M2 M3
VLT® LCP Remote Mounting Kit
VLT® Micro Drive FC 51 DIN Rail Kit
VLT® Micro Drive FC 51 IP21 Kit
VLT® Micro Drive FC 51 LCP Mounting
VLT Micro Drive FC 51 Operating Guide A3
VLT® Micro Drive FC 51
SASO KSA R-205899
Danfoss EU 00729230 A5
Danfoss EU-UK 00730657 A4
Danfoss MD 00723827 A1
Danfoss MD 00729876 A4
Danfoss MD 00732787 A1
Danfoss MD 00738658 A3
VLT Micro Drive FC 51, M1 left
VLT® Micro Drive
Wiring Schematic FC 51
FC-051PK37T2E20H3XXCXXXSXXX
lcp_micro
FC 51 M1 drawing
VLT® Motion Control Tool MCT31
