132H0691
Part Number: 132H0691
Product Information
Extended Description

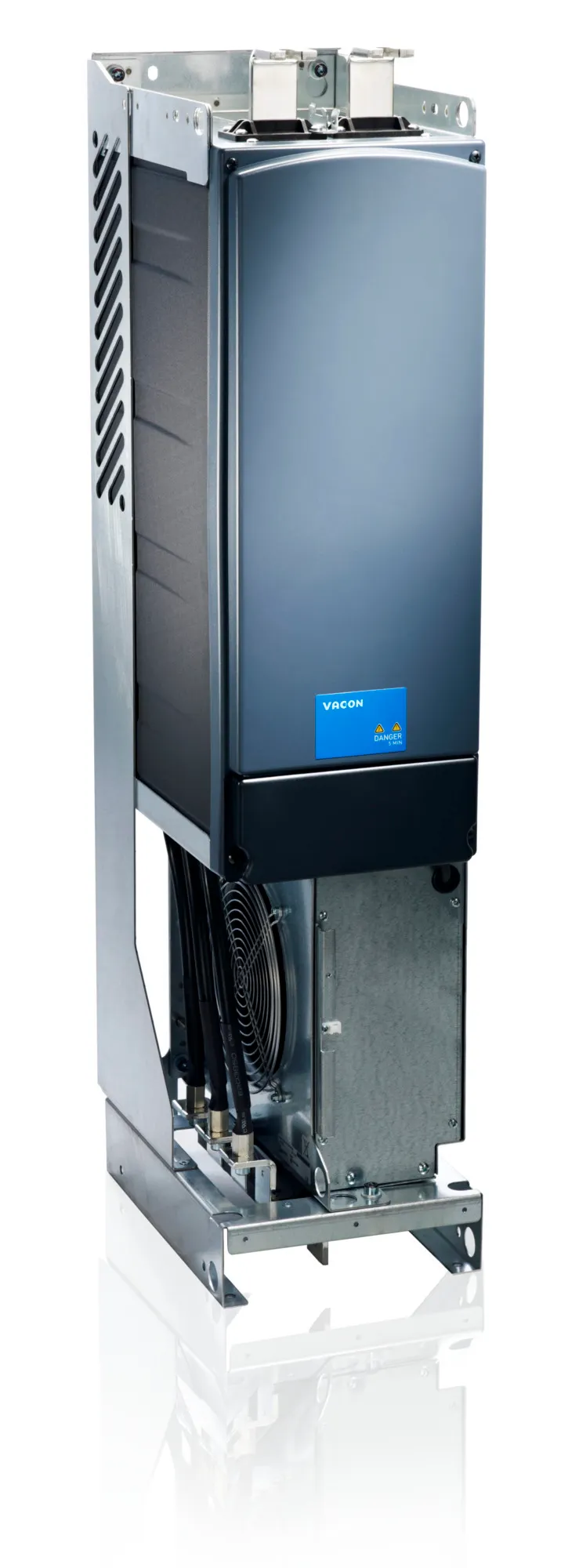

132H0691 Danfoss: NXP23406-A0T1UWG-A1AFA5B8C5Vacon NXP Frequency Converter525 – 690 Vac (640-1100 Vdc), 2340 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksIntegrated Brake chopperA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: STO, ATEX thermC Slot: 3DI(Enc.10-24V),15/24VoutD Slot: 3Pt100, +24 V/EXT+24 VE Slot: PROFIBUS DP Sub-D9, Spare onlyManual: English2xFrame 74 liquid cooledOther options according to Model code
Gross weight
561 kg
Net weight
560 kg
Volume
0 l
EAN
5714853292851
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
W : Liquid cooling
Mains voltage
6- : 525 – 690 Vac (640-1100 Vdc)
Current
2340 : 2340 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
1 : Integrated Brake chopper
Electrical Modification
U : 12-pulse No choke Spare unit
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
AF : STO, ATEX therm
Option Slot C
A5 : 3DI(Enc.10-24V),15/24Vout
Option Slot D
B8 : 3Pt100, +24 V/EXT+24 V
Option Slot E
C5 : PROFIBUS DP Sub-D9, Spare only
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT : RCM Approval N16307
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
DH74 : 2xFrame 74 liquid cooled
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-234060
Typecode Part 2
-000026396
Salestext
DH7423406-0T
Modelcode01
NXP23406-A0T1UWG-
Modelcode02
A1AFA5B8C5
Calculated Net Weight [kg]
560
Calculated Gross Weight [kg]
561
Motor Power Low Overload [kW]
2100
Motor Power High Overload [kW]
-
Dimensions WxHxD [mm]
2X(746X1175X375)
Continuous Current (NO) [A]
2127
Continuous Current (HO) [A]
1560
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stockcode part 1
7DW-234060-1178W3
Stock Code
7DP-234060
check if complete
OK
Calculated Net Weight
560
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
181B1562
Control box assembly NX light blue
181B1586
Fuse middle insulator
181B1588
EMC-shield - feed busbar insulator
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1591
Vacon NXP panel 9-buttons overlay
181B1339
M6x16 DIN 7985 Z4-1 TX ZN 4.8 400pcs
181B1338
M6x25 DIN 7985 Z4-1 TX ZN 8.8 300pcs
181B1312
Busbar kit
181B1432
Earthing plate kit
