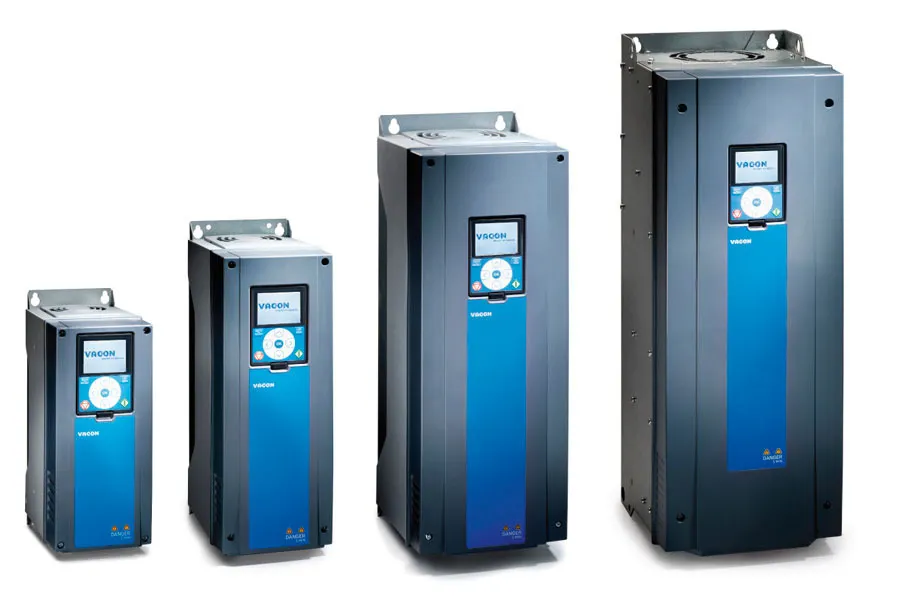

132H7316
Part Number: 132H7316
Product Information
Extended Description
132H7316 Danfoss: NXA11505-A0T02SG-A1A2D7B5E9+MASG+ARFIFF03+GAMA+LPC2Vacon Active Front-End Unit380 – 500 Vac (465-800 Vdc), 1150 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: Line voltage meas.D Slot: 3RO(NO)E Slot: 2-port ethernetManual: EnglishFrame 13 INUOther options according to Model code
Gross weight
307 kg
Net weight
306 kg
Volume
0 l
EAN
5714853364541
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXA : Active Front-End Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 – 500 Vac (465-800 Vdc)
Current
1150 : 1150 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
2 : AFE module w/o LCL
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
D7 : Line voltage meas.
Option Slot D
B5 : 3RO(NO)
Option Slot E
E9 : 2-port ethernet
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
+MASG : Grid Converter license
Application
+ARFIFF03 : Grid Converter NXA,NXI,NXP
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC2 : Two sets of product labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
+GAMA : MarineAppr w case specific req
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FI13 : Frame 13 INU
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DA-115050
Typecode Part 2
-000041549
Salestext
FI1311505-0T
Modelcode01
NXA11505-A0T02SG-
Modelcode02
A1A2D7B5E9
Modelcode03
+MASG
Modelcode04
+ARFIFF03
Modelcode05
+GAMA
Modelcode06
+LPC2
Calculated Net Weight [kg]
292
Calculated Gross Weight [kg]
293
Motor Power Low Overload [kW]
773
Motor Power High Overload [kW]
-
Dimensions WxHxD [mm]
708X1030X553
Continuous Current (NO) [A]
1150
Continuous Current (HO) [A]
1030
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DA-115050
check if complete
OK
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
181B2113
IGBT kit 500V
181B2111
Single adapter board
181B2110
Rectifier board
181B2109
Thyristor protection board 380-500V MR10
181B2108
Power supply board 380-690V for MR10
181B2105
Accessories bag MR10 module
181B2231
Fuse 800A 690VAC size 3 aR
181B1961
Input fuse plain blade 700A aR 690VAC si
181B1959
Fuse 1000A 900VAC
181B1950
Aux power supply 24VDC 60W
181B0586
OPT-E7-V:DeviceNet
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1472
OPT-B2-V+DLES:1RO(NO/NC),1RO(NO),therm
181B1473
OPT-B4-V+DLES:AI,2AO(mA,isol),+24V/EXT
181B1481
OPT-B1-V+DNOT:6 programmableDI/DO
181B1738
OPT-B4-V+DLFR:AI,2AO(mA,isol),+24V/EXT
181B2134
OPT-B2-V+DLDE:1RO(NO/NC),1RO(NO),therm
181B2151
OPT-B2-V+DNOT:1RO(NO/NC),1RO(NO),therm
181B2152
OPT-B4-V+DNOT:AI,2AO(mA,isol),+24V/EXT
130R1167
DrivePro ExWarr Work Shop PG07 66 Month
130R1162
DrivePro ExWarr Work Shop PG07 36 Month
130R1164
DrivePro ExWarr Work Shop PG07 48 Month
130R1163
DrivePro ExWarr Work Shop PG07 42 Month
130R1165
DrivePro ExWarr Work Shop PG07 54 Month
130R1166
DrivePro ExWarr Work Shop PG07 60 Month
130R1168
DrivePro ExWarr Work Shop PG07 72 Month
130R1160
DrivePro ExWarr Work Shop PG07 24 Month
130R1161
DrivePro ExWarr Work Shop PG07 30 Month
130R1068
DrivePro ExWarr Onsite PG07 72 Months
