132H9658
Part Number: 132H9658
Product Information
Extended Description

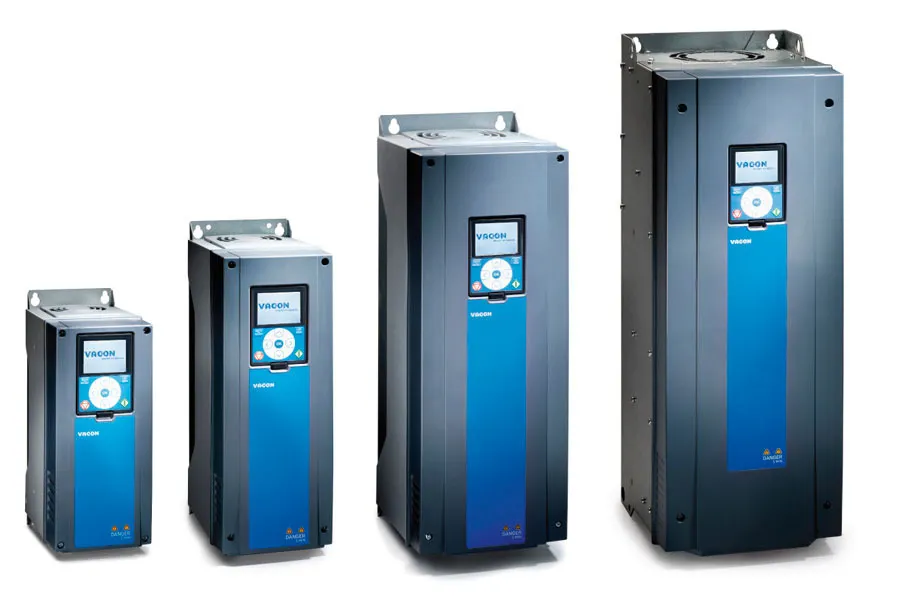

132H9658 Danfoss: Frequency converterVACON0100-3L-0208-6-R02+SEBJ+IP54+DBINVACON 100 Industrial525-600 Vac, 208 Amp, IP54/NEMA12Graphical Keypad MK01EMC C4 System ComponentB Slot: F3,3 Relay boardC Slot: No boardD Slot: No boardFieldbus: IndEth (ProfinetIO,EthernetIP)Manual: EnglishFrame 09E Slot: BJ,STO, ATEX thermATEX: II (2) GDOther options according to Model code
Gross weight
121 kg
Net weight
120 kg
Volume
0 l
EAN
5714853388868
Product View (Switch)
GLBL : Global (Standard)
Segment
NONE : VACON 100 Industrial
Region Code
-R02 : R02 North America
Mains voltage
-6 : 525-600 Vac
Current rating
-0208 : 208 Amp
Installation options
-DM : DM Drive Module
Enclosure
+IP54 : IP54/NEMA12
Control panel
+HMGR : Graphical Keypad MK01
EMC emission limit category
+EMC4 : EMC C4 System Component
Common mode filter (for DM)
+P000 : No Option
DUT filter (for DM)
+P000 : No Option
Brake chopper
+DBIN : Integrated Brake Chopper
Real time clock option
+SRNO : No Battery for real time clock
Configurable power range
NONE : None
Power connections
+P000 : No Power options (+P000)
Cable entry
+QGLC : Inch conduit plate
Additional Equipment B
+Q000 : No option for Qxxx_B (+Q000)
Additonal Equipment C
+Q000 : No additonal option for Qxxx_C
Shipping package
+GSCB : Cardboard Box as Shipping pack
Marine construction
+E000 : no option
B-Slot Option Board
+SBF3 : F3,3 Relay board
C- Slot Option Board
+SC00 : No board
D-Slot Option Board
+SD00 : No board
E-Slot Option Board
+SEBJ : BJ,STO, ATEX therm
Internal FB selection
+FBIE : IndEth (ProfinetIO,EthernetIP)
Documentation level
+DQCK : Quick Guide
Document language preference
+DLUK : English
Firmware Language Pack
+FL03 : UK, ES, FR, IT, NL, PT lang
Application
+A0000 : No Application
Parameter Set
+L0000 : No application parameter set
Motor parameter default freq
+LS60 : 60 Hz def motor freq settings
Unit for measure for display
+LSUS : US Customary Units of Measure
Labeling options
+LPC1 : no additional labels
UL approval
+GAUL : UL Approval (+GAUL)
Marine approval
NONE : None
RCM Approval
+GACT : RCM Approval N16307
KC approval
+GAKC : KC Approval
Ukrainian approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Auxilary power supply
+C000 : no option
DC power supply for aux device
+C000 : no option
AC socket for aux devices
+C000 : no option
Input Devices
NONE : none_
Common mode filter (for ED)
+P000 : no option
DU/DT, Sine filter (for ED)
+P000 : no option
Terminal Options
NONE : none_
Door Equipments
+C000 : no option
Cabinet heater
+C000 : no option
Cabinet light
+C000 : no option
Motor heater control
+C000 : no option
Emergency stop options
+C000 : no option
Insulation fault sensor
+C000 : no option
Cabling from top
+C000 : no option
Back channel cooling
+C000 : no option
Cabinet Plinth
+C000 : no option
Empty extension segment
NONE : None
Standardized cabinet solution
NONE : None
Engineered cabinet solution
NONE : None
Product Group
VACON : VACON
Product Series
0100 : Vacon 100 series
Phase
-3L : 3 Phase AC Input
Customized
+BM26 : Vacon 100
Main Circuit
+M000 : NONE
Firmware
+F0072 : Vacon0100 Software package
Max output frequency
NONE : None
Terminal Box
+T000 : NONE
Bypass Control Operation Mode
NONE : none_
Bypass Input Type
NONE : none_
Bypass power connection type
NONE : none_
CE approval
+GACE : CE Approval (+GACE)
ATEX Approval
NONE : None
County Specific Approval
NONE : None
Warrenty time
+WT01 : Warranty 12/18 months (+WT01)
Frame Size
MR09 : Frame 09
Product Catalog
NO_VIEW : NO VIEW
Modelcode01
VACON0100-3L-0208-6
Modelcode02
-R02+SEBJ+IP54+DBIN
Calculated Net Weight [kg]
120
Calculated Gross Weight [kg]
121
Motor Power Low Overload [kW]
200
Motor Power High Overload [kW]
150
Dimensions WxHxD [mm] net
480 X 1150 X 365
Dimensions WxHxD [mm] Gross
730 X 1310 X 570
Continuous Current (NO) [A]
208
Continuous Current (HO) [A]
170
Motor Power HP Low Overload
200
Motor Power HP High Overload
150
ATEX Marking 1
ATEX: II (2) GD
Typecode Part 1
70-AB3L02086W09B541BM26
Typecode Part 2
-000048696
check if complete
OK
Plant from Orderline
1300
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Help Counter
19
Sub family identification
NONE : Normal customer ordered
ECCN US
3A999.a
ECCN EU
Y901
181B1403
T60404-N4644-X0 500A current sensor
181B1402
Power Supply Board 380V-690V =C3=82
181B2246
Driver Board 525/690V Semix3s
181B1962
Control extension cable
181B1958
Fuse 400A 690VAC
181B1952
Fuse plain blade 350A aR 690VAC size 1
181B1951
Fuse plain blade 315A aR 690VAC size 1
181B1950
Aux power supply 24VDC 60W
181B1935
Fuse plain blade 500A aR 690VAC size 2
181B1101
DC-link cap. 700uF 800V
181B0586
OPT-E7-V:DeviceNet
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1472
OPT-B2-V+DLES:1RO(NO/NC),1RO(NO),therm
181B1473
OPT-B4-V+DLES:AI,2AO(mA,isol),+24V/EXT
181B1481
OPT-B1-V+DNOT:6 programmableDI/DO
181B1738
OPT-B4-V+DLFR:AI,2AO(mA,isol),+24V/EXT
181B2134
OPT-B2-V+DLDE:1RO(NO/NC),1RO(NO),therm
181B2151
OPT-B2-V+DNOT:1RO(NO/NC),1RO(NO),therm
181B2152
OPT-B4-V+DNOT:AI,2AO(mA,isol),+24V/EXT
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1151
DrivePro ExWarr Work Shop PG06 30 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
130R1057
DrivePro ExWarr Onsite PG06 66 Months
