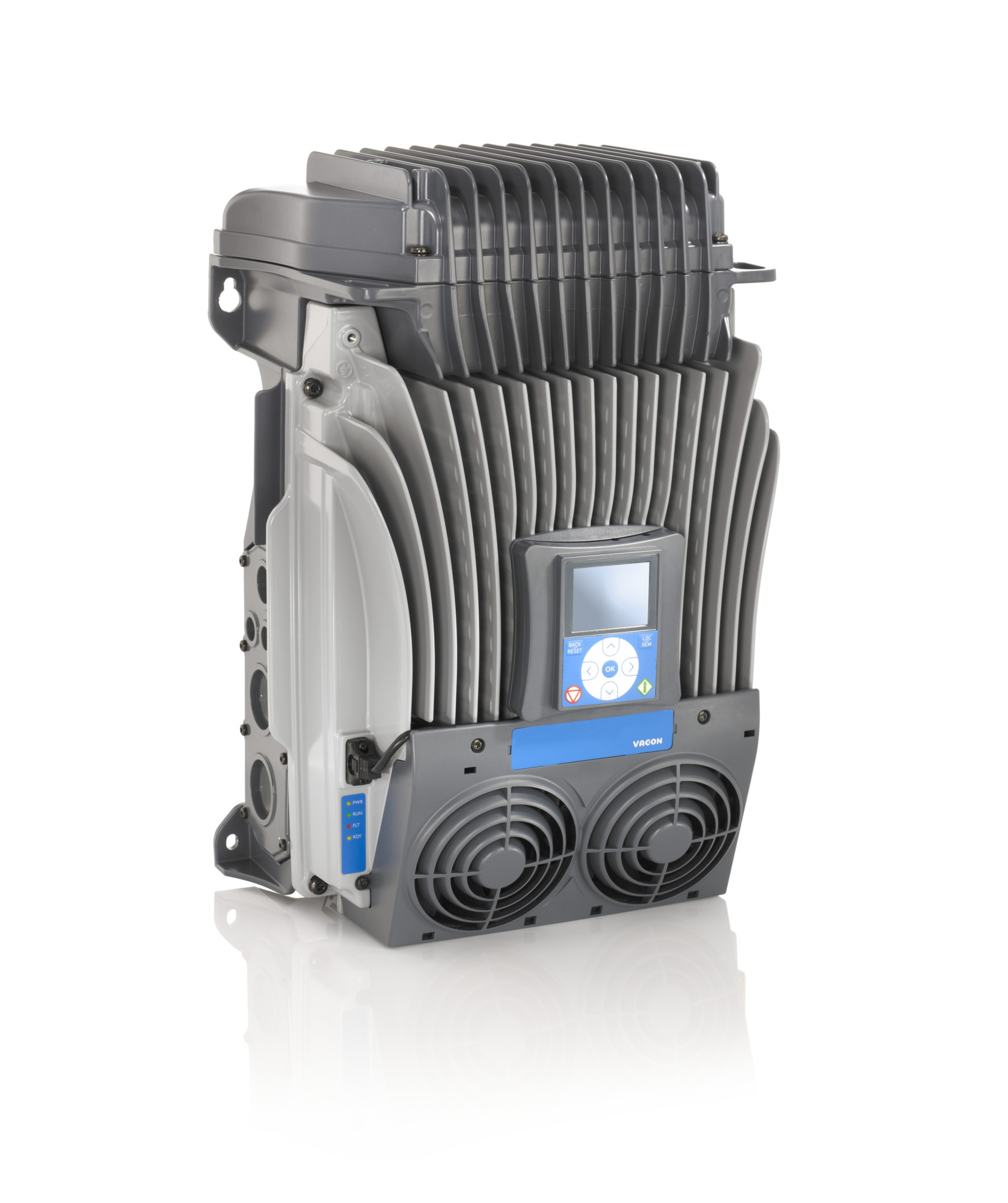

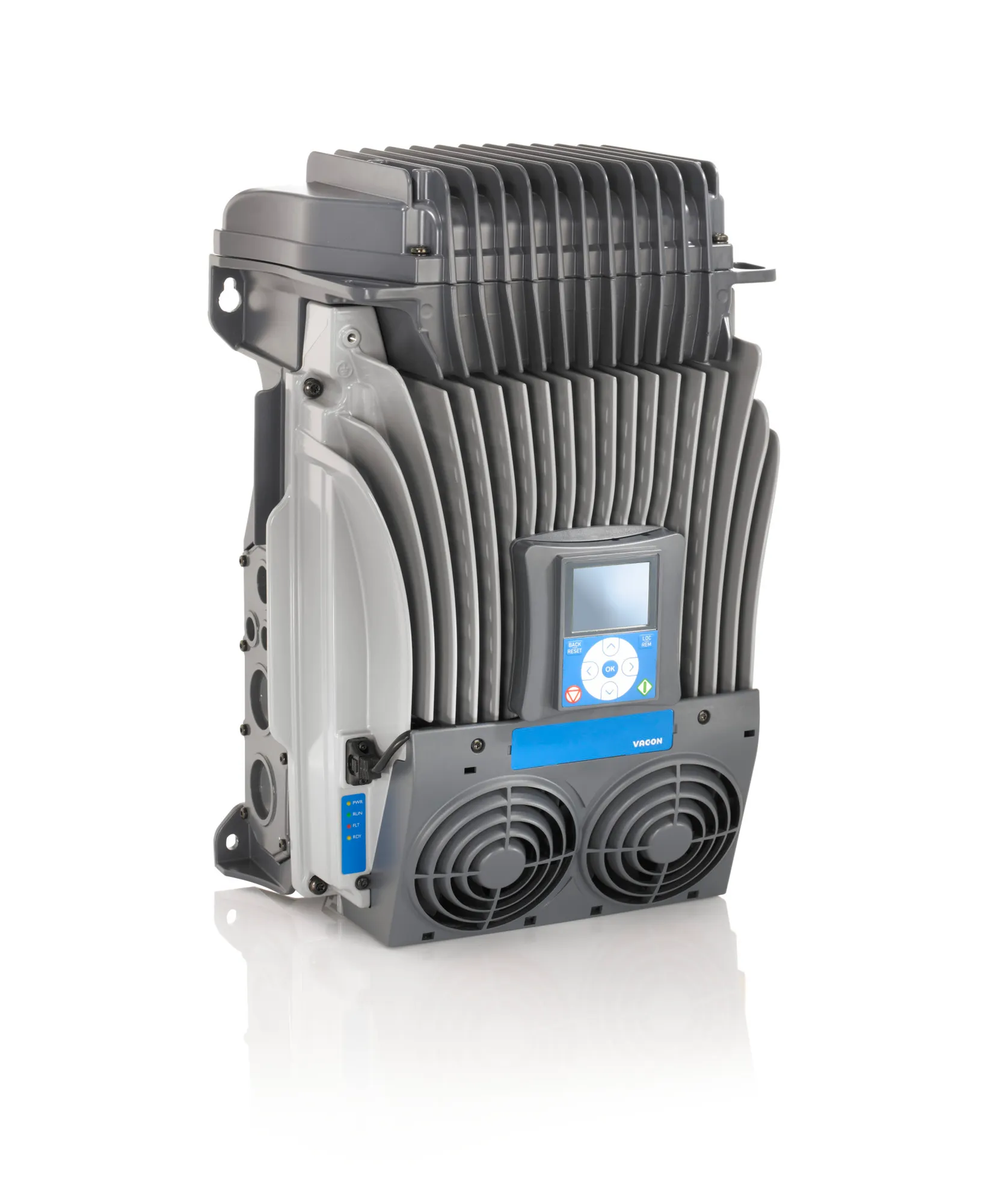

132L6074
Part Number: 132L6074
Product Information
Extended Description
132L6074 Danfoss: VACON0100-3L-0031-2-X+LS60+FL06+A1181+FBIE+HMGRVACON® 100X31 AMP, (-2) 208 – 240 Vac(+DBIN) Brake Chopper, (+LS60) 60 HzC2 Commercial&Industry EnvironIndEth (ProfinetIO,EthernetIP), Graphical KeypadD Slot: No boardE Slot: No boardOther options according to Model code
Gross weight
15.65 kg
Net weight
14.9 kg
Volume
0.378 hl
EAN
5714853455744
Product View (Switch)
GLBL : Global (Standard)
Product Group
VACON : VACON
Product Series
0100 : VACON 100
Input type
-3L : -3L
Current
-0031 : 31
Current Description
31 AMP
Mains Voltage
-2 : (-2) 208 – 240 Vac
Segment
-X : Vacon 100X
Regional
-R00 : International
Customized
+BM1X : Vacon0100 product
Terminal Box
+TBOX : (+TBOX) Basic Terminal Box
Brake
+DBIN : (+DBIN) Brake Chopper
Frequency setting
+LS60 : (+LS60) 60 Hz
Display Units
+LSSI : Metric Units of Measure
Documentation level
+DQCK : (+DQCK) Quick Guide
Firmware Language Pack
+FL06 : UK, CN, RU, KR language pack
SW Package
+F0072 : (+F0072) GP System Software
EMC level
+EMC2 : C2 Commercial&Industry Environ
Marine Approval
+E000 : (+E000) No Marine Approval
Application
+A1181 : (+A1181) Solar Application
Internal FB selection
+FBIE : IndEth (ProfinetIO,EthernetIP)
Keypad
+HMGR : Graphical Keypad
Real Time Clock Battery
+SRNO : No Battery for real time clock
D Slot Option Board
+SD00 : No board
E Slot Option Board
+SE00 : No board
Additional Equipment A
+Q000 : (+Q000) No add. Equipment A
Additional Equipment B
+Q000 : (+Q000) No add. Equipment B
Additional Equipment C
+Q000 : No add. Equipment C
Shipping Package
+GSCB : Standard Packaging Material
UL Approval
+GAUL : (+GAUL) UL Approval
CE Aproval
+GACE : (+GACE) CE Approval
C-tick Approval
+GACT : (+GACT) C-Tick Approval
KC Approval
+GAKC : (+GAKC) KC Approval
Frame Size
MM5 : MM 05
Product Catalog
NO_VIEW : NO VIEW
Modelcode01
VACON0100-3L-0031-2-X
Modelcode02
+LS60
Modelcode03
+FL06
Modelcode04
+A1181+FBIE+HMGR
Typecode Part 1
VA100X-3L-0031-2-X+BM1X
Typecode Part 2
-000060895
Calculated Net Weight [kg]
14.9
Calculated Gross Weight [kg]
15.65
Dimensions WxHxD [mm]
233X367X214
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Recommended Plant
ERR01
ECCN US
3A999.a
ECCN EU
Y901
Help Counter
1
181B0482
Vacon100 MM6 Main Switch Option
181B0483
CAB-HMI2M-MC05-X
181B0481
Vacon100 MM6 Motor Mount Flange
141F4234
Vacon100 MM6 Auxiliary Frame Heater
141F4176
VACON-PAN-HMGR-MC05-X
141F4278
RTC battery kit 10pcs, OP
141F4222
MC05, MC06 Keypad Wallmounting Kit
