Part Number: 132L6249
Product Information
Extended Description

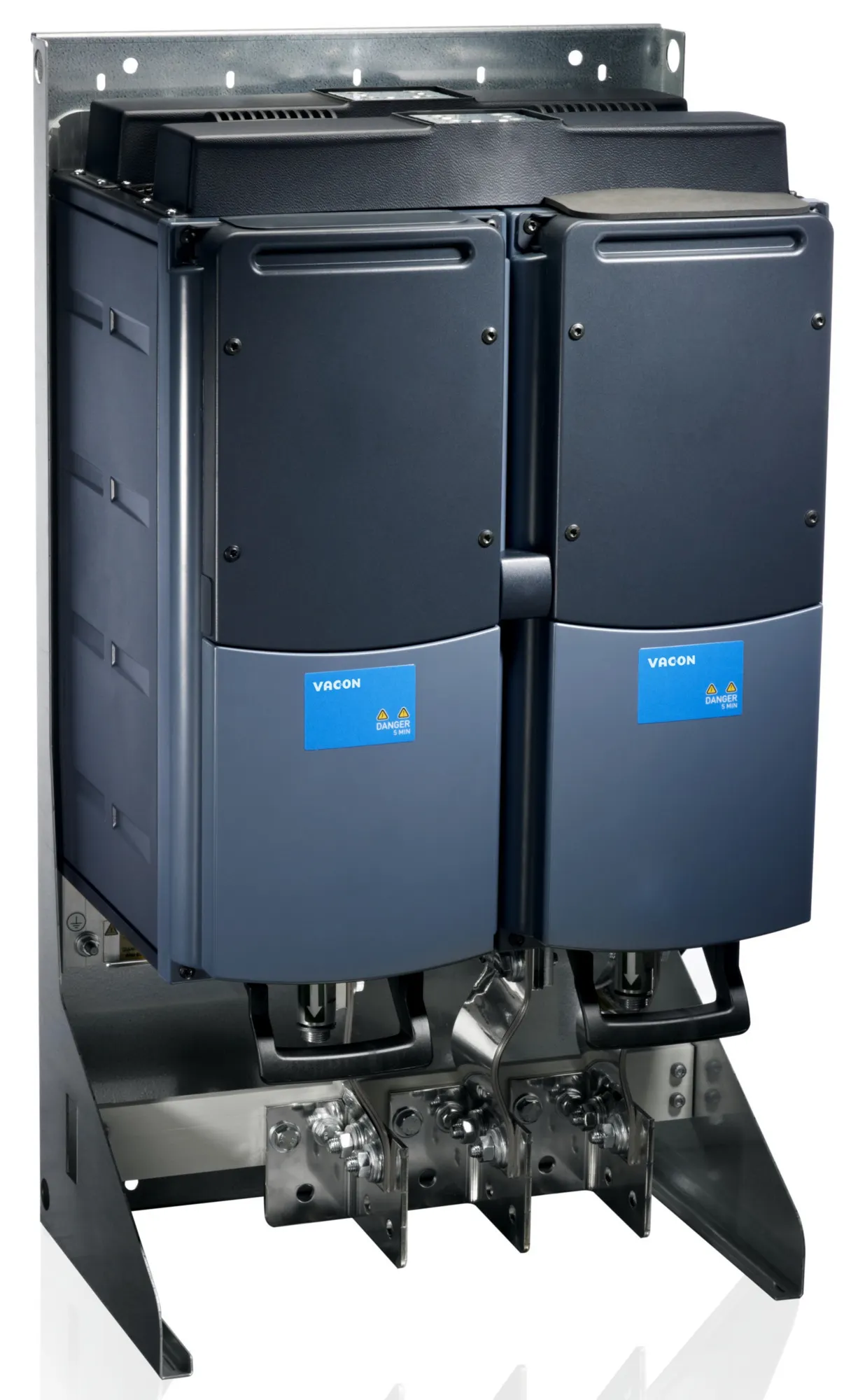

132L6249 Danfoss: NXA11505-A0T02PG-A1B5D700EC+FL23+ARFIFF05+DLDEVacon Active Front-End Unit380 – 500 Vac (465-800 Vdc), 1150 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 3RO(NO)C Slot: Line voltage meas.D Slot: No boardE Slot: EtherCATManual: GermanFrame 63 liquid cooledOther options according to Model code
Gross weight
121 kg
Net weight
120 kg
Volume
0 l
EAN
5714853458004
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXA : Active Front-End Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
P : LiquidCooled w. nickel element
Mains voltage
5- : 380 – 500 Vac (465-800 Vdc)
Current
1150 : 1150 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
2 : AFE module w/o LCL
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
B5 : 3RO(NO)
Option Slot C
D7 : Line voltage meas.
Option Slot D
00 : No board
Option Slot E
EC : EtherCAT
Firmware language package
+FL23 : UK,NL,DE,FR,ITWestEurII
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLDE : German
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+ARFIFF05 : AFE II application NXA,NXI,NXP
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
CH63 : Frame 63 liquid cooled
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DA-115050
Typecode Part 2
-000061075
Salestext
CH6311505-0T
Modelcode01
NXA11505-A0T02PG-
Modelcode02
A1B5D700EC
Modelcode03
+FL23
Modelcode04
+ARFIFF05
Modelcode05
+DLDE
Calculated Net Weight [kg]
120
Calculated Gross Weight [kg]
121
Motor Power Low Overload [kW]
704
Motor Power High Overload [kW]
-
Dimensions WxHxD [mm]
505X923X375
Continuous Current (NO) [A]
1045
Continuous Current (HO) [A]
-
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DA-115050
check if complete
OK
Help Counter
1
Plant from Orderline
D801
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
