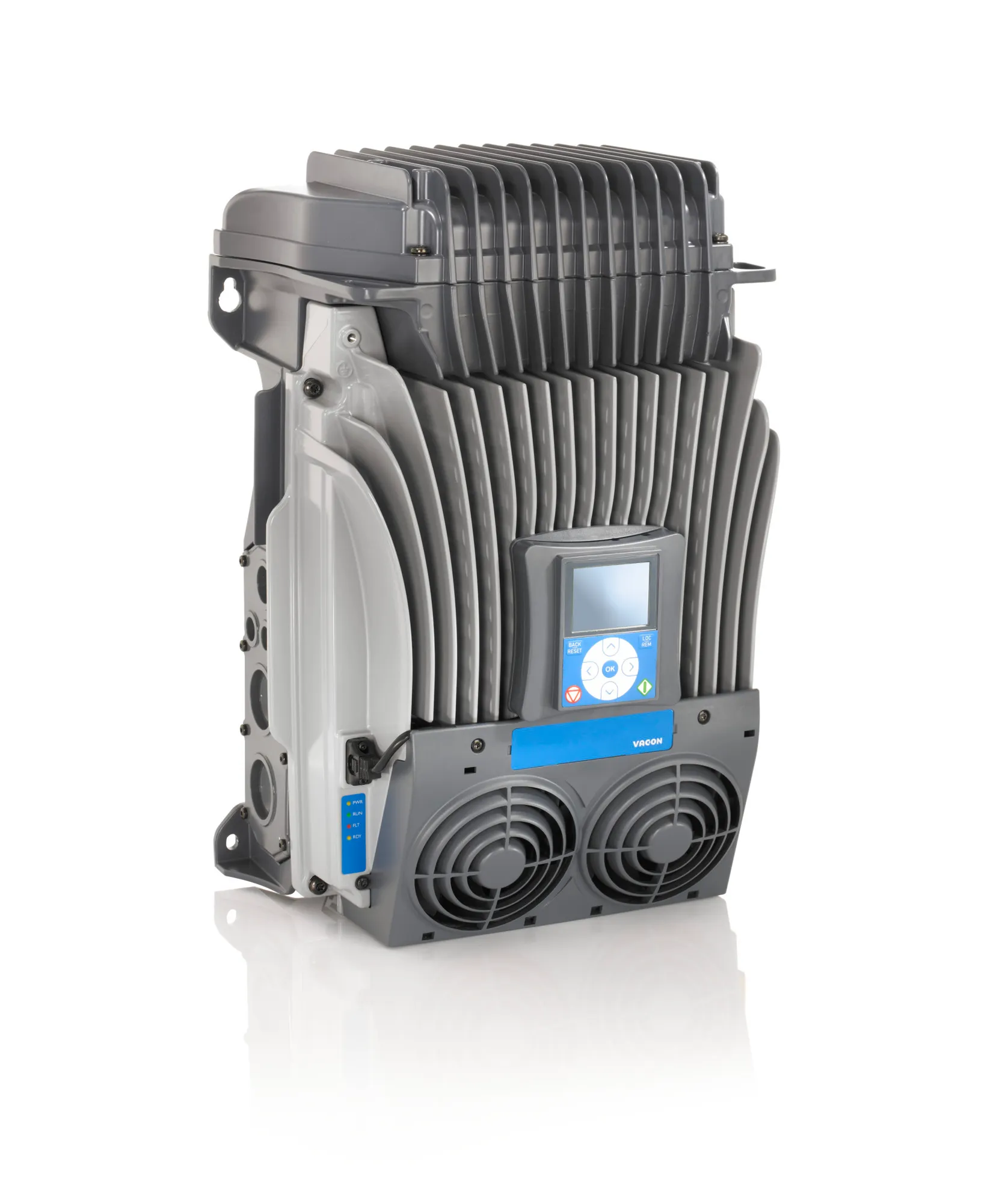

132L8701
Part Number: 132L8701
Product Information
Extended Description
132L8701 Danfoss: VACON0100-3L-0003-5-X+A1133+FBIE+HMGR+QDSSVACON® 100X3,4 AMP, (-5) 380 – 500 Vac(+DBIN) Brake Chopper, (+LS50) 50 HzC2 Commercial&Industry EnvironIndEth (ProfinetIO,EthernetIP), Graphical KeypadD Slot: No boardE Slot: No boardOther options according to Model code
Gross weight
9.55 kg
Net weight
8.8 kg
Volume
0.311 hl
EAN
5714853904068
Product View (Switch)
GLBL : Global (Standard)
Product Group
VACON : VACON
Product Series
0100 : VACON 100
Input type
-3L : -3L
Current
-0003 : 3
Current Description
3,4 AMP
Mains Voltage
-5 : (-5) 380 – 500 Vac
Segment
-X : Vacon 100X
Regional
-R00 : International
Customized
+BM1X : Vacon0100 product
Terminal Box
+TBOX : (+TBOX) Basic Terminal Box
Brake
+DBIN : (+DBIN) Brake Chopper
Frequency setting
+LS50 : (+LS50) 50 Hz
Display Units
+LSSI : Metric Units of Measure
Documentation level
+DQCK : (+DQCK) Quick Guide
Firmware Language Pack
+FL01 : UK, DE, FI, SE, IT, FR lang
SW Package
+F0072 : (+F0072) GP System Software
EMC level
+EMC2 : C2 Commercial&Industry Environ
Marine Approval
+E000 : (+E000) No Marine Approval
Application
+A1133 : (+A1133)Special Application(W)
Internal FB selection
+FBIE : IndEth (ProfinetIO,EthernetIP)
Keypad
+HMGR : Graphical Keypad
Real Time Clock Battery
+SRNO : No Battery for real time clock
D Slot Option Board
+SD00 : No board
E Slot Option Board
+SE00 : No board
Additional Equipment A
+QDSS : (+QDSS) Main Switch only
Additional Equipment B
+Q000 : (+Q000) No add. Equipment B
Additional Equipment C
+Q000 : No add. Equipment C
Shipping Package
+GSCB : Standard Packaging Material
UL Approval
+GAUL : (+GAUL) UL Approval
CE Aproval
+GACE : (+GACE) CE Approval
C-tick Approval
+GACT : (+GACT) C-Tick Approval
KC Approval
+GAKC : (+GAKC) KC Approval
Frame Size
MM4 : MM 04
Product Catalog
NO_VIEW : NO VIEW
Modelcode01
VACON0100-3L-0003-5-X
Modelcode04
+A1133+FBIE+HMGR
Modelcode05
+QDSS
Typecode Part 1
VA100X-3L-0003-5-X+BM1X
Typecode Part 2
-000065181
Calculated Net Weight [kg]
8.8
Calculated Gross Weight [kg]
9.55
Dimensions WxHxD [mm]
191X316X197
Plant from Orderline
C503
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN US
3A999.a
ECCN EU
Y901
Help Counter
1
181B0482
Vacon100 MM6 Main Switch Option
181B0483
CAB-HMI2M-MC05-X
181B0481
Vacon100 MM6 Motor Mount Flange
141F4234
Vacon100 MM6 Auxiliary Frame Heater
141F4176
VACON-PAN-HMGR-MC05-X
141F4278
RTC battery kit 10pcs, OP
141F4222
MC05, MC06 Keypad Wallmounting Kit
