132L9545
Part Number: 132L9545
Product Information
Extended Description

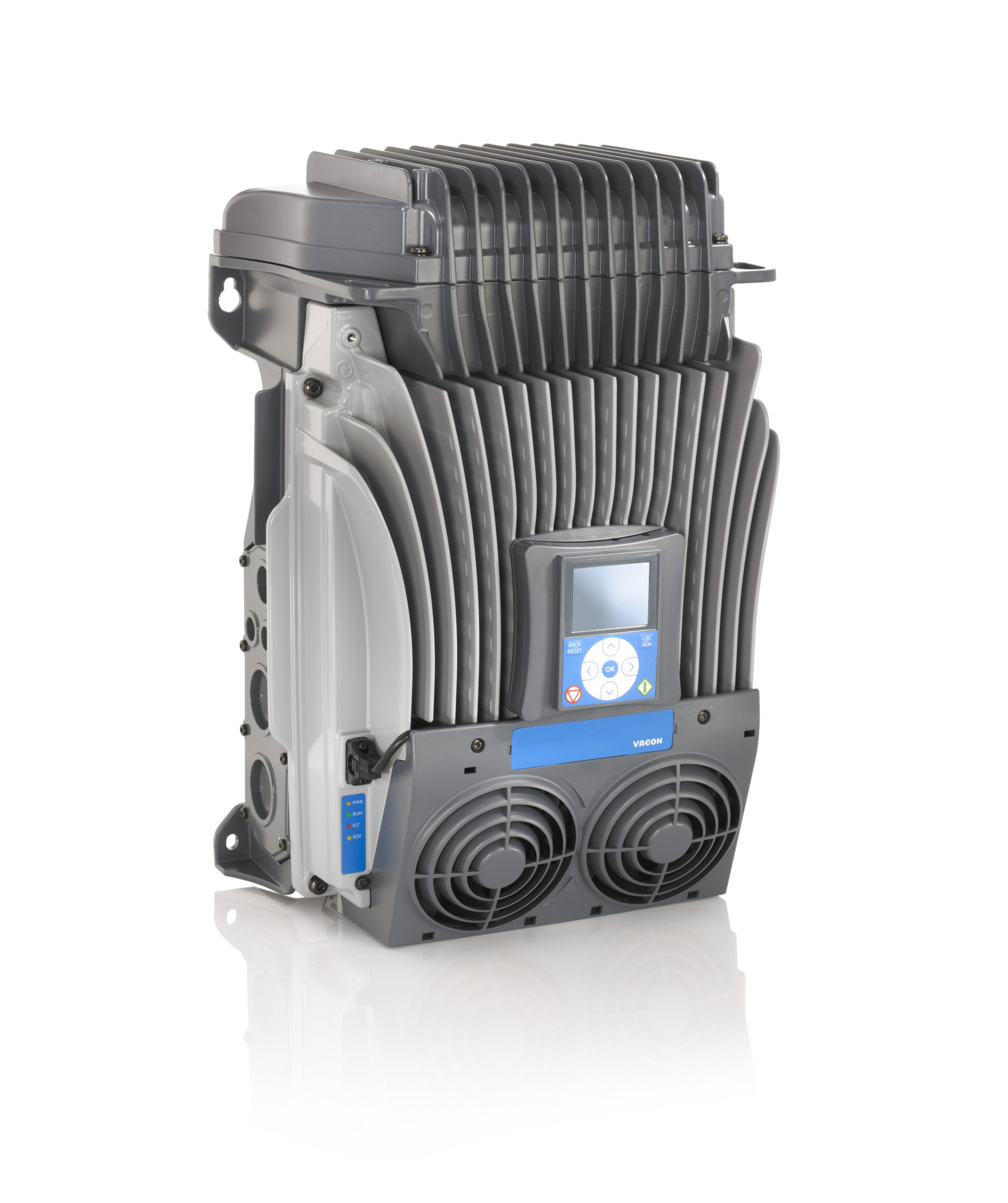

132L9545 Danfoss: Frequency converterVACON0100-3L-0820-5-ED+SBF4+IP54+EMC4+FL03+DINS+CAPU+CAPD+CIFD+CAMH+GNULVACON 100 Industrial380-500 Vac, 820 Amp, IP54/NEMA12Graphical Keypad MK01EMC C4 System ComponentB Slot: F4,2 Relay board with thermC Slot: No boardD Slot: No boardFieldbus: Std protocol,Modbus,N2,BacNetManual: English2xFrame 10E Slot: No boardOther options according to Model code
Gross weight
621.6 kg
Net weight
620.6 kg
Volume
0 l
EAN
5715253002309
Product View (Switch)
GLBL : Global (Standard)
Segment
NONE : VACON 100 Industrial
Region Code
-R00 : R00 International
Mains voltage
-5 : 380-500 Vac
Current rating
-0820 : 820 Amp
Installation options
-ED : ED Enclosed Drive
Enclosure
+IP54 : IP54/NEMA12
Control panel
+HMGR : Graphical Keypad MK01
EMC emission limit category
+EMC4 : EMC C4 System Component
Common mode filter (for DM)
+P000 : No Option
DUT filter (for DM)
+P000 : No Option
Brake chopper
+DBNO : No dynamic braking device
Real time clock option
+SRNO : No Battery for real time clock
Configurable power range
NONE : None
Power connections
+P000 : No Power options (+P000)
Cable entry
+Q000 : No option
Additional Equipment B
+Q000 : No option for Qxxx_B (+Q000)
Additonal Equipment C
+Q000 : No additonal option for Qxxx_C
Shipping package
+GSWP : Wooden box as shipping pack
Marine construction
+E000 : no option
B-Slot Option Board
+SBF4 : F4,2 Relay board with therm
C- Slot Option Board
+SC00 : No board
D-Slot Option Board
+SD00 : No board
E-Slot Option Board
+SE00 : No board
Internal FB selection
+FBM1 : Std protocol,Modbus,N2,BacNet
Documentation level
+DINS : Installation manuals
Document language preference
+DLUK : English
Firmware Language Pack
+FL03 : UK, ES, FR, IT, NL, PT lang
Application
+A0000 : No Application
Parameter Set
+L0000 : No application parameter set
Motor parameter default freq
+LS50 : 50 Hz def motor freq settings
Unit for measure for display
+LSSI : Metric Units of Measure
Labeling options
+LPC1 : no additional labels
UL approval
+GNUL : No Ul Approval (+GNUL)
Marine approval
NONE : None
RCM Approval
+GACT : RCM Approval N16307
KC approval
+GAKC : KC Approval
Ukrainian approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Auxilary power supply
+CAPU : Terminals for aux power supply
DC power supply for aux device
+CAPD : 24V DC power supply
AC socket for aux devices
+C000 : no option
Input Devices
+CIFD : (+CIFD) Fuse Switch
Common mode filter (for ED)
+P000 : no option
DU/DT, Sine filter (for ED)
+P000 : no option
Terminal Options
+CTIO : I/O Terminals
Door Equipments
+C000 : no option
Cabinet heater
+C000 : no option
Cabinet light
+C000 : no option
Motor heater control
+CAMH : Motor heater control
Emergency stop options
+C000 : no option
Insulation fault sensor
+C000 : no option
Cabling from top
+C000 : no option
Back channel cooling
+C000 : no option
Cabinet Plinth
+CHPL : Base plint 100 mm
Empty extension segment
NONE : None
Standardized cabinet solution
NONE : None
Engineered cabinet solution
NONE : None
Product Group
VACON : VACON
Product Series
0100 : Vacon 100 series
Phase
-3L : 3 Phase AC Input
Customized
+BM26 : Vacon 100
Main Circuit
+M000 : NONE
Firmware
+F0072 : Vacon0100 Software package
Max output frequency
NONE : None
Terminal Box
+T000 : NONE
Bypass Control Operation Mode
NONE : none_
Bypass Input Type
NONE : none_
Bypass power connection type
NONE : none_
CE approval
+GACE : CE Approval (+GACE)
ATEX Approval
NONE : None
County Specific Approval
NONE : None
Warrenty time
+WT01 : Warranty 12/18 months (+WT01)
Frame Size
MR12 : 2xFrame 10
Product Catalog
NO_VIEW : NO VIEW
Modelcode01
VACON0100-3L-0820-5
Modelcode02
-ED+SBF4+IP54+EMC4+FL03+DINS
Modelcode03
+CAPU+CAPD+CIFD+CAMH+GNUL
Calculated Net Weight [kg]
620.6
Calculated Gross Weight [kg]
621.6
Motor Power Low Overload [kW]
450
Motor Power High Overload [kW]
400
Dimensions WxHxD [mm] net
1206 X 2155 X 639
Dimensions WxHxD [mm] Gross
1355 X 2440 X 800
Continuous Current (NO) [A]
820
Continuous Current (HO) [A]
730
Motor Power HP Low Overload
700
Motor Power HP High Overload
600
Typecode Part 1
70-AB3L08205C12B540BM26
Typecode Part 2
-000066382
check if complete
OK
Plant from Orderline
D801
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Help Counter
30
Method
HORIZONTAL
Sub family identification
NONE : Normal customer ordered
ECCN US
3A999.a
ECCN EU
Y901
181B0482
Vacon100 MM6 Main Switch Option
181B0483
CAB-HMI2M-MC05-X
181B0481
Vacon100 MM6 Motor Mount Flange
141F4234
Vacon100 MM6 Auxiliary Frame Heater
141F4176
VACON-PAN-HMGR-MC05-X
141F4278
RTC battery kit 10pcs, OP
141F4222
MC05, MC06 Keypad Wallmounting Kit
